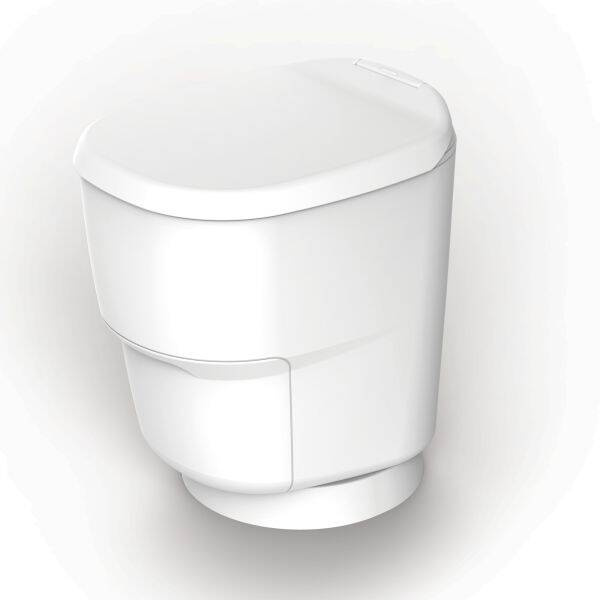

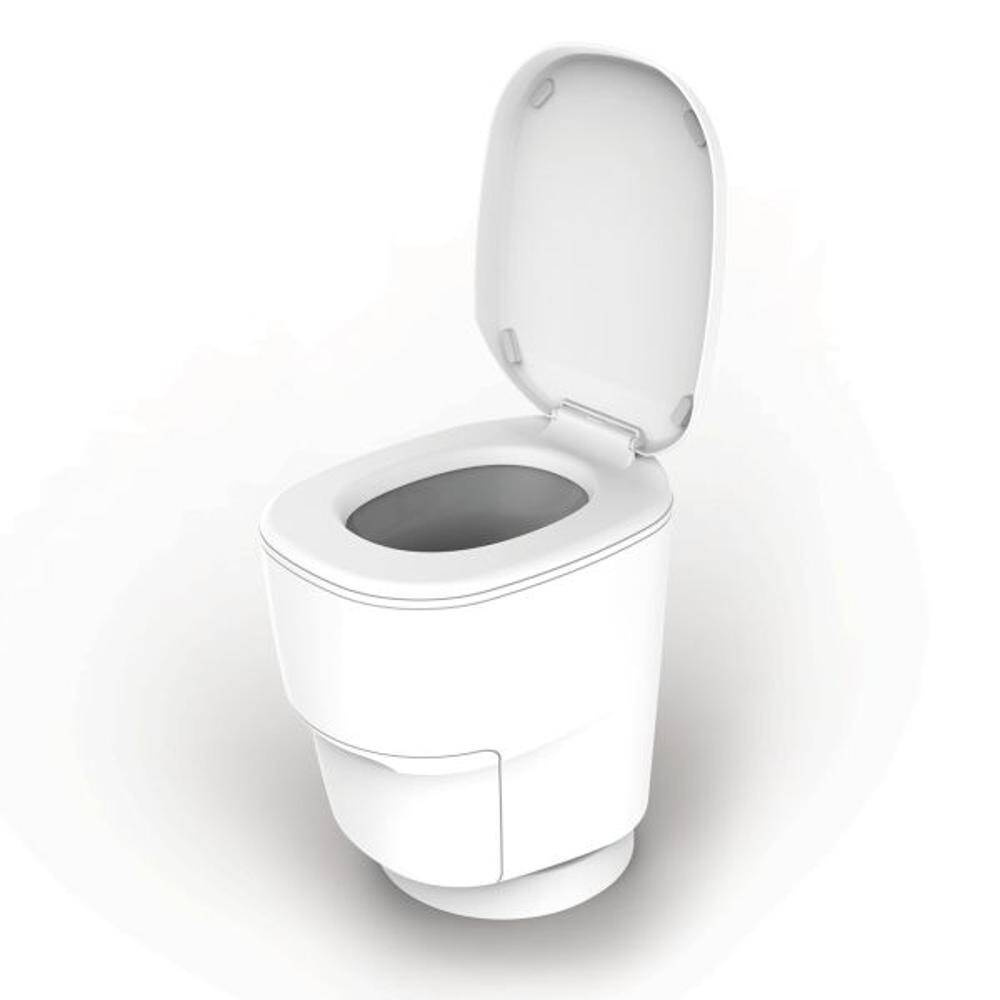

Clesana C1 waterless sealing toilet with round base - seals waste in film bags, 12 V, for motorhomes and caravans
- Clesana C1 waterless toilet with round base: seals waste in barrier film bags, no water or chemicals. 12 V, standby 0.28 W, 515 x 363 x 461 mm, seat height 478 mm.
Clesana C1 is a waterless toilet for motorhomes and caravans that, at the push of a button, automatically seals waste in a tight bag made of barrier film. It needs no water and no sanitary additives, and the sealed bags go into residual waste. This version has a round base for free placement in the room. Power supply 12 V.
How it works
- press the flush button (small or large) and the waste is automatically sealed in a film bag
- the bags drop into a drawer that holds 6 single bags (2 bag chains of 3 bags)
- the system lines the bowl with new film for the next use
- a counter on the display shows how many uses remain on the inserted film liner
- optional super absorber binds liquids

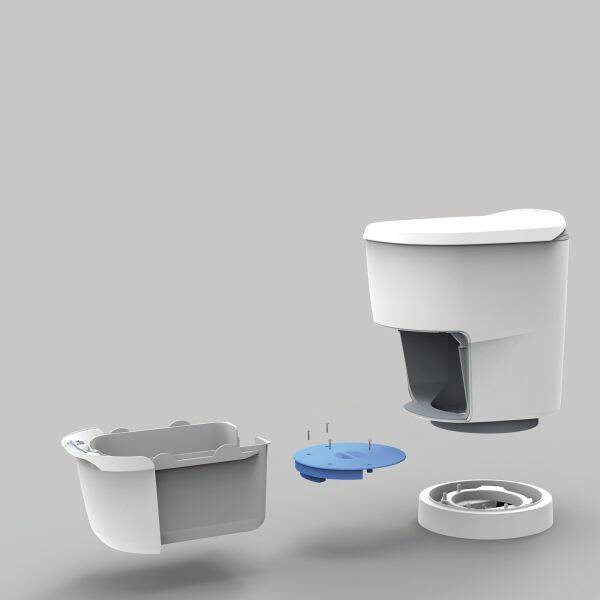

Mounting on the round base
- the toilet is screwed to the floor via the base
- a rotation disc between body and base lets the toilet turn by up to 180°
- with the round base keep 225 mm from the rotation axis to the rear and side walls so the lid opens in every position
- the control panel can be relocated and integrated into bathroom furniture
- removal is done by releasing the rotation disc
12 V power
- rated voltage 12 V, supply range 11.8-15 V
- current draw up to 22 A short-term, maximum power 265 W
- standby 0.28 W
- sealing uses 0.55 Wh, separating the bag chain 1.7 Wh
- connection via isolating switch or relay with a 30 A fuse; Anderson SB50 connector
- cable cross-section: up to 8 m - 10 mm², over 8 m - 16 mm²
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Clesana AG (Switzerland) |
| Model | C1 with round base |
| Manufacturer code | EU-10010010 |
| Type | waterless toilet sealing waste in film |
| Dimensions (H x W x L) | 515 x 363 x 461 mm |
| Seat height | 478 mm |
| Weight (with round base) | 13.1 kg |
| Load capacity (body and lid) | 150 kg |
| Rated voltage | 12 V |
| Supply voltage range | 11.8-15 V |
| Current draw (max., short-term) | 22 A |
| Maximum power | 265 W |
| Standby power | 0.28 W |
| Energy per sealing | 0.55 Wh |
| Energy per bag separation | 1.7 Wh |
| Drawer capacity | 6 bags / 2 bag chains |
| PTFE band lifetime | 1500 sealings |
| Protection rating | IPX4 (splash water protection) |
| Usage temperature | 0-45°C |
| Rotation | up to 180° |
| Fuse | 30 A |
| Material | ABS |
| Colour | white |
| EAN | 7649989633019 |
Questions and answers
Does the toilet need water or chemicals?
No. Waste is sealed in a barrier film bag, without water or sanitary additives.
Where do the sealed bags go?
Into residual waste unless local rules say otherwise. The bags must not go into organic waste.
Does it run on 230 V?
The manufacturer specifies a 12 V supply. Operation from 230 V mains is only possible with a special power supply.
How does it differ from the L-adapter version?
The round base is for free placement in the room. The L-adapter is for replacing Thetford C220/C260 cassette toilets.
What is included?
C1 toilet with round base, one barrier film liner and one pack of super absorber.
Manufacturer
Clesana AG, Werdenstrasse 72, CH-9472 Grabs, Switzerland. The toilet is made in Switzerland.
