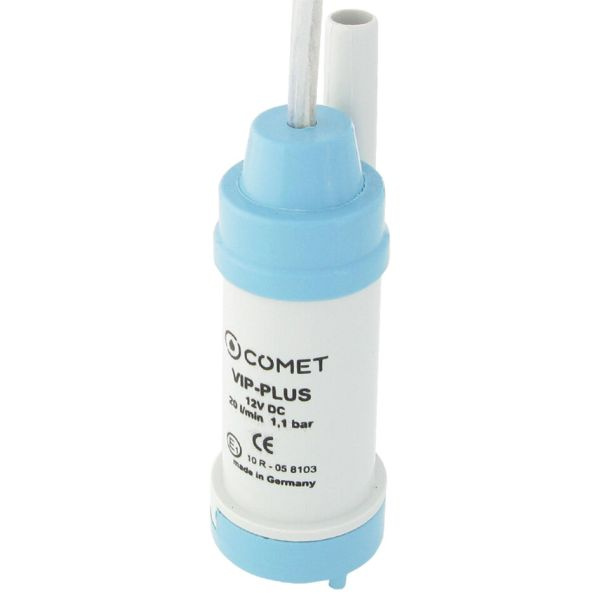

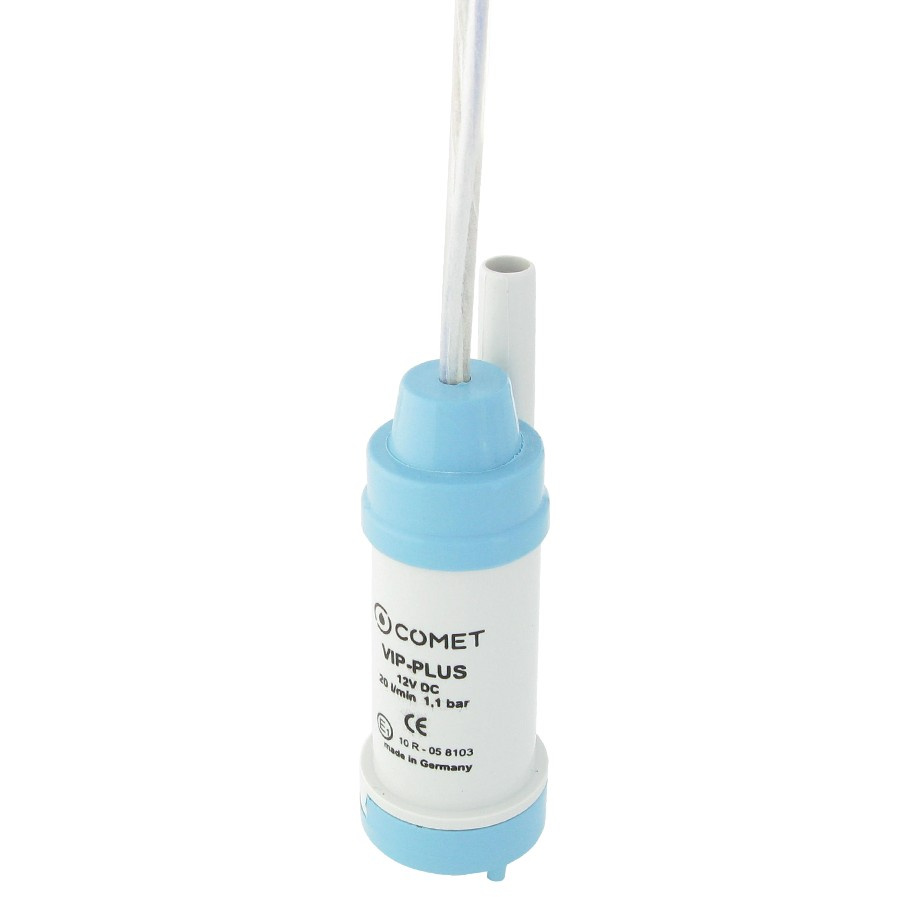

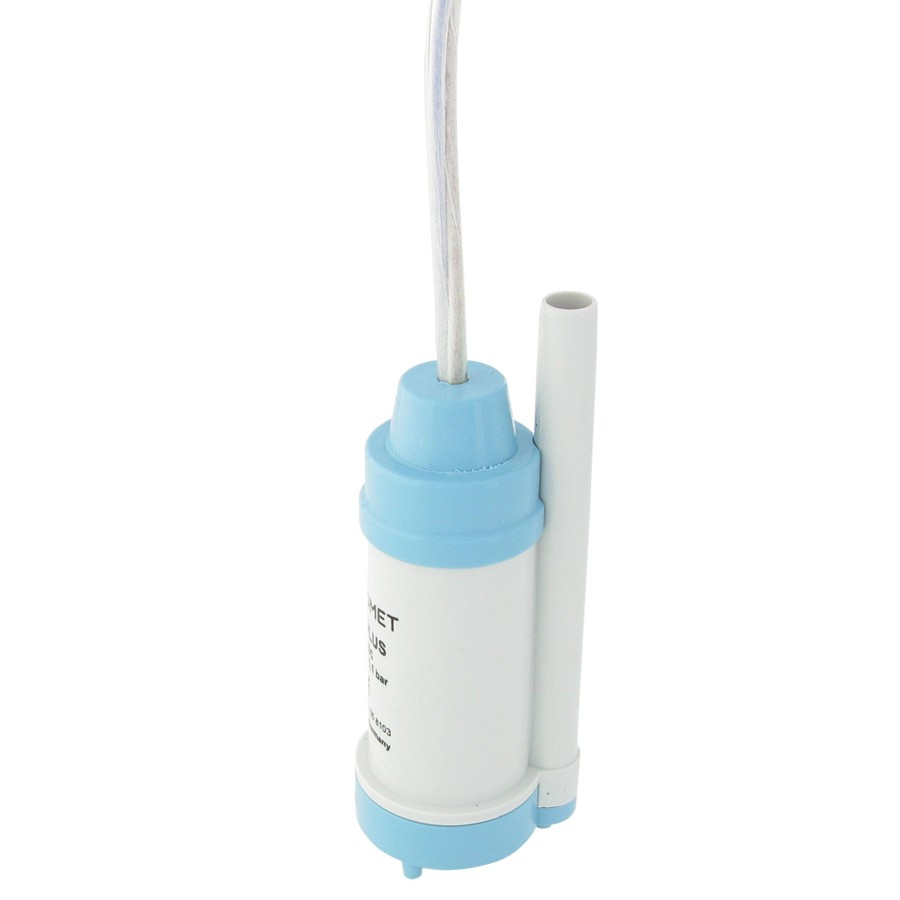

Comet VIP-PLUS submersible pump 12 V - 20 l/min, 1.1 bar, drinking water, 10 mm hose, for motorhomes and caravans
- Comet VIP-PLUS 12 V submersible pump for drinking water in motorhomes, caravans and boats. Up to 20 l/min, up to 1.1 bar, delivery height up to 11 m, current up to 3.8 A. Diameter 48 mm, height 123 mm, 10 mm hose, 1 m cable.
The Comet VIP-PLUS is a 12 V submersible pump for the water supply of motorhomes, caravans and boats. It goes straight into the water tank or canister and connects to a hose with a 10 mm inner diameter. It delivers up to 20 l/min at up to 1.1 bar, and with a 48 mm diameter it fits the openings of standard water tanks.
Output and power supply
- throughput up to 20 l/min
- delivery height up to 11 m, pressure up to 1.1 bar (16 psi)
- 12 V DC, current up to 3.8 A, power 35-45 W
- 1 m cable: plus brown, minus blue
Safe operation
- for clean water up to 60 °C, including drinking water
- can run dry for up to 30 minutes without damage
- suitable for continuous operation, running time 450-500 hours
- CE marking
Fitting in the tank
- diameter 48 mm, height 123 mm
- for hoses with a 10 mm inner diameter
- expandable with a non-return valve, vent connection and filter
- other cable lengths are available from the manufacturer on request
Package contents
- Comet VIP-PLUS 12 V submersible pump with 1 m cable
Matching accessories and other Comet pumps
- Non-return valve 10 mm for Comet submersible pumps
- Comet non-return valve with venting for submersible pumps
- Fine fibre filter for Comet pumps, 10 mm hose
- Comet cap 80 mm DIN 96 with cut-out for a submersible pump
- Comet Ocean submersible pump 12 V, 21 l/min
- Comet Lux-Plus submersible pump 12 V, 19 l/min
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | COMET-Pumpen (Germany) |
| Model | VIP-PLUS 12 V |
| Voltage | 12 V DC |
| Current | max. 3.8 A |
| Power | 35-45 W |
| Throughput | max. 20 l/min |
| Delivery height | max. 11 m |
| Pressure | max. 1.1 bar (16 psi) |
| Diameter / height | 48 / 123 mm |
| Hose connection | 10 mm inner diameter |
| Cable | 1 m, plus brown, minus blue |
| Water temperature | max. 60 °C |
| Dry running | up to 30 minutes |
| Running time | 450-500 hours |
| Drinking water | yes |
Questions and answers
Is the pump suitable for drinking water?
Yes. The manufacturer designed it for clean water up to 60 °C, including drinking water.
What happens if the tank runs empty?
The pump can run dry for up to 30 minutes without damage. Then it must be switched off.
Which hose fits the pump?
A hose with a 10 mm inner diameter.
Will it fit the opening of my tank?
The pump is 48 mm in diameter and 123 mm high. Check the opening of your tank or canister.
Can I add a non-return valve?
Yes. The manufacturer provides for a non-return valve, vent connection and filter.
Manufacturer
COMET-Pumpen Systemtechnik GmbH & Co. KG, Industriestraße 5, 37308 Pfaffschwende, Germany.
