Trelino Origin S composting separation toilet anthracite with wooden lid, 3.5 l / 6 l, no water or chemicals
- Trelino Origin S separation toilet in anthracite: 3.5 l urine canister, 6 l solids container, 5.4 kg. No water, chemicals or power. PE body, birch lid held by magnets. For: van and tent.
The Trelino Origin S is a robust composting (separation) toilet with a wooden lid that separates urine and solids without water, chemicals or electricity. The body and containers are made of PE, which resists acids and chemicals, and the lid of multi-layer untreated birch is held in place by magnets. The urine canister holds 3.5 l, the solids container 6 l, and the toilet weighs 5.4 kg. Size S is a good fit for van and tent. Made in Germany.
Key features
- Separates urine and solids - no water, chemicals or electricity
- Urine canister 3.5 l (approx. 7-10 uses) and solids container 6 l (approx. 5-7 uses)
- Net weight 5.4 kg
- Dimensions 34.5 x 28.5 x 40.0 cm (W x H x D)
- Lid of multi-layer birch, waterproof glued, held by magnets
- PE body and containers - resistant to acids and chemicals
- Body colour: anthracite
- Load capacity 150 kg, made in Germany
- Tinted urine canister - the fill level is still visible
How a separation toilet works
The separator insert guides urine into the front canister, while solids and toilet paper go into the rear container lined with a bag. Separating the two and letting the solids dry out prevents unpleasant odours - so the toilet needs no flushing water and no chemicals. After each number two, cover the solids with one or two handfuls of litter. Litter supports drying and binds odours.

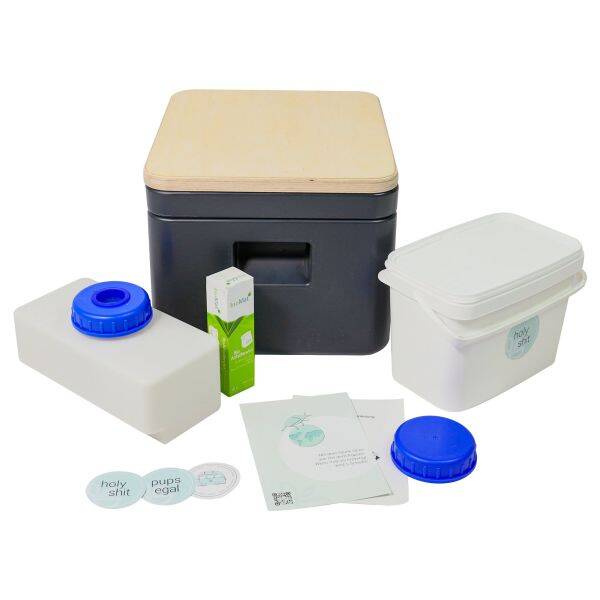

Scope of delivery
- Body with birch wood lid
- Separator insert with seat
- Black solids container with lid
- Urine canister 3.5 l with a spare lid with membrane closure
- Bags for solids (10 pcs according to the manufacturer)
- Instruction manual
A fan is not included.
Where the Trelino Origin S fits
The manufacturer recommends size S for van and tent. The toilet can be used free-standing or permanently installed - mounting may require drilling into the body. Always make sure it stands firmly and cannot tip over. The wooden lid is only partly suitable for damp environments - it works best in dry or occasionally damp places.
Before you order
- Check the space: 34.5 x 28.5 x 40.0 cm (W x H x D).
- Fan: this model is not designed for a fan - the manufacturer does not provide for one at this size.
- Approximate emptying cycle according to the manufacturer: 1-2 days.
- Use the Origin series only in a sitting position - this applies to men too.
- Maximum load: 150 kg.
- Wood is a natural material - colour and grain of the lid may vary.
Use and emptying
- Before first use, put a bag in the solids container and add two handfuls of litter.
- After a number two, cover solids and paper with a handful of litter; do not use moist toilet paper.
- Tie the full bag and put it in the household waste. Pour urine into a toilet connected to the sewer.
Cleaning and care
- For cleaning, the manufacturer recommends vinegar diluted with water (1 part vinegar to 7 parts water) or pH-neutral cleaners with effective microorganisms, such as Holy Shine.
- Rinse the urine canister with the solution after every emptying to prevent deposits and odours.
- Do not use chemical cleaners, solvents or abrasive sponges; the parts are not dishwasher-safe.
- You can treat the untreated birch lid with linseed oil, varnish it or paint it. If the toilet is not used for a longer time, leave the lid open.
Compare the sizes of the Origin series
Size L has the longest emptying cycle and a normal seat height, M suits installation on a platform, and S and XS are the most compact. Need a lighter toilet for damp rooms? See the Evo series, e.g. the Trelino Evo S anthracite.
- Trelino Origin XS - urine 4.5 l, solids 6 l
- Trelino Origin M - urine 5 l, solids 6.5 l
- Trelino Origin L - urine 10 l, solids 10 l
Accessories and spare parts
- Trelino recycling bags 18 l, 10 pcs - for lining the solids container
- Trelino compostable bags 10 l - if you want to compost the contents
- Trelino conifer fibre litter 7 l and scent blocker litter 20 l - for covering solids
- Holy Shine Bio Active 500 ml spray - for cleaning the toilet
- Spare membrane closure, set of 2 - replace every 2-3 months
- Urine canister lid with membrane closure
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Trelino® (Camper Active GmbH) |
| Series / model | Origin S |
| Manufacturer part number | T1-02002 |
| Colour | Anthracite (body), birch wood lid |
| Dimensions (W x H x D) | 34.5 x 28.5 x 40.0 cm |
| Net product weight (manufacturer data) | 5.4 kg |
| Urine canister | 3.5 l (approx. 7-10 uses) |
| Solids container | 6 l (approx. 5-7 uses) |
| Emptying cycle (manufacturer) | 1-2 days |
| Material | PE body and containers, multi-layer birch lid |
| Fan | not provided for |
| Load capacity | 150 kg |
Questions and answers
Does the toilet need water, chemicals or electricity?
No. The toilet separates urine and solids, and the solids dry under the litter. There is no flushing, no chemical cassette and no power supply.
How often do the containers need emptying?
The 3.5 l urine canister holds approx. 7-10 uses and the 6 l solids container approx. 5-7 uses. The manufacturer gives an approximate emptying cycle of 1-2 days; the urine canister is ideally emptied every 2-3 days.
What should I cover the solids with?
Ideally with composting toilet litter. The manufacturer also allows small animal litter, organic cat litter, coconut fibre, fine bark mulch, hemp or wood pellets.
Do I need a fan?
This model is not designed for a fan - the manufacturer does not provide for one at this size.
Can the toilet be used standing up?
No. The Origin series is used only in a sitting position - this applies to men too, so that separation works properly.
Manufacturer
Camper Active GmbH, Duisburger Str. 19, 40477 Düsseldorf, Germany.
