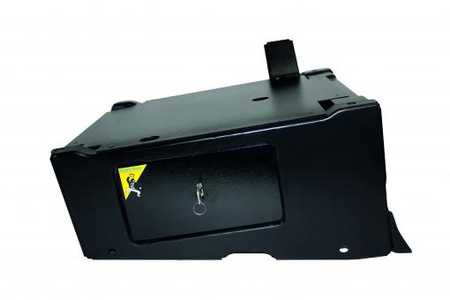

Console safe Sprinter with box W 200 x H 95 x D 135 mm

Installation instructions for the Mercedes Sprinter passenger console

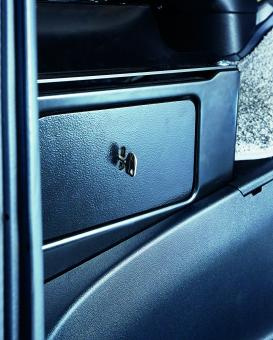

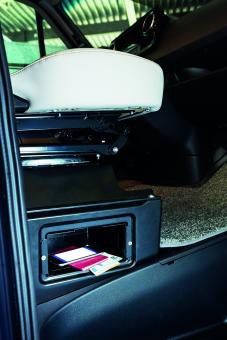

The safe box is installed in the standard opening on the side of the seat console. It is important that the box is inserted into the console with the narrow recess facing upwards (see image).

Then, securely fasten the box to the console using the supplied screws and nuts. The necessary holes are already pre-drilled in the console and do not need to be drilled separately. Now you can insert the door into the console using the rear handle bracket attached at the bottom, close the door, and lock it with the key. The installation is now complete, and you can use the safe. External dimensions: W 200 mm / H 95 mm / D 135 mm (Depth of the safe is always opposite the door) Internal dimensions: W 195 mm / H 90 mm / D 130 mm Door opening dimensions: W 200 mm / H 95 mm Weight: 3.0 kg Scope of delivery: 1 safe door, drawer box, mounting hardware, and installation instructions. Made in Germany. Security level A according to VDMA 24992 (May 1995).
