Conversion kit for Thetford C250/C260 to cassette toilets
Conversion kit for Thetford C250/C260 to cassette toilets Arwinger
No water, no chemicals, but 100% comfort: Arwinger cassette toilet

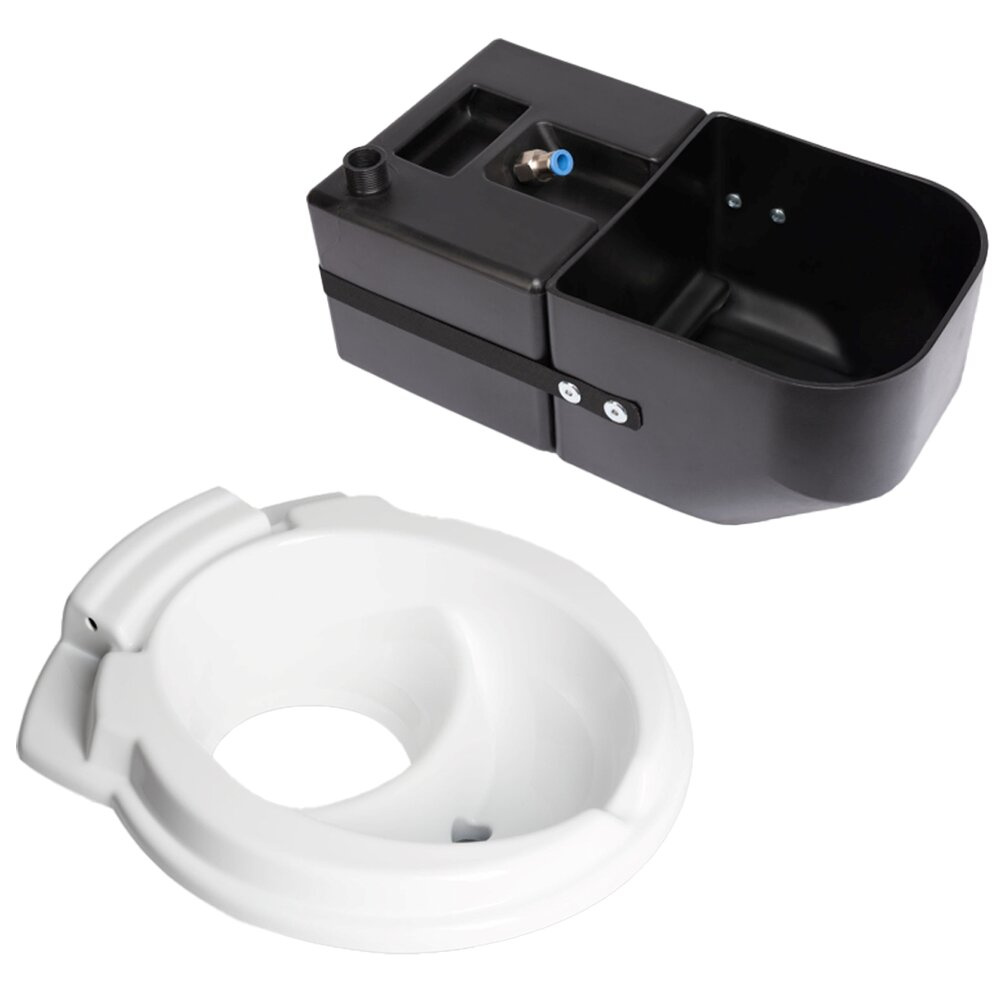

With the Arwinger cassette toilet kit you can turn your Thetford chemical toilet from the C250/C260 series into a separation toilet. Benefit from all the advantages of the separation toilet without having to forego the comfort and design of your built-in cassette toilet and, above all, the convenient and practical removal via the service hatch.
The upper part of the bowl of your chemical toilet is replaced by the Arwinger cassette separation toilet kit seat part. The conversion can be carried out by yourself using the instructions provided without any specialist knowledge. The seat part ensures the separation of solids and liquids.

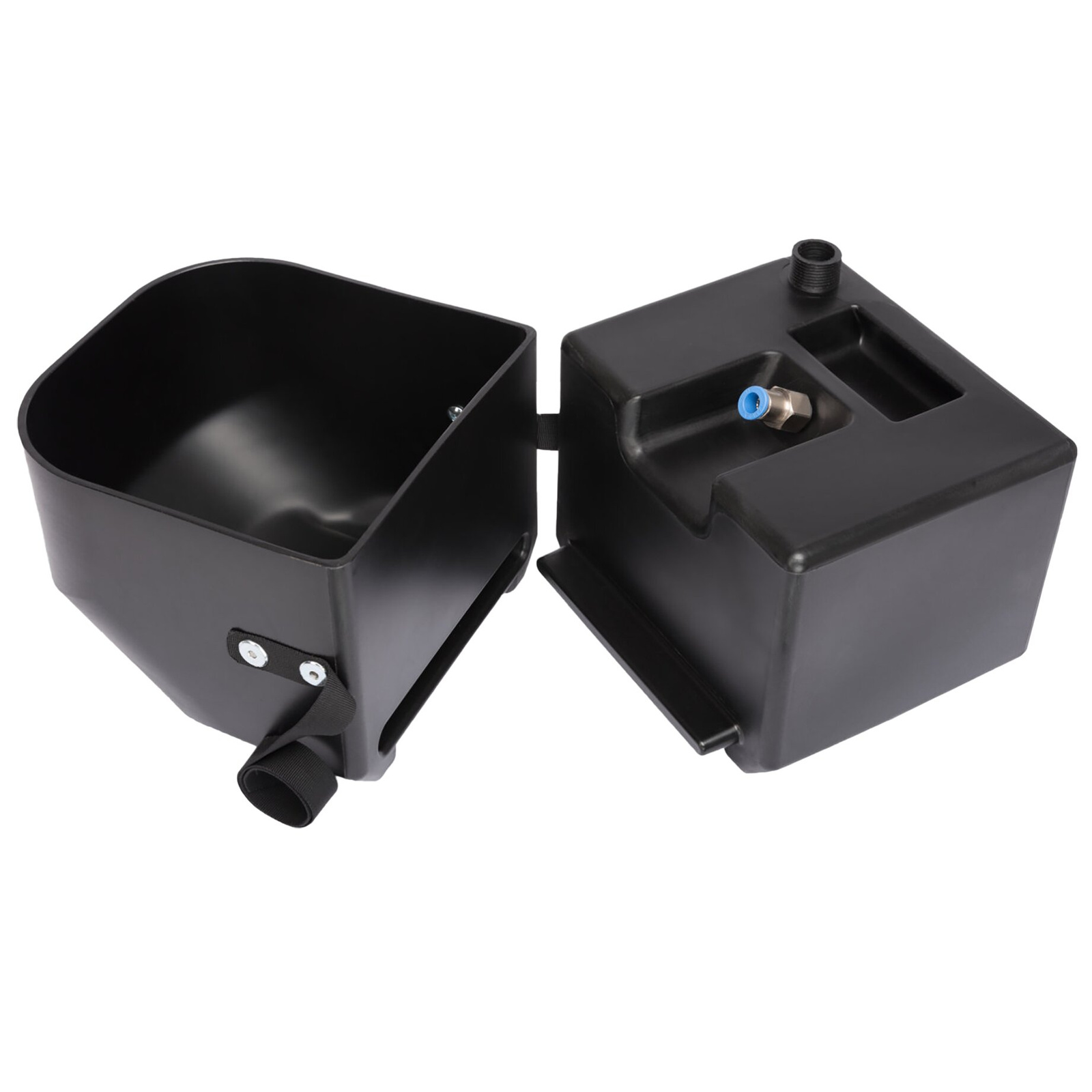

Both are collected by the Arwinger cassette separation toilet kit cassette, which is positioned in the service compartment and replaces the Thetford chemical cassette one-to-one. The solids fall into the open container of the cassette, which is provided with a bag, and the liquid is fed into the cassette tank via the hose. Both cassette parts can be separated for emptying. The container for the solids has a volume of approx. 9 liters, the one for the liquid approx. 7.7 liters. The fill level of the liquid tank can be read using an optical fill level indicator.
After converting the bowl, the seat and lid of the chemical toilet are attached to the new seat part and your Thetford toilet looks as good as before.
- professional, complete conversion kit
- for easy and quick DIY conversion
- precisely designed for your chemical toilet model
- Seat part produced using deep-drawing technology for high quality and high-quality surface
- separate solid and liquid containers to be emptied
- The design and rotatability of the chemical toilet as well as the appearance and sealing in the bathroom are retained
- can be completely dismantled if necessary
Technical data:
seat part with separating function
- Material: ABS/PMMA plastic
- Color: white
- Dimensions (W x D x H): 390 x 430 x 150 mm
- Inner diameter: lengthwise approx. 305 mm, crosswise approx. 255 mm
- Inner diameter of solids outlet: 160 mm
- Weight: 1025 g
cassette
- Material: Polyethylen
- Color: black
- Dimensions (W x D x H): 250 x 500 x 250 mm
- Weight: 1985 g
Scope of delivery:
seat part with separating function
- seat part, ABS/PMMA, PVC
- cuff, silicone
- cuff fastening, PETG, polyamide
- hose connection, brass
- urine tube, PVC
- ball valve, PP
- mounting pins, PETG
- conversion instructions
cassette
- Cassette, PE, PA6, PVC, POM, brass; incl. hose connector, POM; incl. tensioning belt, polyester
- cap, PVC, PETG
- Raste, PETG
- Plug, PETG; Plug holder, EPDM
- operating instructions
