Dimatec 025 SML001 LED side marker light - amber, oval, with reflector, 12 V, for caravans and motorhomes
- Amber LED side marker light Dimatec 025 SML001 with integrated reflector, 12 V, 1 W. Oval housing 124 x 45.5 x 14 mm for surface mounting, weight 35 g.

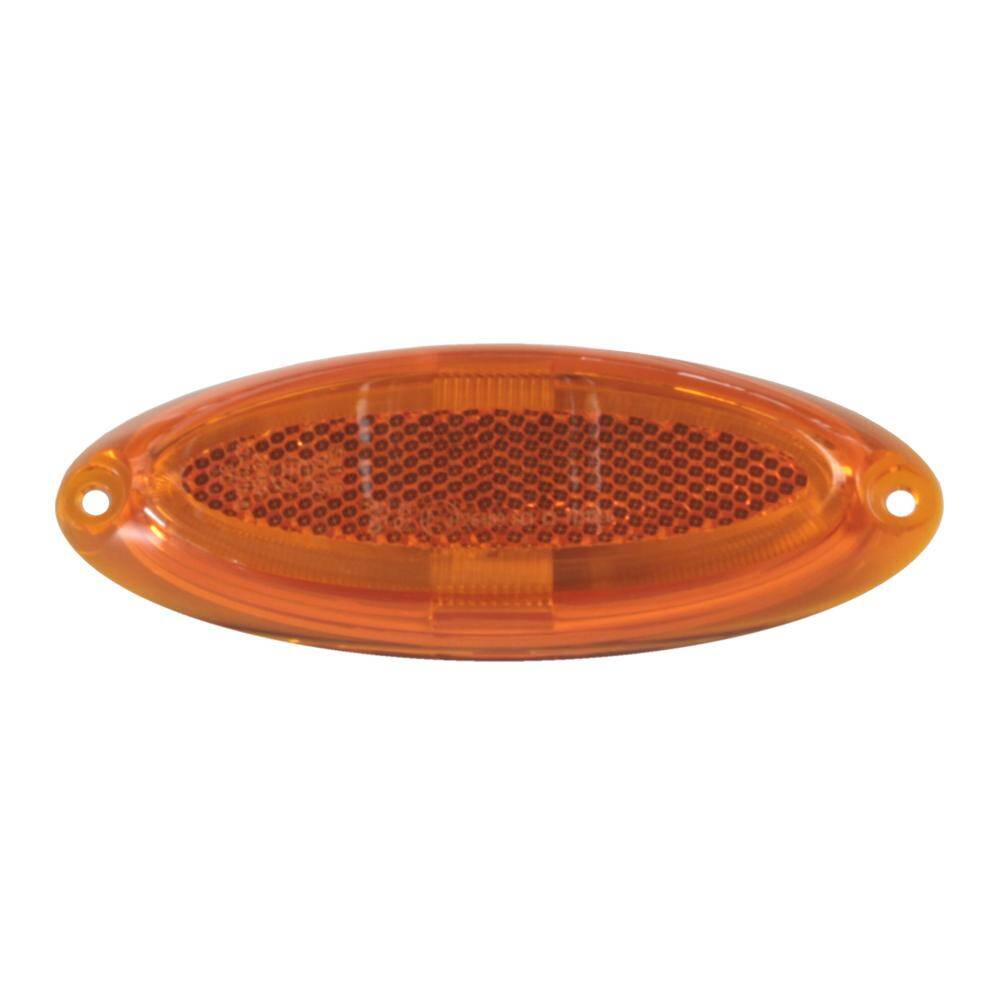

Dimatec 025 SML001 is an amber LED side marker light with an integrated reflector, for caravans, motorhomes and other vehicles with a 12 V system. The oval housing measures 124 x 45.5 x 14 mm and the lamp draws 1 W.
Light with reflector
- side marker light, amber
- reflector integrated in the lens
- light source: LED
- oval housing 124 x 45.5 x 14 mm
- net weight 35 g
Light Guide series

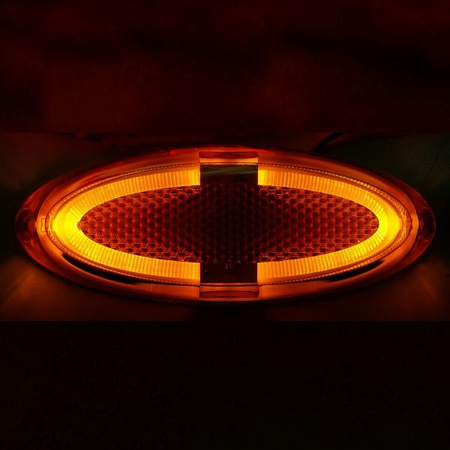

The lamp belongs to the manufacturer's Light Guide series: the LED light is guided around the reflector, so when switched on it shows a continuous contour.
- rated voltage: 12 V DC
- rated power: 1 W
Mounting

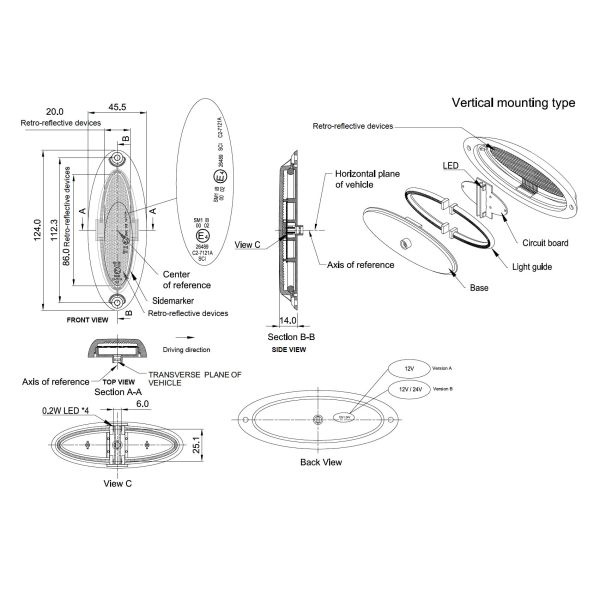

Surface mounting: the housing is screwed to the vehicle wall through the two holes at its ends. Dimensions according to the manufacturer's technical drawing: length 124 mm, height 45.5 mm, depth 14 mm.
The drawing shows the markings E4, SM1 and IB.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Dimatec (Italy) |
| Model | 025 SML001 |
| Type | side marker light with integrated reflector |
| Light colour | amber |
| Series | Light Guide - light guided around the reflector |
| Light source | LED |
| Rated voltage | 12 V DC |
| Rated power | 1 W |
| Dimensions (L x H x D) | 124 x 45.5 x 14 mm |
| Mounting | surface-mounted, 2 screws |
| Net weight | 35 g |
| Markings on the manufacturer's technical drawing | E4, SM1, IB |
| EAN | 8032755995036 |
Questions and answers
What supply voltage does it need?
12 V DC, 1 W.
Does the light have a reflector?
Yes, a reflector is integrated in the lens.
How is it mounted?
Surface-mounted - the housing is screwed to the vehicle wall through the two holes at its ends.
What are the dimensions?
124 x 45.5 x 14 mm according to the manufacturer's technical drawing.
Are there other colours in this range?
Yes, in the same housing the manufacturer offers a red rear position light 025 RPL001 and a white front position light 025 FPL001.
Manufacturer
Dimatec has designed low-voltage LED lighting for recreational vehicles since 1990. The company is based near Milan, Italy.
