Thule front protection 1500603230 for Slide-Out Step V19 12V 550 - spare part for Ducato, Jumper, Boxer and Crafter

Which steps it fits

• Thule Slide-Out Step V19 12V Ducato / Jumper / Boxer Euro6 d-Temp - size 550
• Thule Slide-Out Step V19 12V Crafter - size 550
• Thule Slide-Out Step V19 12V 550 Crafter 4WD
• all these versions use the same front protection part number 1500603230

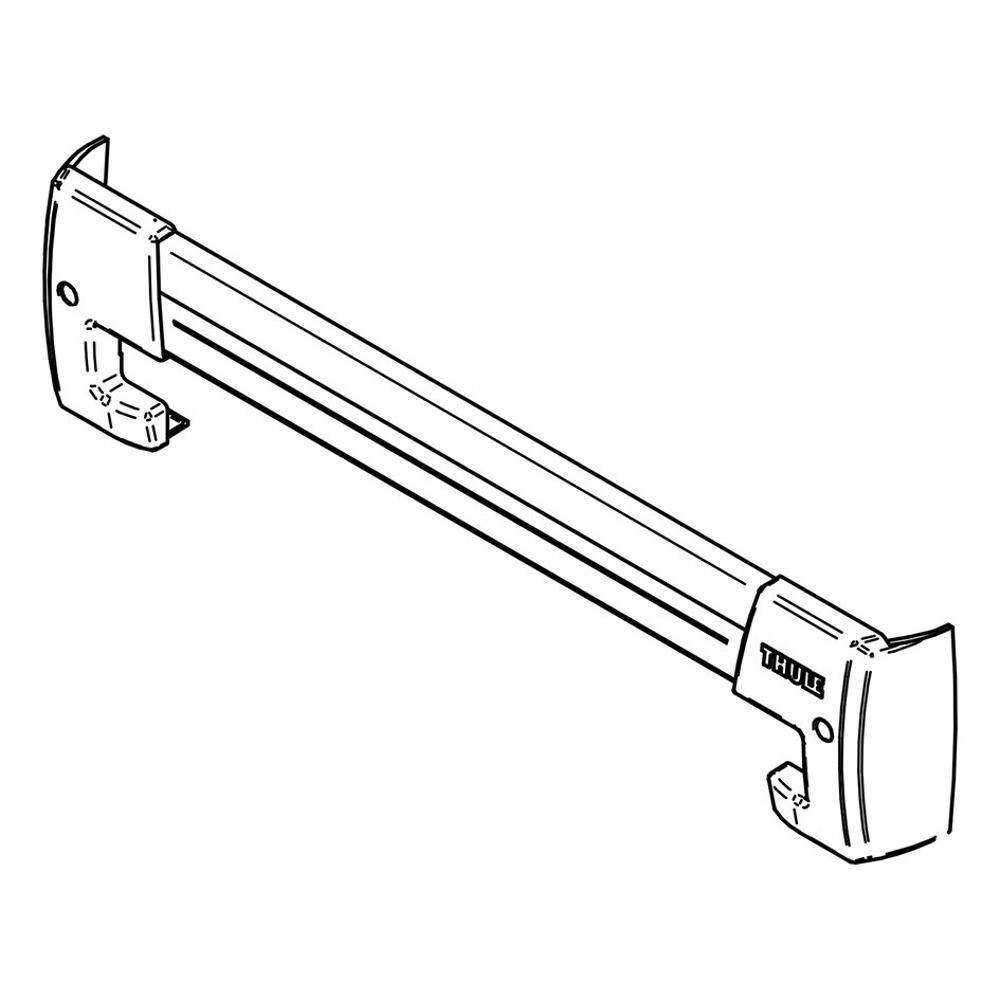

Position in the manufacturer's drawing

• in Thule's spare parts drawing the front protection is item 5
• profile with side end caps
• for steps in size 400 and 700 Thule has separate parts: 1500603238 (400) and 1500603239 (700)
• before ordering, check the step model and size on the type plate or in the vehicle documents

Does it fit a size 400 or 700 step?

No. This part is for size 550. For size 400 Thule has part 1500603238, for 700 part 1500603239.

Does it fit the V19 Crafter version?

Yes. The Thule spare parts list gives the same number 1500603230 for the Ducato / Jumper / Boxer, Crafter and Crafter 4WD versions in size 550.

How do I check that I have a V19 step?

The step model and size are on the type plate of the step or in the vehicle documents.
