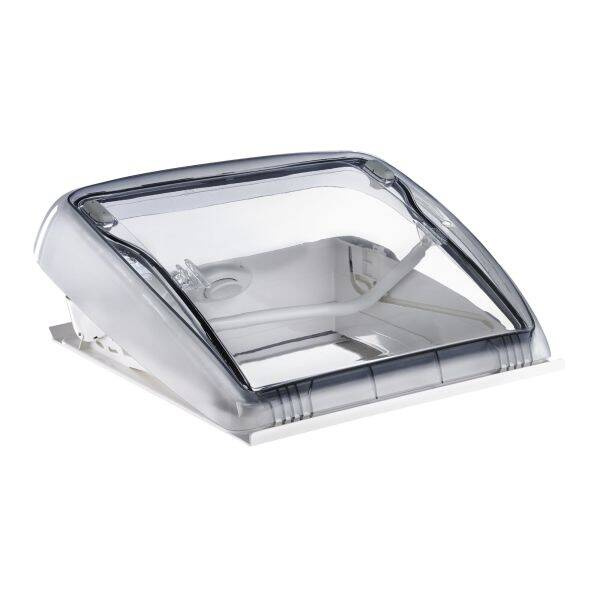

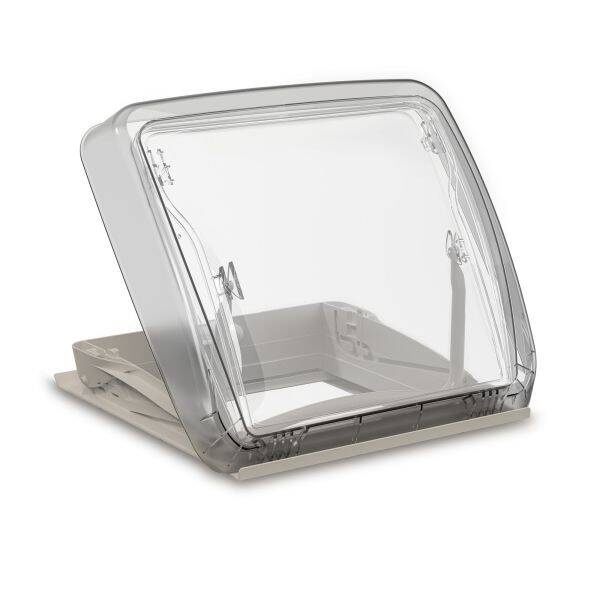

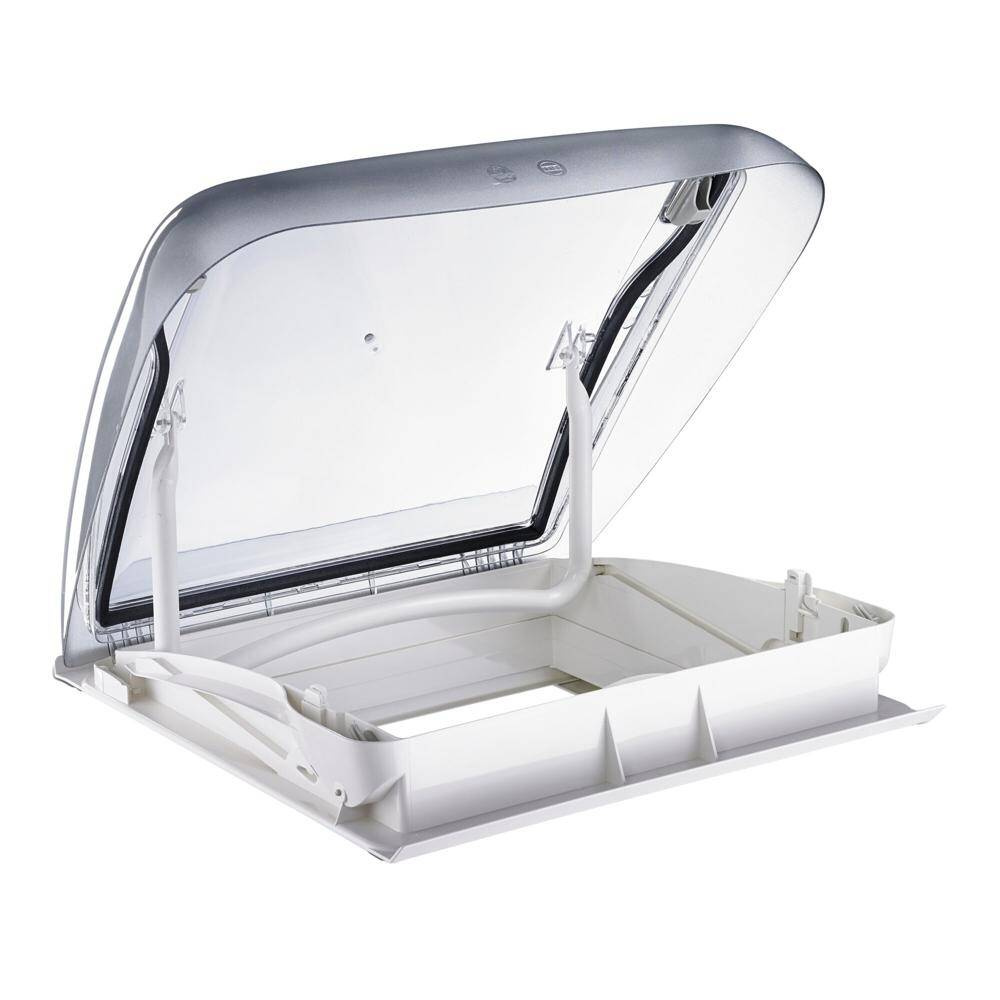

Dometic Mini Heki Style roof vent 400 x 400 mm for 43-60 mm roofs, with blind and fly screen
ID produktu: 28452
- Dometic Mini Heki Style roof vent 400 x 400 mm for roofs 43-60 mm thick. Double acrylic glazing, forced ventilation, 3 opening positions, blackout blind and fly screen.
The Dometic Mini Heki Style is a roof vent with a 400 x 400 mm cut-out for roofs 43-60 mm thick, made for campers and caravans. It has double acrylic glazing, forced ventilation and an inner frame with a pleated blackout blind and fly screen.
Key information
- cut-out 400 x 400 mm
- roof thickness 43-60 mm
- double acrylic glazing
- 3 positions: fully open, half open, bad weather
- opening angle up to 50°, hand lever
- inner frame with pleated blind and fly screen
- frame colour RAL 9001
- net weight 3.3 kg
Before you order
Measure the roof thickness at the mounting point before buying. This version fits 43-60 mm roofs, a separate version is available for thinner 25-42 mm roofs. The bad weather position lets you ventilate even when it rains.
Photos
Related products
- Mini Heki Style for 25-42 mm roofs
- Mini Heki / Style replacement pane with seal
- Mini Heki window cover
- fan for 40 x 40 cm roof vents
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Dometic |
| Model | Mini Heki Style |
| Manufacturer part no. | 9620008612 |
| Cut-out | 400 x 400 mm |
| Roof thickness | 43-60 mm |
| Glazing | double, acrylic |
| Ventilation | forced |
| Opening positions | 3, max. 50° |
| Operation | hand lever |
| Inner frame | pleated blackout blind and fly screen |
| Frame colour | RAL 9001 |
| Net weight | 3.3 kg |
Questions and answers
Which roof thickness does it fit?
Roofs from 43 to 60 mm thick.
Does it have a fly screen and blind?
Yes, the inner frame has a pleated blackout blind and a fly screen.
Can I ventilate when it rains?
Yes, using the bad weather opening position.
Manufacturer
Dometic Germany GmbH, Hollefeldstraße 63, 48282 Emsdetten, Germany.
ID produktu
28452
Brand
Color
Cream white
Dokładny rozmiar nominalny 1
400 mm
Wyciągnij rozmiar nominalny 2
400 mm
Gross weight
4350 g
Grubość dekarza do
60 mm
Grubość dekarza od
43 mm
For recreational vehicle
Motorhome, caravan
Net weight
3300 g
Max package dimension
585 cm
Min package dimension
230 cm
Middle package dimension
535 cm
Forced ventilation
✓
