Dometic RC 10.4P.70 compressor refrigerator, 70 l, 12/24 V
- Dometic RC 10.4P.70 built-in compressor refrigerator, 70 l, 12/24 V, tailor-made for Fiat Ducato and same design campervans. Door opens left or right, removable freezer, climate class T, CI-Bus.
Dometic RC 10.4P.70 compressor refrigerator, 70 l, 12/24 V
The Dometic RC 10.4P.70 is a 70 l built-in compressor refrigerator tailor-made for Fiat Ducato and same design campervans. It runs on 12 V or 24 V on-board power.

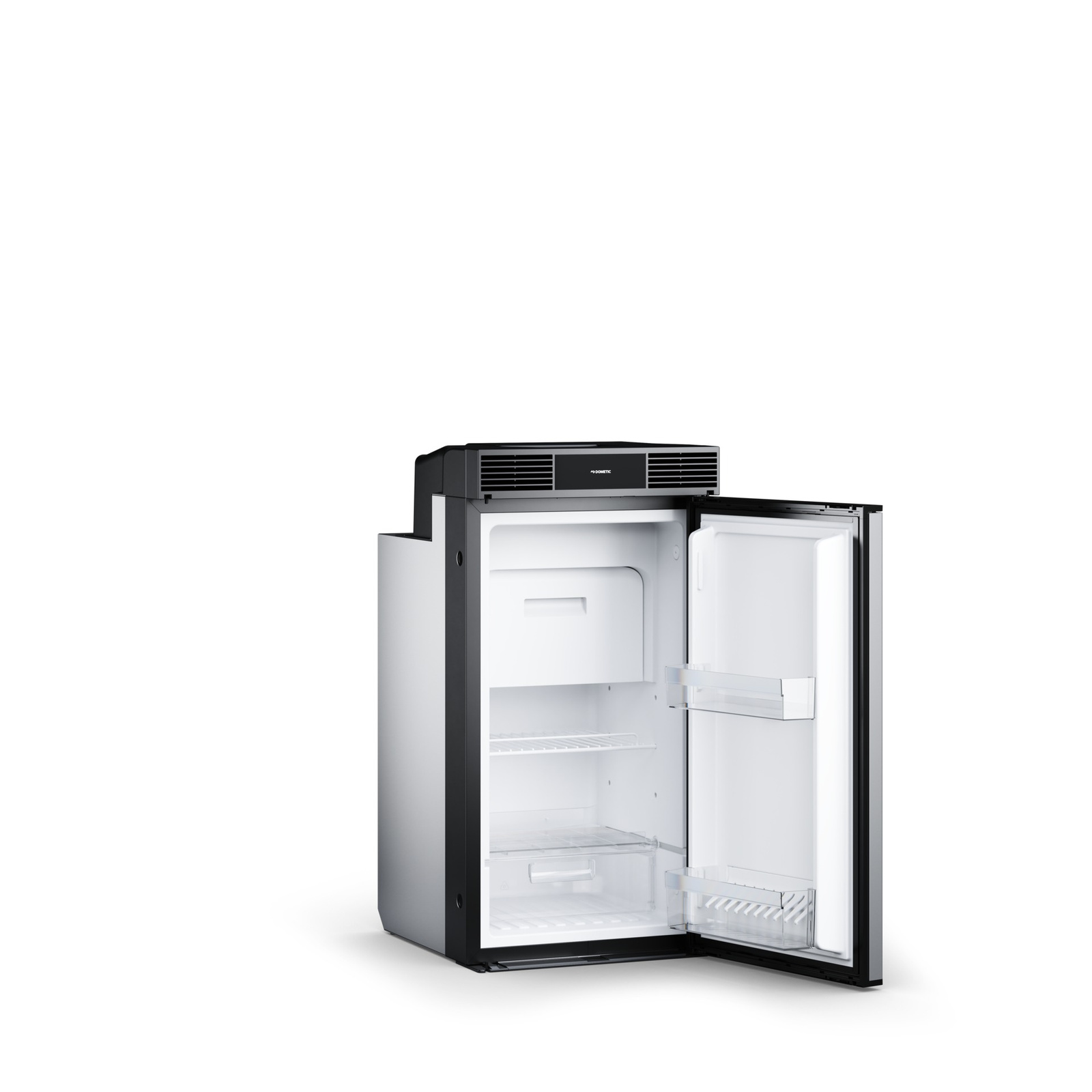

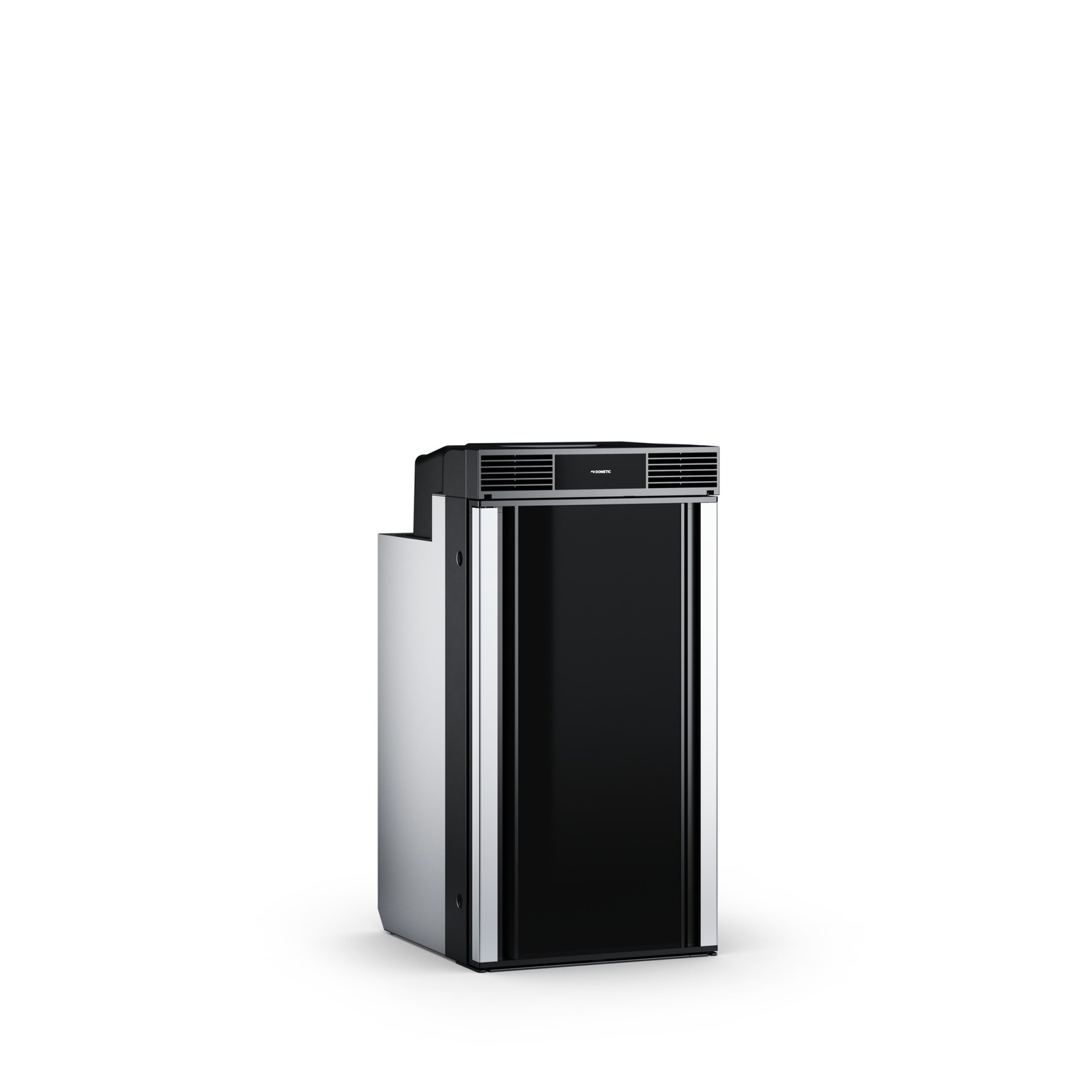

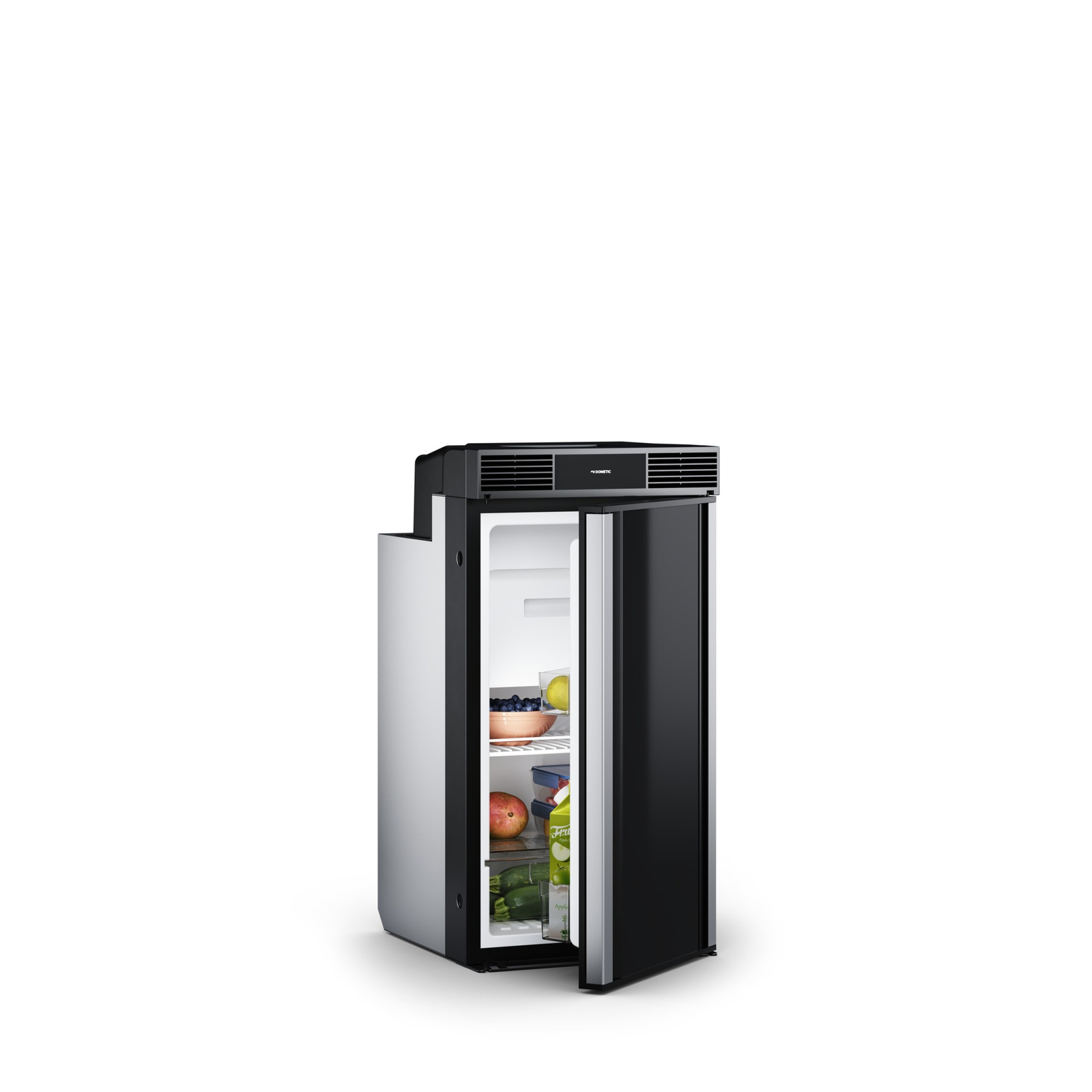

The double-hinged door opens left or right, and full-height aluminium handles on both sides make opening easy. The patented freezer compartment can be removed to make more room for refrigeration. A separate compartment with flap door stores fruit and vegetables. The two-point locking system keeps the door safe while driving and includes a winter position.
Climate class T ensures reliable cooling and freezing even at ambient temperatures up to 43 °C. The control panel with LED light bar is located inside the cabinet, so no glowing display disturbs your sleep. Night mode gives quiet operation and the boost function fast cool-down. The fridge connects to the vehicle CI-Bus for operation from a central control panel (sold separately). The flat door takes a decor panel 1.2–3 mm thick.
Specification
| Parameter | Value |
|---|---|
| Manufacturer | Dometic |
| Model | RC 10.4P.70 |
| Manufacturer article no. | 9620023675 |
| Type | built-in compressor refrigerator |
| Total volume (IEC 62552-3) | 69 l |
| Input voltage | 12/24 V DC |
| Rated input current | 7 A |
| Refrigerant | R600a |
| Climate class | T (up to 43 °C) |
| Zones | 2 (fridge + removable freezer) |
| Thermostat | electronic |
| Interior light | LED |
| Insulation | PU (polyurethane) |
| Drain plug | yes |
| Door | double hinge, opens left or right |
| Decor panel | 1.2–3 mm |
| Dimensions (W x H x D) | 420 x 821 x 450 mm |
| Net weight | 18.5 kg |
| Parcel dimensions (W x H x D) | 495 x 891 x 554 mm |
| Parcel weight | 20 kg |
| Colour | black |
| Certificates | CB, CE |
| Scope of delivery | double hinge, decor panel, 2 shelves, 2 door shelves, manuals |
Frequently asked questions
Which vehicles does it fit?
It was tailor-made for Fiat Ducato and same design campervans.
Can the door open on either side?
Yes, the double hinge lets the door open left or right.
Does it run on gas?
No, it is a compressor refrigerator powered by 12 V or 24 V.
Is the freezer removable?
Yes, it can be removed to make more room for refrigeration.
Will it cope with hot weather?
Yes, climate class T ensures cooling and freezing at ambient temperatures up to 43 °C.
Can I control it from my RV panel?
Yes, via the CI-Bus from a central control panel (sold separately).
