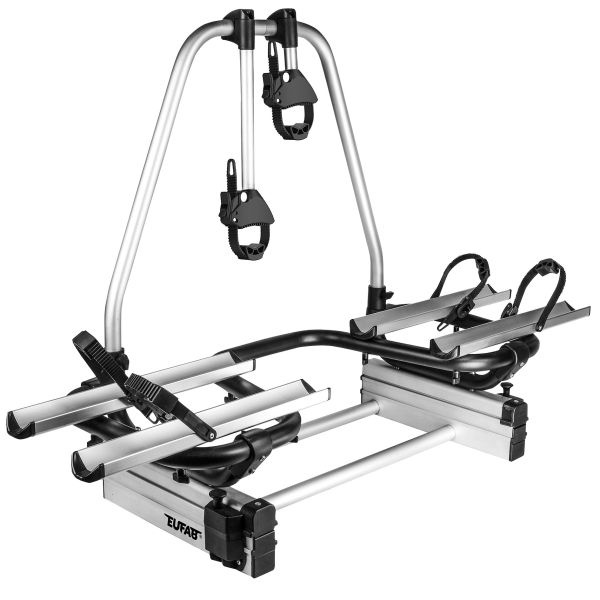

drawbar carrier BS260
drawbar carrier BS260 EUFAB
e-bikes
Please pay attention to the load capacity when loading e-bikes.

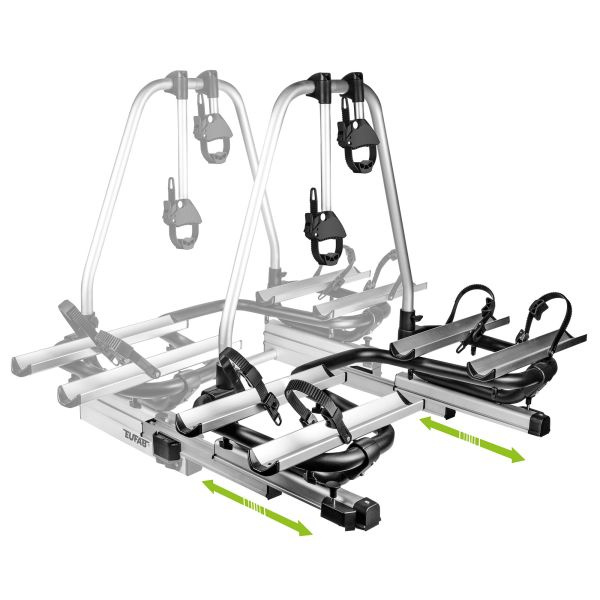

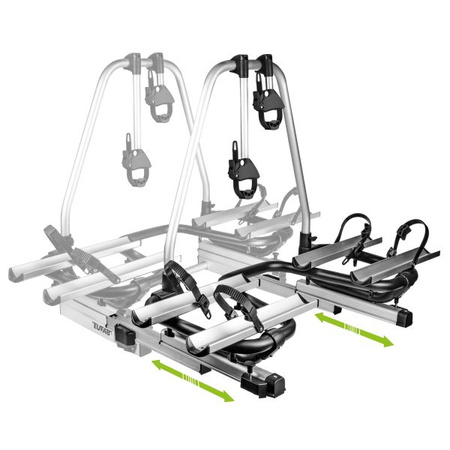

The EUFAB BS260 for two bikes offers an extra-slim design and is the ideal companion for anyone who likes to be comfortable. It is not only impressive due to its light weight, but also due to its practical handling. The carrier can be pulled out to the back by around 50 cm, which gives you easy access to the storage and bottle box.
Installation is done without drilling thanks to special mounting brackets, making it compatible with almost all caravan drawbars. With a load capacity of up to 30 kg per rail, the BS260 offers sufficient capacity for your bicycles.
The sturdy aluminum profile rails allow wheelbases of up to 135 cm and fit tire widths of up to 2.35 inches (60 mm). Removable, lockable frame holders, tensioning straps and ratchets ensure that your bikes are securely fastened.
Features:
- Transport of two bicycles on the caravan drawbar
- easy installation without drilling thanks to mounting clips
- secure hold thanks to removable and lockable frame holders with tensioning straps and ratchets
- compatible with almost all caravan drawbars
- convenient access to the storage box thanks to the extendable sliding system
- light weight for easy handling
Technical details:
- Extendable: by approx. 50 cm
- Rail type: aluminum profile rails
- Rail spacing: approx. 20 cm
- Maximum wheelbase: 135 cm
- Tire width in the rail: up to 2.35 inches (60 mm)
Important note: The BS260 requires a distance of around 85 cm between the bracket and the centre of the ball head to ensure sufficient clearance. Also pay attention to the permissible vertical load of your trailer coupling and the total weight of your caravan.
Technical data
- max. wheel: 2
