DVB-T2 35 HD omnidirectional antenna for motorhomes and caravans - passive, UHF and VHF, vertical or horizontal mounting
ID produktu: 43068
- Passive DVB-T2 omnidirectional antenna for motorhomes and caravans. UHF and VHF reception in HD (E21-E69), dual polarisation, vertical or horizontal mounting, F connector, 75 Ohm, 200 g, brackets included.

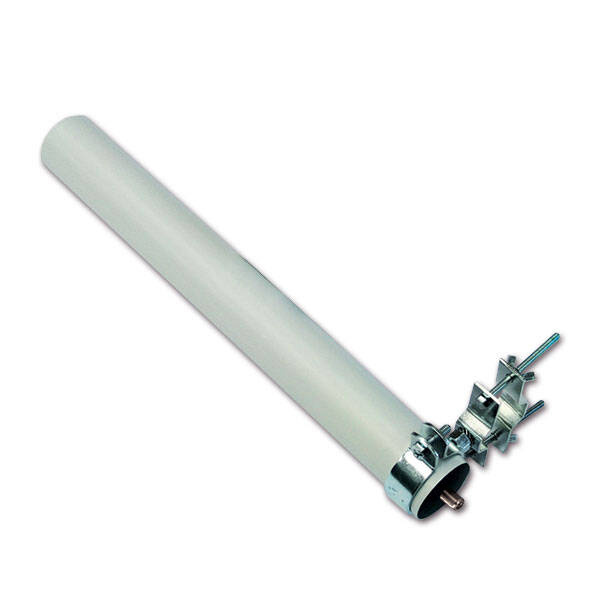

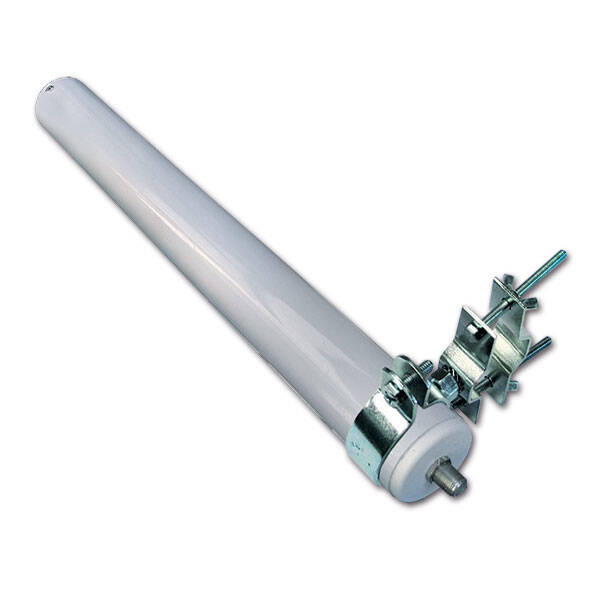

The 35 HD is a patented passive omnidirectional antenna in a slim tube. Thanks to dual polarisation it can be mounted vertically or horizontally, for example along the roof rail of a motorhome. Fixing brackets are included.
Features
- passive omnidirectional antenna
- UHF and VHF reception in HD, channels E21-E69
- dual polarisation: vertical or horizontal mounting
- F connector, 75 Ohm impedance
- fixing brackets included
Reception
- gain without amplifier: 9/11 dB
- for better reception add the 12 V / 230 V DVB-T2 amplifier

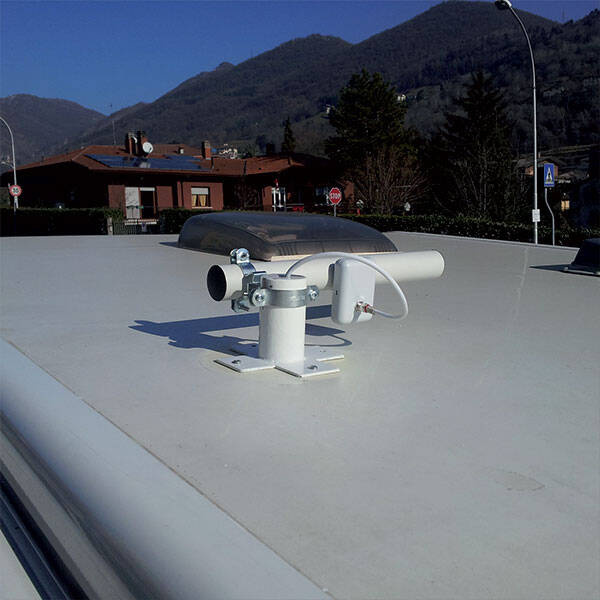

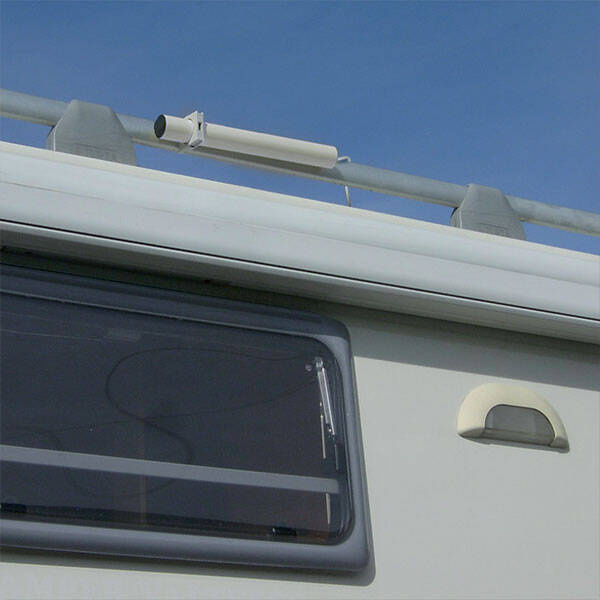

Fitting on a motorhome
- clamped to a tube or roof rail
- weight: 200 g
Photos
DVB-T2 antennas and amplifiers for motorhomes
- 12 V DVB-T2 amplifier, 2 TV outputs
- DVB-T2 amplifier with 12 V and 230 V power supply
- omnidirectional antenna Ø 28 cm
- Omni360 omnidirectional antenna Ø 30 cm
Technical data
| Parameter | Value |
|---|---|
| Type | passive DVB-T2 omnidirectional antenna |
| Bands | UHF and VHF, E21-E69 |
| Polarisation | dual, vertical or horizontal mounting |
| Gain without amplifier | 9/11 dB |
| Impedance | 75 Ohm |
| Connector | F |
| Weight | 200 g |
| Included | fixing brackets |
| Colour | white |
Questions and answers
Can it be mounted horizontally?
Yes, dual polarisation allows vertical or horizontal mounting.
Which connector does it have?
An F connector, 75 Ohm impedance.
Does it need an amplifier?
Not necessarily, without an amplifier the gain is 9/11 dB. For better quality add the 12 V / 230 V DVB-T2 amplifier.
Are brackets included?
Yes, the antenna comes with fixing brackets.
