Reich easydriver pro 2.0 mover for BPW chassis, suspended mounting
- Fully automatic Reich easydriver pro 2.0 mover for single-axle caravans up to 2000 kg. BPW version for chassis with 5 holes, no adapter plates. Electric roller engagement, soft start and stop, 12 V, remote control included.

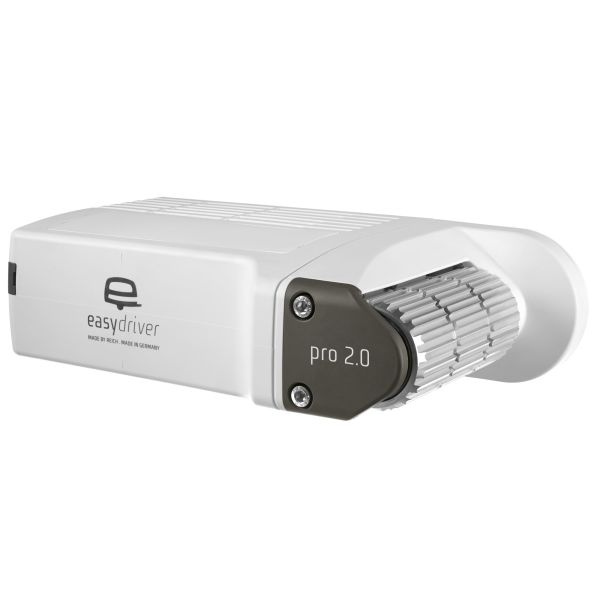

Reich easydriver pro 2.0 mover for BPW chassis
The Reich easydriver pro 2.0 BPW version is a fully automatic mover for single-axle caravans up to 2000 kg. It fits the standard BPW chassis without adapter plates. It lets you position your caravan with centimetre precision, even in very tight spaces, with no more pushing and pulling by hand.
How it works
The mover is permanently installed under the caravan. To manoeuvre, the left and right drive units are coupled to the tyres and decoupled again afterwards. The motors do this automatically, so you no longer have to bend down at the wheels. The caravan is driven by two 12 V electric motors and controlled with a remote that shows the direction of travel with symbols.
Key features
- BPW version: suspended mounting on a BPW chassis with five holes, no adapter plates.
- For single-axle caravans with a total weight of up to 2000 kg.
- Fully automatic, electric engagement of the drive rollers.
- Soft start and soft stop reduce the strain on the chassis.
- Gradient capability of 15% at 2000 kg and 28% at 1200 kg.

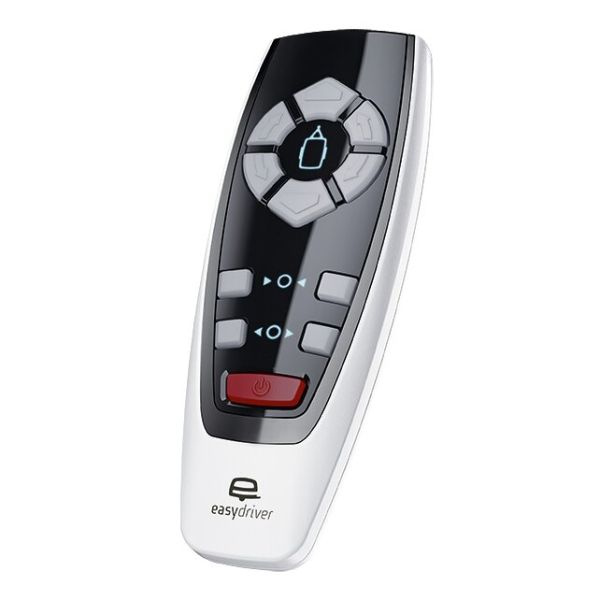

- Remote control included; the main switch is installed in the battery positive cable.
Please note: this is the BPW version and fits only a BPW chassis with holes. Your caravan chassis must have five mounting holes.
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Reich (easydriver) |
| Model | easydriver pro 2.0, BPW version |
| Manufacturer code | 527-15220B2 |
| Mounting | suspended, on BPW chassis with 5 holes, no adapter plates |
| Axles | 1 (single-axle caravans) |
| Max. caravan weight | 2000 kg |
| Gradient | 15% at 2000 kg, 28% at 1200 kg |
| Manoeuvring speed | approx. 0.7 km/h |
| Drive | 2 x 12 V DC electric motors |
| Roller engagement | automatic, electric |
| Nominal voltage | 12 V |
| Current draw on level ground | approx. 20 A |
| Recommended battery | min. 12 V / 50 Ah |
| Remote control | 433 MHz, 3 x AAA 1.5 V batteries |
| Weight | 31 kg |
| Package dimensions | 120 x 40 x 20 cm |
FAQ
Will the mover fit my caravan?
Yes, if your caravan has a single axle and a standard BPW chassis with five holes. Other chassis need a different mover version.
Is it suitable for twin-axle caravans?
No, this model is designed for single-axle caravans.
What battery do I need?
The manufacturer recommends a 12 V battery with at least 50 Ah.
Can it handle slopes?
At 2000 kg the mover climbs gradients of 15%, at 1200 kg up to 28%. These values must not be exceeded.
