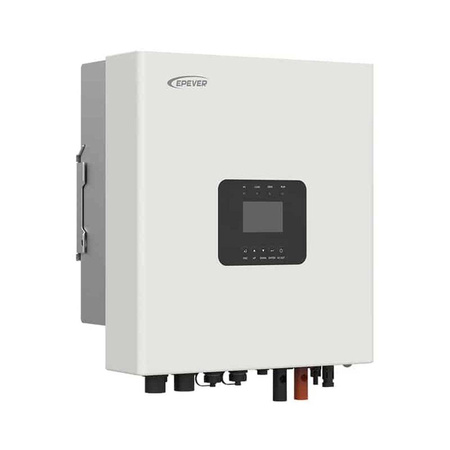

EPEVER HP Series 100A 230VAC 5.5KW Inverter/Charger
EPEVER HP Series 100A 230VAC 5.5KW Inverter/Charger
The HP Series 65A hybrid inverter/charger excels in the market with its robust performance and versatility across environmental conditions. This device accommodates multiple energy sources, including solar energy, oil generators, and utility power, delivering efficient management of energy. Its capability for parallel operation addresses complex power requirements, while ensuring a stable supply through its reliability.
With its high IP65 protection level, the HP-AHP65A is designed to meet outdoor power needs in harsh conditions, such as salt mist and humidity, enhancing durability and extending the device's lifespan. The integration of an LCD screen and Modbus communication simplifies monitoring and integration into existing setups. Advanced MPPT technology alongside its control systems greatly increases solar cell power utilization, guaranteeing optimal energy collection regardless of weather conditions.
Moreover, the HP-AHP65A operates quietly at under 45dB, catering to environments where noise reduction is essential. With all these features, it stands out for its reliability and versatility, suitable for both industrial and home use.
With color LCD display, w/o WIFI built in. IP65 protection.
Utility Input Voltage: 176VAC~264VAC (Default), 90VAC~280VAC (Configurable)Utility Input Frequency: 45Hz~65HzMaximum Utility Charging Current: 100ASwitch Response Time – Inverter to Utility:: 10msSwitch Response Time – Utility to Inverter (when the load power is higher than 100W):: 20msInverter output: Inverter Rated Power (@30℃): 5500W3-second Transient Surge Output Power: 8500WInverter Output Voltage: 220/230VAC±3%Inverter Frequency: 50/60Hz±0.2%Output Voltage Waveform: Pure Sine WaveLoad Power Factor: 0.2~1(VA ≤ Rated output power)THDu (Total Harmonic Voltage Distortion): Maximum Load Efficiency: 0.91Maximum Inverter Efficiency: 0.94PV Maximum Open-circuit Voltage (At minimum operating environment temperature): 500VPV Maximum Open-circuit Voltage (At 25℃): 440VMPPT Voltage Range: 85~400VNumber of MPPTs: 2PV Maximum Input Current: Two ways, 2x15APV Maximum Input Power: 2×3000WPV Maximum Charging Current: 100AMPPT Maximum efficiency: ≥99.5%Battery Rated Voltage: 48VDCBattery Work Voltage Range: 43.2VDC~64VDCNo-load Losses: <1.0 ATest condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V inputStandby Current: <0.15A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V inputWork Temperature Range: -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately)Storage Temperature Range: -25℃~+60℃Enclosure: IP65Relative Humidity: < 100% (N.C.)Altitude: <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)Mechanical parameters: Dimension (Length x Width x Height): 545mm ×428mm ×248mmMounting Size (Length x Width): 350mm x 130mmMounting Hole Size: Φ10mmNet Weight: 25.4kgDo you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
