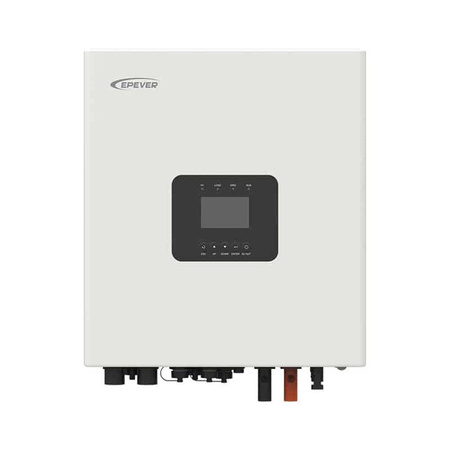

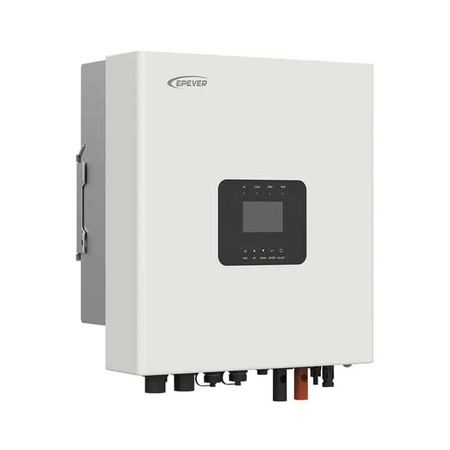

EPEVER HP Series 120A 230VAC 3.5KW Inverter/Charger
EPEVER HP Series 120A 230VAC 3.5KW Inverter/Charger
The HP Series 65A hybrid inverter/charger excels in the market with its robust performance and versatility across environmental conditions. This device accommodates multiple energy sources, including solar energy, oil generators, and utility power, delivering efficient management of energy. Its capability for parallel operation addresses complex power requirements, while ensuring a stable supply through its reliability.
With its high IP65 protection level, the HP-AHP65A is designed to meet outdoor power needs in harsh conditions, such as salt mist and humidity, enhancing durability and extending the device's lifespan. The integration of an LCD screen and Modbus communication simplifies monitoring and integration into existing setups. Advanced MPPT technology alongside its control systems greatly increases solar cell power utilization, guaranteeing optimal energy collection regardless of weather conditions.
Moreover, the HP-AHP65A operates quietly at under 45dB, catering to environments where noise reduction is essential. With all these features, it stands out for its reliability and versatility, suitable for both industrial and home use.
With color LCD display, w/o WIFI built in. IP65 protection.
Utility Input Voltage: 176VAC~264VAC (Default), 90VAC~280VAC (Configurable)Utility Input Frequency: 45Hz~65HzMaximum Utility Charging Current: 110ASwitch Response Time – Inverter to Utility:: 10msSwitch Response Time – Utility to Inverter (when the load power is higher than 100W):: 20msInverter output: Inverter Rated Power (@30℃): 3500W3-second Transient Surge Output Power: 7000WInverter Output Voltage: 220/230VAC±3%Inverter Frequency: 50/60Hz±0.2%Output Voltage Waveform: Pure Sine WaveLoad Power Factor: 0.2~1(VA ≤ Rated output power)THDu (Total Harmonic Voltage Distortion): ≤3% (24V resistive load)Maximum Load Efficiency: 0.89Maximum Inverter Efficiency: 0.93PV Maximum Open-circuit Voltage (At minimum operating environment temperature): 500VPV Maximum Open-circuit Voltage (At 25℃): 440VMPPT Voltage Range: 85~400VNumber of MPPTs: 1PV Maximum Input Current: One way, 20A/wayPV Maximum Input Power: 4000WPV Maximum Charging Current: 120AMPPT Maximum efficiency: ≥99.0%Battery Rated Voltage: 24VDCBattery Work Voltage Range: 21.6VDC~32.0VDCNo-load Losses: <1.3ATest condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V inputStandby Current: <0.3A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V inputWork Temperature Range: -20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately)Storage Temperature Range: -25℃~+60℃Enclosure: IP65Relative Humidity: < 100% (N.C.)Altitude: <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)Mechanical parameters: Dimension (Length x Width x Height): 545mm × 428mm × 248mmMounting Size (Length x Width): 350mm x 130mmMounting Hole Size: Φ10mmNet Weight: 25.0kgDo you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
