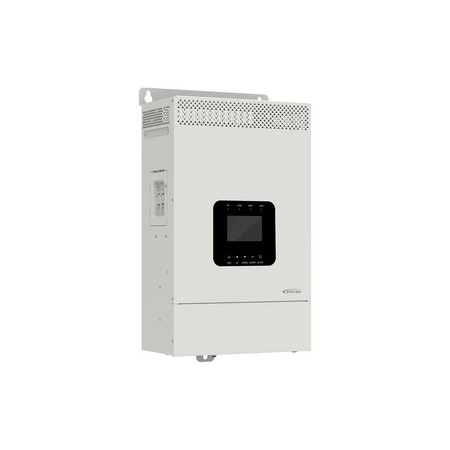

EPEVER HP Series 120A 230VAC 3.5KW Inverter/Charger
EPEVER HP Series 120A 230VAC 3.5KW Inverter/Charger
The HP Series 20A is an advanced hybrid inverter/charger, supporting multiple energy sources like utility, oil generator, and solar. It offers parallel operation, high reliability, and various charging modes. Featuring a large LCD screen and Modbus communication, it provides efficient energy management. With optimized MPPT technology and dual closed-loop control, it maximizes solar power utilization. This inverter ensures high-quality, stable, and reliable electricity for your needs.
With color LCD display, w/o WIFI built in. IP20 protection.
Utility Voltage: 176VAC to 264VAC (Default)Utility Voltage: 90VAC to 280VAC (Configurable)Utility Frequency: 45Hz to 65HzMaximum Utility Charging Current: 110ASwitch Response Time – Inverter to Utility:: 10msSwitch Response Time – Utility to Inverter (when the load power is higher than 100W):: 20msInverter Rated Power (@30℃): 3500W3-second Transient Surge Output Power: 7000WInverter Output Voltage: 220/230VAC±3%Inverter Frequency: 50/60Hz±0.2%Output Voltage Waveform: Pure sine waveLoad Power Factor: 0.2－1(VA ≤ Rated output power)THDu (Total Harmonic Voltage Distortion): ≤3% (24V resistive load)Maximum Load Efficiency: 0.91Maximum Inverter Efficiency: 0.93Parallel Function: Yes, 12 units in standard, 16 units at mostPV Maximum Open-circuit Voltage (At minimum operating environment temperature): 500VPV Maximum Open-circuit Voltage (At 25℃): 440VMPPT Voltage Range: 85V to 400VPV Maximum Input Power: 4000WMPPT Input Channels: One wayPV Maximum Input Current: One way, 16APV Maximum Short-circuit Current: One way, 18AMPPT Maximum efficiency: ≥99.5%Battery Rated Voltage: 24VDCBattery Maximum Charging Current: 120ANo-load Losses: <1.4 ATest condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @24V inputStandby Current: <0.9ATest condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @24V inputWork Temperature Range: -20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)Storage Temperature Range: -25℃ to +60℃Enclosure: IP20Relative Humidity: < 95% (N.C.)Altitude: <4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)Mechanical parameters: Dimension (Length x Width x Height): 590mm × 288mm × 163mmMounting size (Length x Width): 568mm x 245mmMounting hole size: Φ9mm/Φ10mmNet Weight: 14 KgDo you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
