EPEVER HPS-AL Series 1.0KW 1.024kWh Solar Power System
ID produktu: 41828
Opis produktu

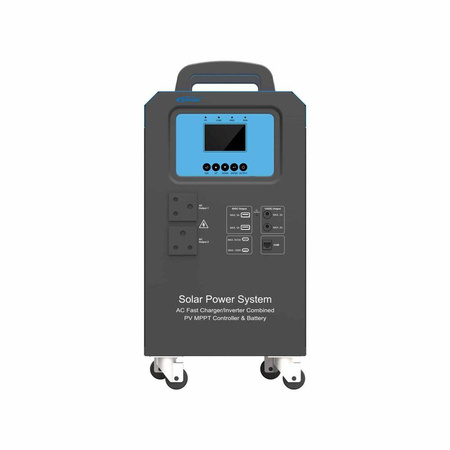

EPEVER HPS-AL Series 1.0KW 1.024kWh Solar Power System
The HPS-AL series is a household energy storage product, with a built-in battery. It supports solar and utility charging options, as well as a DC-to-AC inverter output. Advanced DSP chip with its control algorithm ensures high response speed, reliability, and conversion efficiency. The unique compartment design isolates the heat dissipation channels from the components, providing superior resistance to dust, moisture, and fog. Customers can achieve efficient energy utilization by flexibly using solar energy or utility power via customized settings. Most importantly, this product ensures a stable power supply and is widely used in low or no-power areas.
With larger LCD display, built-in LiFePO4 lithium battery. IP30 protection.
Item: HPS1022-AL0210
Utility input
Utility work voltage range: 176VAC~285VAC
Utility input frequency range: 45Hz-65Hz
Max. Utility work current (Charging + Bypass): 2.2A for charging+4.5A for bypass@220VAC
Utility transfer time: Utility bypass to Inverter output: <10ms; Inverter output to Utility bypass: 0ms
AC input overload relay: HAVE
Inverter output
Surge output power (5s): 1500W
Rated output voltage: 220VAC±3%
Rated output frequency: 50Hz/60Hz±0.2%
Output wave: Pure sine wave
Output distortion THD: ≤3% (Resistive load)
Output soft start: HAVE
Solar controller
Solar controller type: MPPT
MPPT efficiency: ＞99.5%
MPPT voltage range: 30V~80V
MPPT ways: One way
Max. PV output charging current: 16.5A
Battery
Rated battery voltage: 24VDC
Battery work voltage range: 21VDC -30VDC
Battery work temperature range: Discharging Mode: -20℃ ~ 55℃; Charging Mode: 0℃ ~ 40℃
Rated battery capacity: 55Ah*2
DC output
USB-A port: 5V3A*2
TYPE C (USB-C) port: TYPE C-100W * 1pcs (support PD3.0 and multiple protocols) TYPE C-5V/3A * 1pcs
DC output switch: HAVE
Others
Enclosure: IP20
Communication method: RS485, BlueTooth (GRPS/WiFi optional)
LCD: Monochrome LCD, English interface
Warranty: Two years
Dimension (Length x Width x Height): 255x406x541mm (with floor mats and handles)
