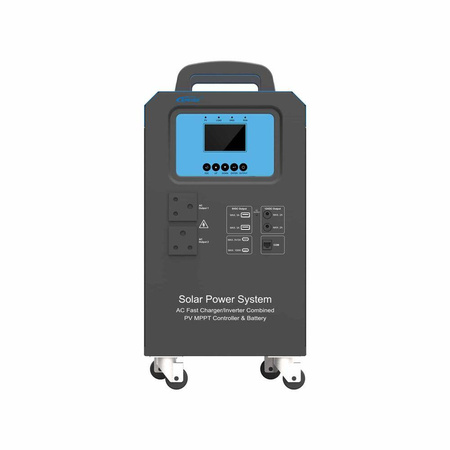

EPEVER HPS-AL Series 2.5KW 2.56kWh Solar Power System
EPEVER HPS-AL Series 2.5KW 2.56kWh Solar Power System
The HPS-AL series is a household energy storage product, with a built-in battery. It supports solar and utility charging options, as well as a DC-to-AC inverter output. Advanced DSP chip with its control algorithm ensures high response speed, reliability, and conversion efficiency. The unique compartment design isolates the heat dissipation channels from the components, providing superior resistance to dust, moisture, and fog. Customers can achieve efficient energy utilization by flexibly using solar energy or utility power via customized settings. Most importantly, this product ensures a stable power supply and is widely used in low or no-power areas.
With larger LCD display, built-in LiFePO4 lithium battery. IP30 protection.
Item: HPS2522-AL0315Utility work voltage range: 176VAC~285VACUtility input frequency range: 45Hz-65HzMax. Utility work current (Charging + Bypass): 3.5A for charging+11.4A for bypass@220VACUtility transfer time: Utility bypass to Inverter output: <10ms; Inverter output to Utility bypass: 0msAC input overload relay: HAVESurge output power (5s): 4000WRated output voltage: 220VAC±3%Rated output frequency: 50Hz/60Hz±0.2%Output wave: Pure sine waveOutput distortion THD: ≤3% (Resistive load)Output soft start: HAVESolar controller type: MPPTMPPT efficiency: ＞99.5%MPPT voltage range: 30V~120VMPPT ways: One wayMax. PV output charging current: 30ARated battery voltage: 24VDCBattery work voltage range: 21VDC -30VDCBattery work temperature range: Discharging Mode: -20℃ ~ 55℃; Charging Mode: 0℃ ~ 40℃Rated battery capacity: 120Ah*2USB-A port: 5V3A*2TYPE C (USB-C) port: TYPE C-100W * 1pcs (support PD3.0 and multiple protocols) TYPE C-5V/3A * 1pcsDC output switch: HAVEEnclosure: IP20Communication method: RS485, BlueTooth (GRPS/WiFi optional)LCD: Monochrome LCD, English interfaceWarranty: Two yearsDimension (Length x Width x Height): 435x504x574.5mm (with wheels and handles)Net weight: 107kgDo you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
