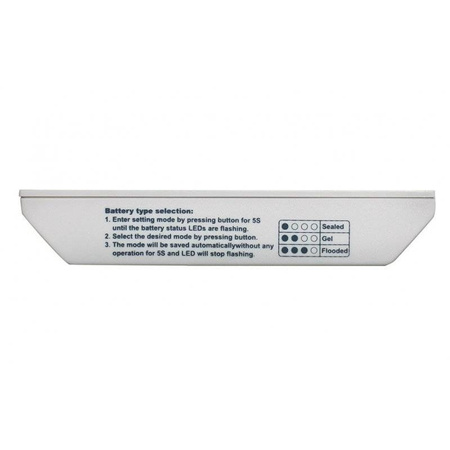

Epever LS1024EU PMW 12V/24V with USB output
Epever LS1024EU PMW 12V/24V with USB output
Epever LS1024EU PMW 12V/24V with USB output
Epever LS1024EU PMW 12V/24V with USB output
On special offer

Epever LS1024EU PMW 12V/24V with USB output

16,78 €(Discount 19%)
13,60 €
incl. VAT / szt.
Lowest product price within 30 days prior to the sale:
Express checkout 1-Click(without registration)
14 days for easy returns
Safe shopping

Description

  • Capacity: 10 amps
  • Tension: 12v or 24V
  • This regulator can accommodate up to 250 watts of solar panels (in a 24V system)
  • Temperature compensation
  • Warranty 2 years
  • Technology: {linkpopup id = 'pwm'}
  • Exit USB 1.2 has / 5V
All the tensions of charges can be changed from 9 to 17V (X 2 for 24V), disconnection voltage also
Programming of output consumer according to a day/night or a time mode

Applications

Ideal for small solar as systems for example:

  • Home
  • Solar lighting system
  • Solar monitoring system
  • Solar system for ship
  • Small solar power plant

Features

  • Configuration of system voltage: 12V/24V auto
  • High efficiency load {linkpopup id = 'pwm'} with temperature compensation
  • 2 LED indicating the charge status and battery status
  • Interface to external temperature probe
  • Communication bus {linkpopup id = 'rs485'}
  • The software update function
  • USB output to charge a mobile phone, for example a fan or other electric device.

Electronic protections

  • Short circuit PV
  • Overload
  • Load short circuit
  • Polarity PV
  • Discharge
  • Polarity of the batteries
  • Overheating

Technical data

Model LS1024EU
Nominal voltage of the system 12/24VDC
Nominal current from the battery 10A
Maximum PV input voltage 50V
Autocosommation ≤6mA
Temperature compensation -5mV/℃/2V (ref)
Equalizing charge voltage Gel: /, sealed: 14, 6V, open: 14, 8V
Increase of the load voltage Gel: 14, 2V, seal: 14, 4V, open: 14, 6V
Floating charge voltage Gel seal / open: 13, 8V
Reconnection voltage Gel seal / open: 12, 6V
disconnect voltage Gel seal / open: 11, 1V
Dimensions 120, 3 x 67 x 21, 8mm
Mounting holes 111.5 mm
Terminal 4.5 mm 2
Weight 0.10 kg
Operating temperature -35? ~ + 55?
Storage temperature -35? ~ + 80?
Moisture ? 95% (NC)
Standard IP320
