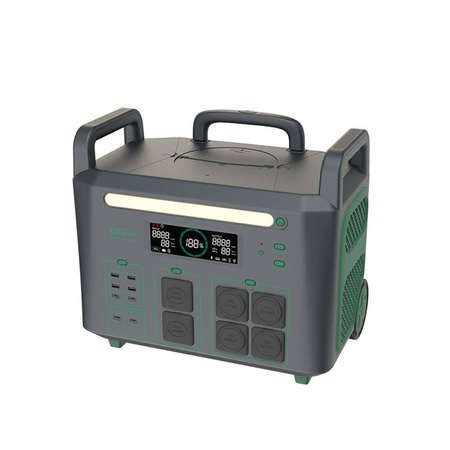

Introducing the ATZ 3600W Portable Power Station (EU), your ultimate companion for diverse power needs in any setting. Engineered for versatility, this power station boasts multiple AC and DC outputs, including four AC sockets capable of a maximum power output of 3600W with a peak of 5400W. Its compact design includes two powerful 100W USB-C PD interfaces, alongside traditional USB-A and 12VDC outputs, catering to a wide range of electrical devices.

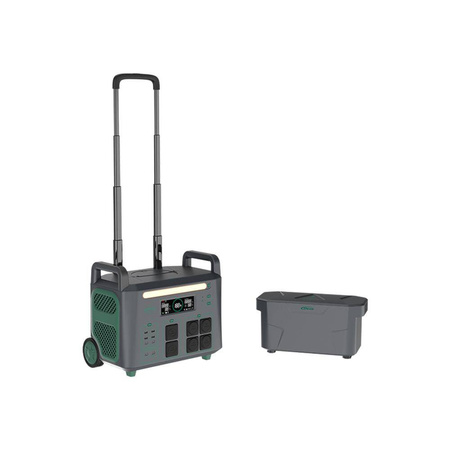

Designed for mobility and convenience, the ATZ 3600W features a dual-wheel handle for easy transport, making it ideal for outdoor activities, emergency home backup, and professional use. It supports a variety of charging modes such as solar, car, and AC, ensuring you're never left without power. Additionally, the integrated lithium iron phosphate battery provides rapid charging capabilities, achieving a full charge in just 1.2 hours with AC and maximum PV input, and is expandable up to 4096Wh for prolonged usage.
Empower your adventures and ensure reliable energy wherever life takes you with the ATZ 3600W Portable Power Station. Whether for recreational vehicles, aerial photography, or as an emergency power supply, this power station guarantees safety, efficiency, and high performance in all conditions.
Product model: ATZ3600EU
AC input
Rated AC input voltage: 230VAC
AC voltage range: 200VAC to 240VAC
Breakdown voltage: 290VAC
AC input frequency: 50Hz/60Hz
Rated AC input power: 2300W
Overload protection relay: Yes
DC input
Maximum withstand voltage at PV input terminal: 60VDC
PV controller type: MPPT
MPPT maximum efficiency: ≥99.5%
MPPT voltage range: 11VDC to 60VDC
Number of MPPTs: 1
Maximum PV charging current: 20A (when the PV input voltage is less than 30VDC, the maximum PV charging current is 10A)
Maximum DC input power: 1200W
Car charging: 12VDC/10A
AC output
Rated output power (@25℃): 3600W (2300W in bypass mode)
3-second transient surge output power: 5400W
Output voltage level: 230VAC±3%
Output frequency level: It is 50 Hz in default, can be set to 60 Hz, error ± 0.2%
Output voltage waveform: Pure sine wave
Output voltage harmonic distortion: ≤3% (pure resistive load)
DC output
USB-A output: 5VDC/3A*2 (four USB-A interfaces (sharing a 5VDC/3A for every two interfaces))
USB-C output: 5VDC/3A (two USB-C interfaces (sharing a 5VDC/3A power supply))
USB-C PD output: PD 100W * 2
: (The protocol supports PD2.0, PD3.0. QC2.0, QC3.0, QC4+ and APPLE 5V/2.4A)
Cigarette lighter output: 12VDC/10A*2
Battery
Battery type: Lithium iron phosphate
Rated voltage: 51.2VDC
Range of operating voltage: 40.0VDC to 58.4VDC
Range of operating temperature: Discharging: -20℃ to 50℃; Charging: 0℃ to 50℃
Nominal capacity: 2048Wh
Charging time
AC charging: Main battery pack: 1.2 hours
Car charging: Main battery pack: 17 hours
Solar charging (1200W input power): Main battery pack: 1.7 hours
AC charging plus maximum PV charging: Main battery pack: 1.2 hours
Others
Charging environment temperature: 0℃ to 40℃
Discharging environment temperature: -20℃ to 40℃ (derating is required for use at greater than 35℃)
Recommended working environment temperature: 20℃ to 35℃
Storage environment temperature 1 month: -10℃ to 50℃
Storage environment temperature 3 months: -10℃ to 45℃
Storage environment temperature 6 months: -10℃ to 30℃
: High-temperature storage is not recommended; the storage time shall not exceed half a year, and it must be charged once every six months.
Relative humidity: ＜80%
Altitude: ＜4000 meters (derating is required for operation at greater than 2000m)
Protection degree: IP20
Communication mode: Bluetooth
Man-machine interface: Monochrome LCD, English interface
External dimensions (length x width x height) (without secondary battery pack): 456x290x391mm
External dimensions (length x width x height) (with secondary battery pack): 456x290x537mm
Net weight (without secondary battery pack): 29.0kg
