ExtraVENT 40 Evo - 40 x 40 cm rooflight for motorhomes and caravans, double-glazed dome, forced ventilation, pleated blind and fly screen, roof 25-60 mm
- ExtraVENT 40 Evo 40 x 40 cm rooflight for motorhomes and caravans, cut-out 400 x 400 mm like the Mini Heki. Double-glazed dome, forced ventilation, pleated blind and fly screen. Roof 25-60 mm.
The ExtraVENT 40 Evo is a white 40 x 40 cm rooflight for motorhomes, caravans and van conversions. The double-glazed dome opens with a bar and aluminium handle. The interior frame holds a pleated blackout blind and a fly screen, and forced ventilation brings in fresh air even with the dome closed. The 400 x 400 mm cut-out is the same size as the opening of a Mini Heki.

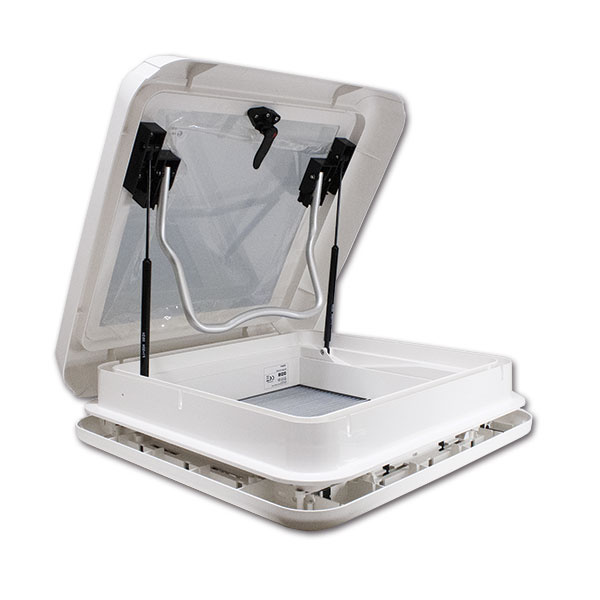

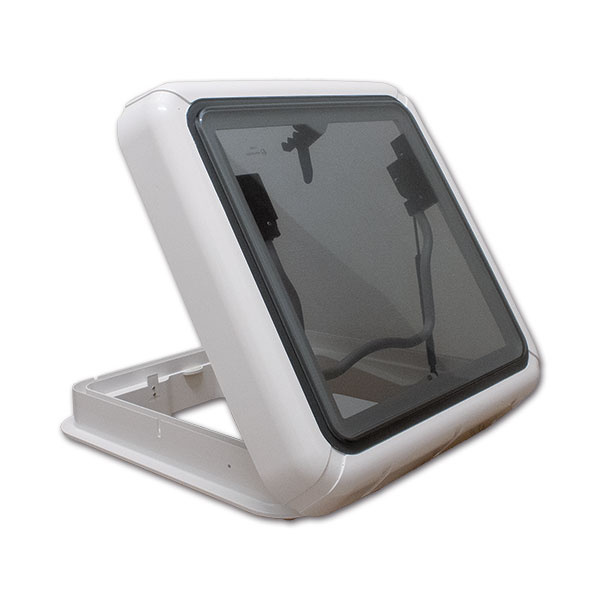

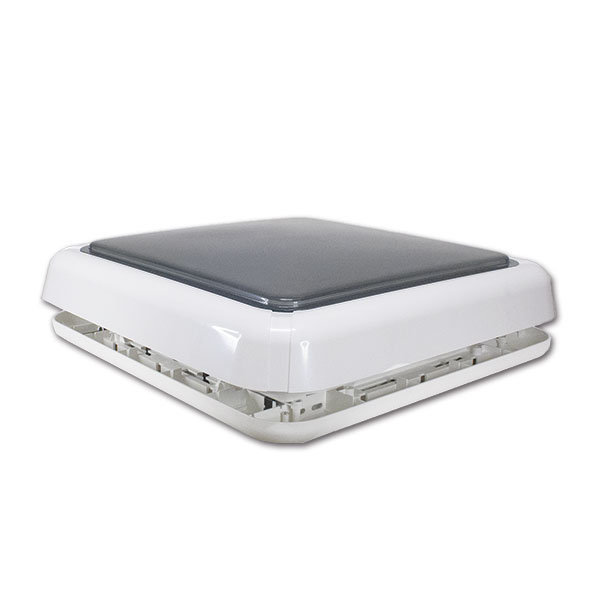

Dome and opening
- transparent double-glazed dome

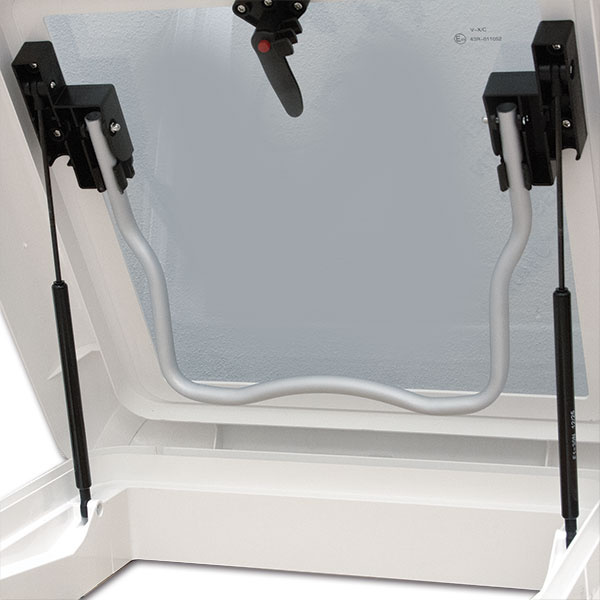

- bar opening with aluminium handle
- white outer frame
- external dimensions closed 527 x 527 x 90 mm
Installation
- roof cut-out 400 x 400 mm
- the cut-out is the same as on the Mini Heki (400 x 400 mm), so the ExtraVENT 40 Evo can replace a Mini Heki in an existing opening
- for roofs from 25 to 60 mm thick
- installation seals sold separately

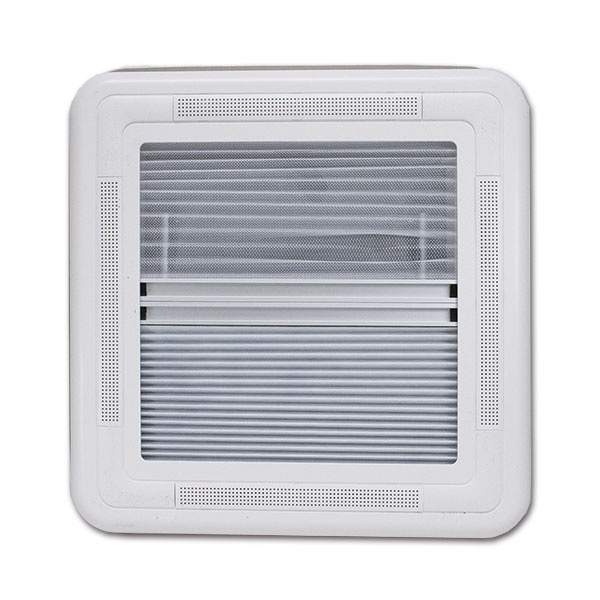

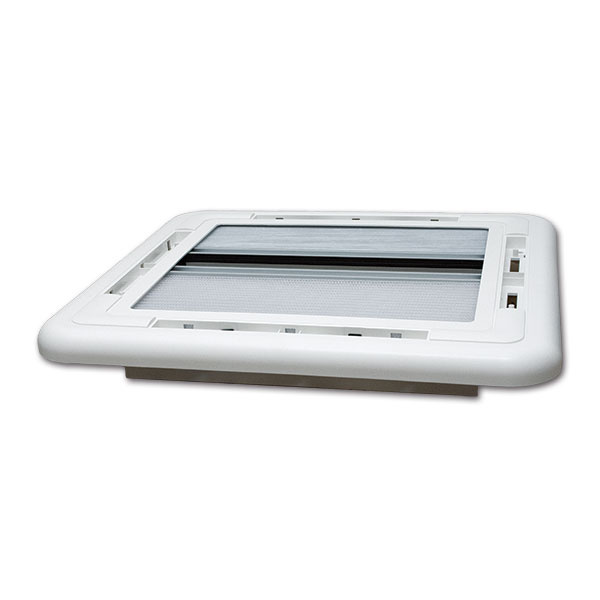

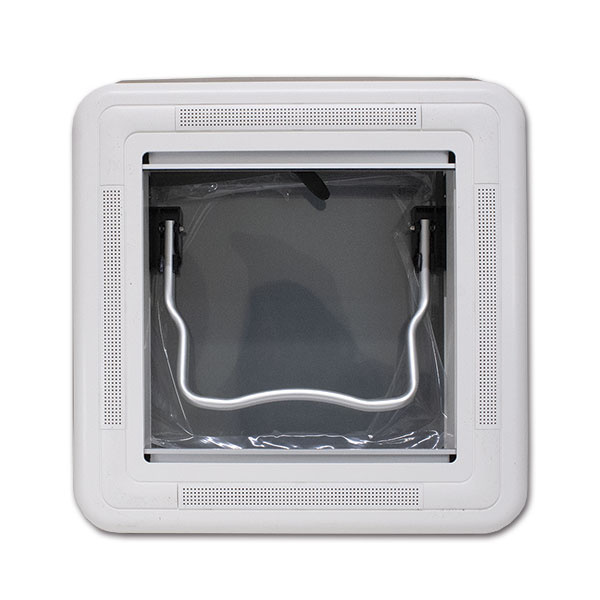

Interior frame
- pleated blackout blind
- pleated fly screen
- forced ventilation
Related products
- ExtraVENT 100 rooflight 96 x 65.5 cm with LED
- ExtraVENT 70 Evo rooflight 70 x 50 cm with LED
- ExtraVENT 40 rooflight 40 x 40 cm
- PlusVent 50 x 70 cm rooflight with blind and fly screen, without LED
Technical data
| Parameter | Value |
|---|---|
| Model | ExtraVENT 40 Evo |
| EAN | 8032793931942 |
| Rooflight size | 40 x 40 cm |
| Cut-out | 400 x 400 mm |
| Replacement for | Mini Heki - cut-out 400 x 400 mm, same size |
| Roof thickness | 25-60 mm |
| External dimensions (closed) | 527 x 527 x 90 mm |
| Dome | transparent, double glazed |
| Frame colour | white |
| Opening | bar with aluminium handle |
| Interior frame | pleated blind and fly screen |
| Lighting | none |
| Ventilation | forced |
| Seals | sold separately |
| Net weight | 5 kg |
Questions and answers
What cut-out is needed in the roof?
The cut-out is 400 x 400 mm.
What roof thickness does it fit?
Roofs from 25 to 60 mm thick.
Does the rooflight have lighting?
No. This model has no lighting.
Are the blind and fly screen included?
Yes. The pleated blackout blind and fly screen are part of the interior frame.
Will the ExtraVENT 40 Evo replace a Mini Heki?
Yes, in the existing opening. The ExtraVENT 40 Evo cut-out is 400 x 400 mm and the Mini Heki cut-out is 400 x 400 mm, the same size.
Are seals included?
No. Installation seals are sold separately.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland. ExtraVENT brand.
