FAWO city water connection with 1.1 bar pressure reducer and magnetic flap, white RAL 9010 - motorhome and caravan
ID produktu: 28876
- White FAWO city water connection for motorhomes and caravans. The built-in reducer lowers the water pressure to 1.1 bar, and the flap has a magnetic closure. Inside the vehicle it takes a 10 mm hose. Mounting cutout 85.5 x 90 mm.

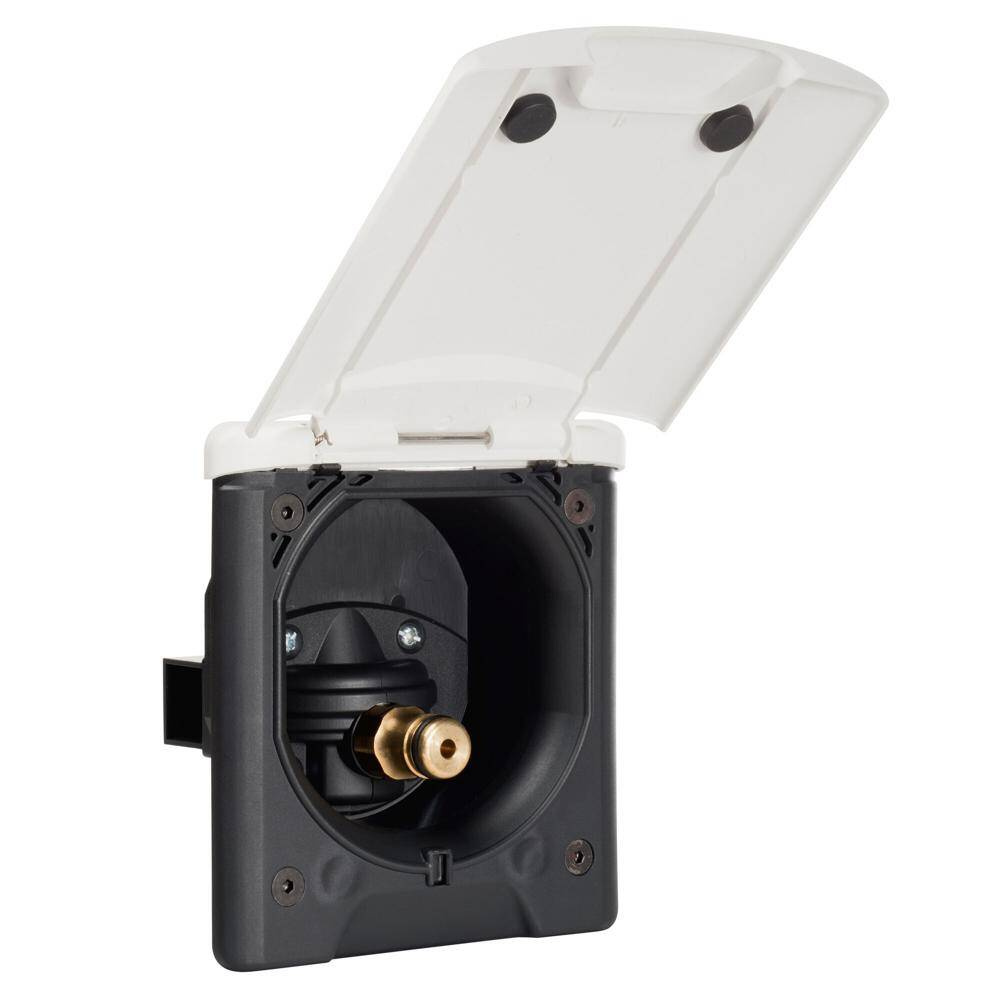

The FAWO city water connection is fitted in the side wall of a motorhome or caravan. With a hose connected to the campsite tap, mains water flows straight into the vehicle water system. The built-in reducer lowers the water pressure to 1.1 bar, and the flap with magnetic closure covers the connection when it is not in use.
Key features
- built-in pressure reducer - water pressure reduced to 1.1 bar
- hinged flap with magnetic closure
- thermoplastic housing
- pure white (RAL 9010)
- vehicle side: 10 mm hose spigot
- mounting cutout 85.5 x 90 mm, weight 490 g
Related products
- ABL city water connection with pressure reducer, white
- ABL city water connection with pressure reducer, black
- ABL city water connection with pressure reducer, light grey
- ABL city water connection with pressure reducer, anthracite
- Reich Colorado city water connection with 0.7 bar regulator, white
- Reich Smart Supply Colorado city water regulator module 0.7 bar
- Reich Smart Supply Colorado city water regulator module 1.4 bar
- Comet city water connection with float valve for canisters
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | FAWO |
| EAN | 4041431054558 |
| Colour | pure white (RAL 9010) |
| Material | thermoplastic |
| Pressure reducer | built-in, to 1.1 bar |
| Flap | hinged, magnetic closure |
| Vehicle connection | 10 mm hose spigot |
| Mounting cutout | 85.5 x 90 mm |
| Dimensions | 14.5 x 13 x 13 cm |
| Net weight | 490 g |
Questions and answers
What is a city water connection for?
It lets you connect the motorhome to the campsite tap with a hose. Mains water then flows straight into the vehicle water system.
What pressure does the reducer give?
The built-in reducer lowers the water pressure to 1.1 bar.
Which hose do I connect inside the vehicle?
On the vehicle side the connection has a 10 mm hose spigot.
What size hole do I need to cut?
The mounting cutout is 85.5 x 90 mm.
How does the flap close?
The flap is hinged and has a magnetic closure.
Manufacturer
FAWO GmbH Fahrzeugtechnik, Am Neuberg 10, 55268 Nieder-Olm, Germany.
ID produktu
28876
Brand
Color
Pure white
Dokładny rozmiar nominalny 1
85.5 mm
Wyciągnij rozmiar nominalny 2
90 mm
Gross weight
490 g
Net weight
490 g
Max wymiar pakowania
15 cm
Min wymiar pakowania
13 cm
Śr wymiar pakowania
13 cm
