Fiamma Awning F45s 260 VW T5/T6 Multivan Transporter Titanium Royal Grey
- Fiamma F45s 260 VW T5/T6 Multivan Transporter wall awning with Titanium case and Royal Grey canopy. Length 263 cm, extension 200 cm, 4.94 m² shade, 19.5 kg. Installation kit included, no drilling.
Fiamma F45s 260 VW T5/T6 Multivan Transporter is a special Volkswagen version of the F45s wall awning, delivered as standard with a dedicated installation kit. The aluminium case is Titanium and the vinyl canopy is Royal Grey. Awning length is 263 cm, extension 200 cm and shade surface 4.94 m². Fiamma item no.: 06290D01R.
Key features
- Fiamma F45s 260 wall awning, VW T5/T6 Multivan Transporter version

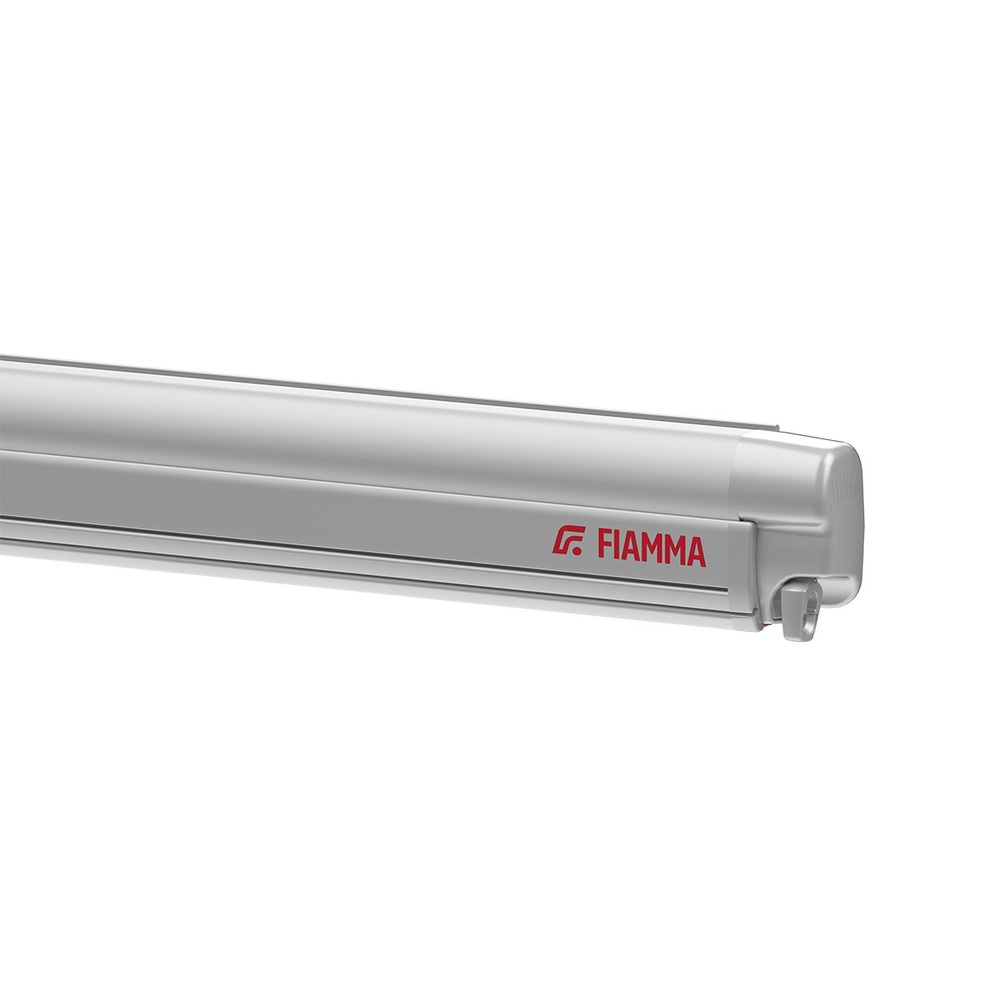

- extruded aluminium case, Titanium
- Royal Grey vinyl canopy, UV resistant, waterproof and washable
- installation kit for the VW C-rail included - 2 brackets, no drilling of the vehicle
- awning length 263 cm, canopy length 247 cm, extension 200 cm
- winch operation with crank handle, electric motor optional
- arms reinforced with double steel cable, Dual Shock Absorber, Presto Fix closing adjustment
- double guide in the lead bar for panels and accessories
Installation and fit

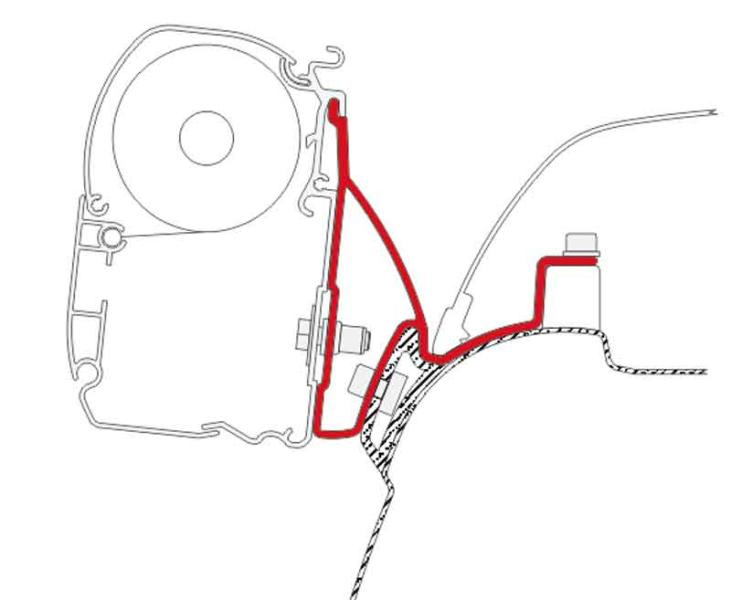

Version for VW T5, T6 and T6.1 Multivan and Transporter with short wheel base (vehicle length 4892 mm, wheel base 3000 mm) fitted with the original Volkswagen aluminium C-rail. The installation kit with 2 brackets comes as standard with the awning - no drilling required. The awning is installed on the right side of the vehicle (left-hand drive vehicles). The case is pre-drilled for the supplied brackets. For vehicles without a C-rail, with long wheel base or for installation on the left side (UK version) Fiamma offers other awning versions or adapters.
Related products
- F45s 260 awning VW T5/T6 California, Polar White
- F45s 260 awning VW T5/T6 California, Deep Black
- F45s 260 awning VW T5/T6 Multivan/Transporter, Deep Black
- F45s 300 awning VW T5/T6 Multivan/Transporter, long wheel base, Deep Black
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Fiamma |
| Model | F45s 260 VW T5/T6 Multivan Transporter |
| Fiamma item no. | 06290D01R |
| EAN | 8004815355043 |
| Case colour | Titanium |
| Canopy colour | Royal Grey |
| Vehicle | VW T5, T6, T6.1 Multivan / Transporter with C-rail, short wheel base 3000 mm |
| Mounting side | right side of the vehicle |
| Awning length (A) | 263 cm |
| Canopy length (B) | 247 cm |
| Extension (C) | 200 cm |
| Shade surface | 4.94 m² |
| Weight | 19.5 kg |
| Case size | 85 x 136 mm |
| Installation kit | included, 2 brackets, no drilling |
| Operation | crank handle, electric motor optional |
Questions and answers
Does it fit a VW without the C-rail?
This version needs the original VW C-rail. For a vehicle without the C-rail Fiamma provides the standard F45s 260 with a separate adapter.
Do I need to drill the vehicle?
No. According to Fiamma the installation kit with 2 brackets is included and no drilling of the vehicle is required.
What is the extension?
Extension is 200 cm, awning length 263 cm and shade surface 4.94 m².
Can a motor be added?
Yes. The awning is operated with a crank handle, and a Fiamma electric motor is available as an option.
Which colours are available?
This listing is the Titanium case with Royal Grey canopy. Fiamma offers the VW T5/T6 version in other case colours too, each with Royal Grey canopy.
Manufacturer
Fiamma S.p.A., Via San Rocco 56, 21010 Cardano al Campo (VA), Italy.
