Fiamma Carry-Bike Garage Pack Plus - bike rack for 2-3 bikes with organizers for the motorhome garage
- Fiamma kit for the motorhome rear garage: 200 cm wall frame, 128 cm wheel rails, Bike-Block holders and 2 organizers. 2 bikes as standard, max. 3. Load up to 50 kg, weight 10.5 kg.

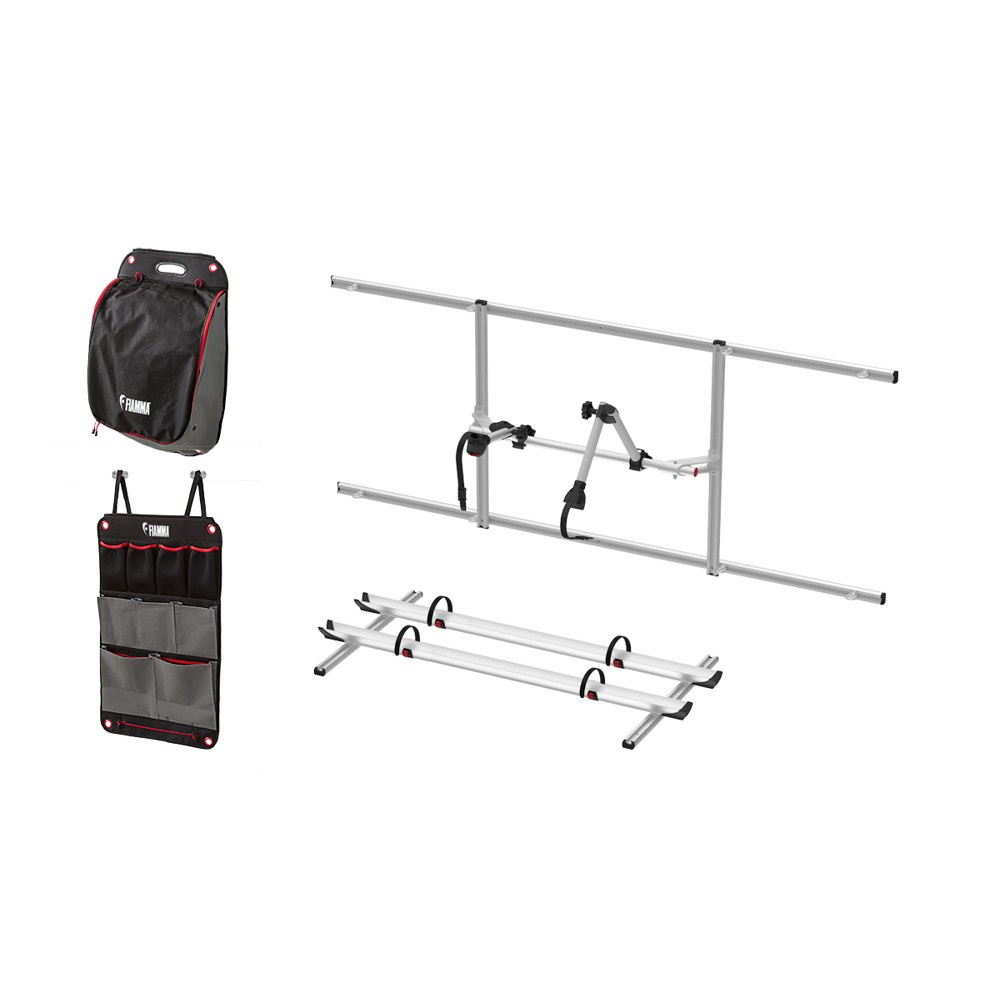

Fiamma Carry-Bike Garage Pack Plus is a complete kit for the motorhome rear garage: a structure for fixing bikes plus Organizer line storage for small items. The wall frame is 200 cm wide and the wheel rails are 128 cm long. It carries 2 bikes as standard and, according to the Fiamma instructions, up to 3. Fiamma item no.: 98655B911.
Key features
- garage kit - bikes and luggage in one system

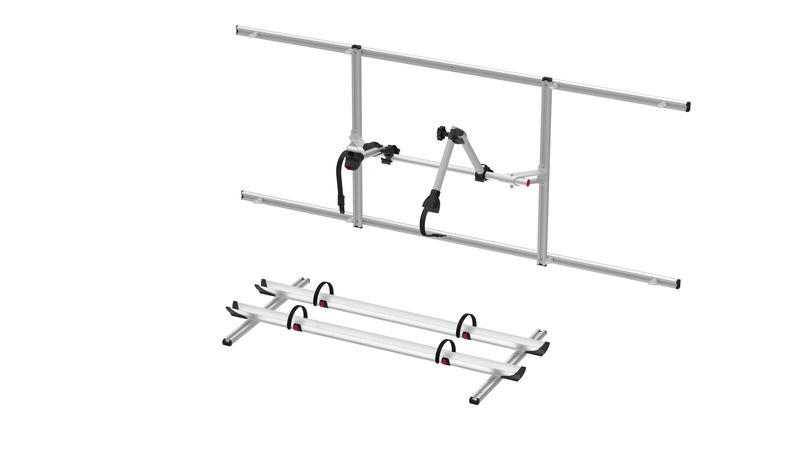

- 200 cm wall frame with Bike-Block holders for the bike frame

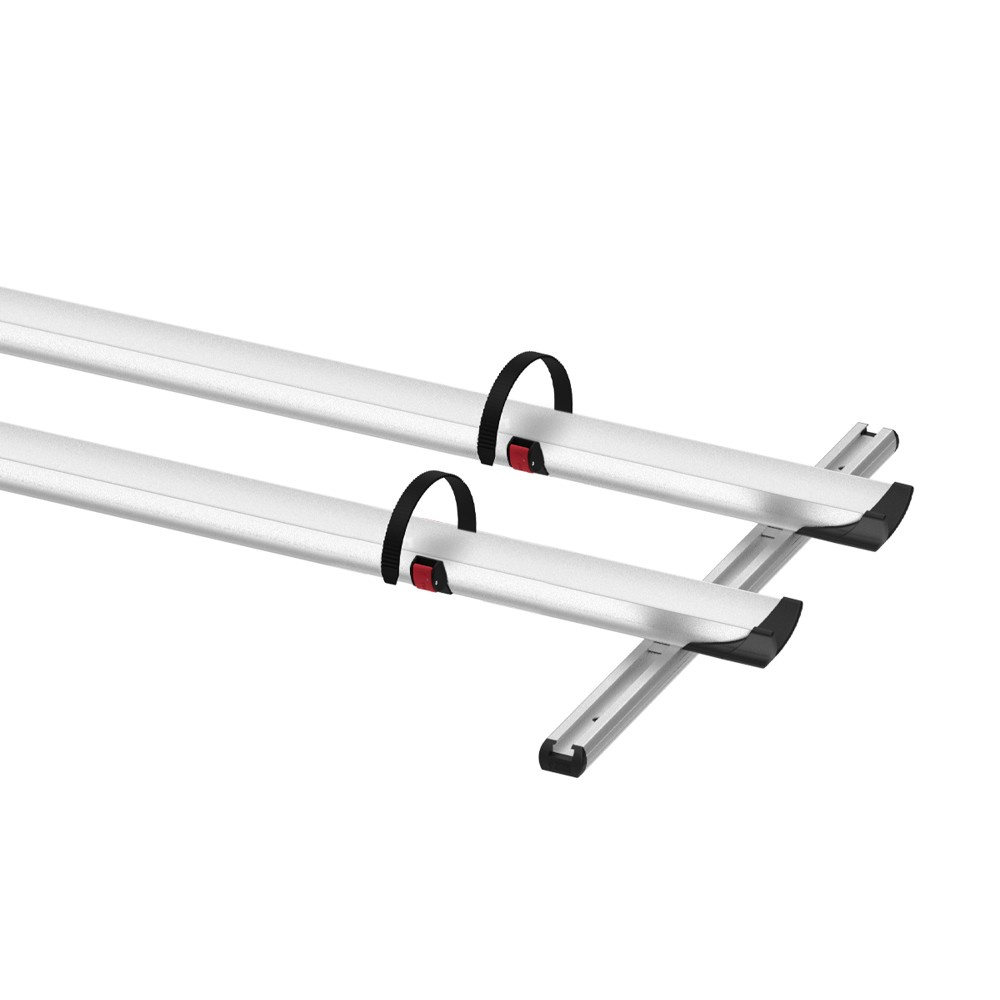

- 128 cm wheel rails with straps to secure the wheels
- 2 Organizer line organizers hung on the frame
- 8 galvanised eye rings for securing luggage with straps
- 2 bikes as standard, max. 3
- max. load 50 kg, kit weight 10.5 kg
Dimensions and installation

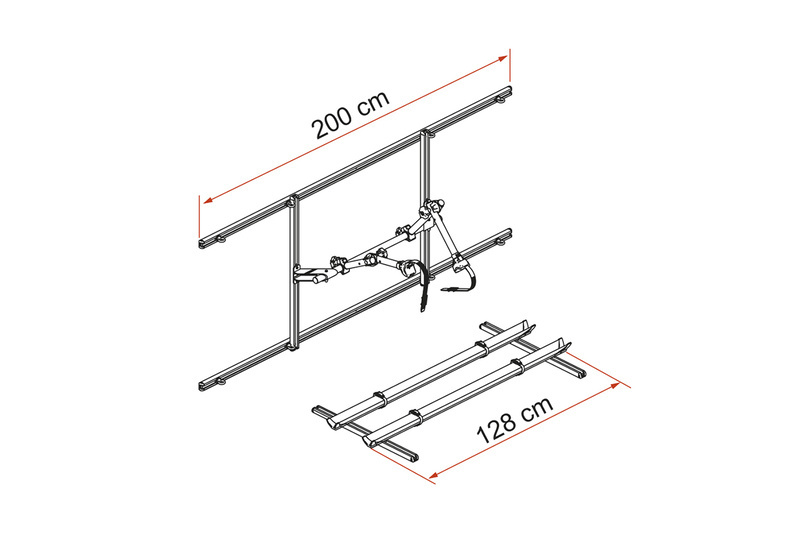

The frame is 200 cm wide and the wheel rails are 128 cm long. Two mounting rails are screwed to the garage wall 750 mm apart, in 4.8 mm drilled holes. Wall screws are not included - they are chosen to suit the vehicle wall. Fiamma requires checking that the wall is strong enough, reinforcing it if needed, and recommends installation by qualified personnel.
Fixing the bikes

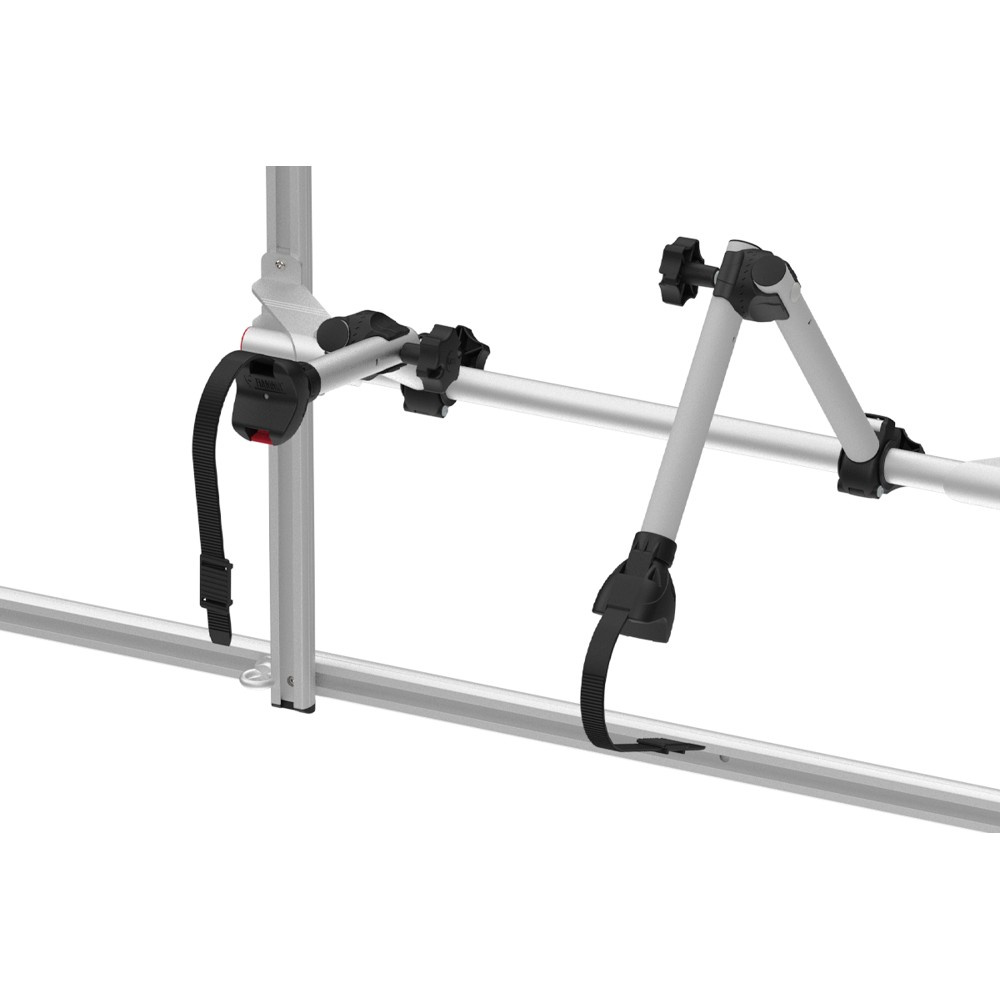

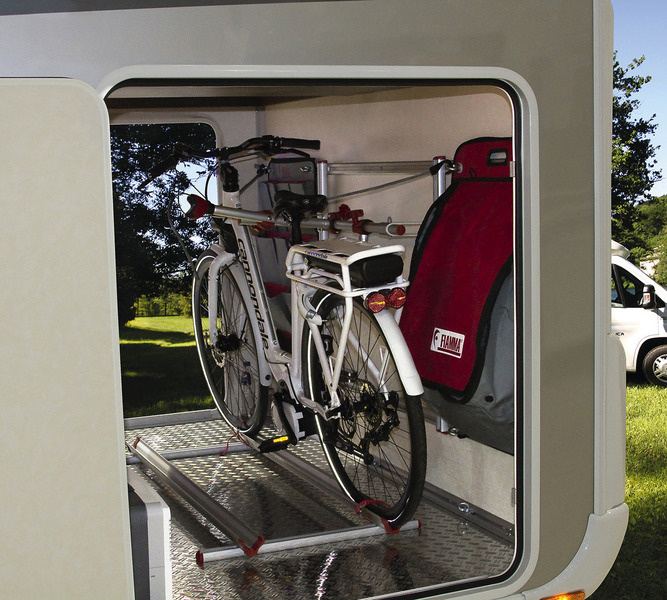

The bike wheels stand in rails on the garage floor and are held with straps. The bike frame is held by Bike-Block holders on the support bar of the wall frame. A third bike can be carried with an additional rail - the Fiamma instructions list Rail Quick Pro 128 cm (98656-993), Rail Premium 128 cm (98656M131) and Rail Premium XL 139 cm (98656M132) as accessories.
Organizers and luggage
The kit includes 2 Organizer line organizers fixed to the frame with galvanised eye rings. The same rings are used to strap luggage in the garage. Without the organizers the rings are mounted on the rail with the supplied washers.
Kit contents
- wall frame made of mounting rails and profiles
- 2 wheel rails with 4 straps
- 2 Bike-Block frame holders and a support bar
- 2 Organizer line organizers
- 8 galvanised eye rings with washers
- fasteners for assembling the frame (screws for the vehicle wall not included)
Photos
Related products
- Fiamma Carry-Bike Garage Plus rack for the motorhome garage
- Fiamma Carry-Bike Garage Standard rack for the motorhome garage
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Fiamma |
| Model | Carry-Bike Garage Pack Plus |
| Fiamma item no. | 98655B911 |
| EAN | 8004815437626 |
| Use | motorhome rear garage |
| Number of bikes | 2 as standard, max. 3 |
| E-bikes | up to 2 |
| Max. load | 50 kg |
| Wall frame width | 200 cm |
| Wheel rail length | 128 cm |
| Wall rail spacing | 750 mm |
| Mounting holes | 4.8 mm diameter, wall screws not included |
| Organizers | 2 pcs, Organizer line |
| Luggage eye rings | 8 pcs, galvanised |
| Weight | 10.5 kg |
Questions and answers
How many bikes can I carry?
2 as standard. According to the Fiamma instructions up to 3 with an additional rail, e.g. Rail Quick Pro 128 cm.
Is it suitable for e-bikes?
Yes, according to Fiamma up to 2 e-bikes, within the kit maximum load of 50 kg.
Do I need to drill the garage wall?
Yes. The rails are screwed to the garage wall in 4.8 mm holes. Screws are not included because they must suit the vehicle wall.
What are the dimensions?
The wall frame is 200 cm wide, the wheel rails are 128 cm long and the wall rails are mounted 750 mm apart.
Can I use it without the organizers?
Yes. Without the organizers the eye rings are fixed to the rail with the supplied washers and used to strap luggage.
Manufacturer
Fiamma S.p.A., Via San Rocco 56, 21010 Cardano al Campo (VA), Italy.
