Fiamma Carry-Bike Pro C motorhome rear wall bike rack, silver - for 2 to 4 bikes, 60 kg

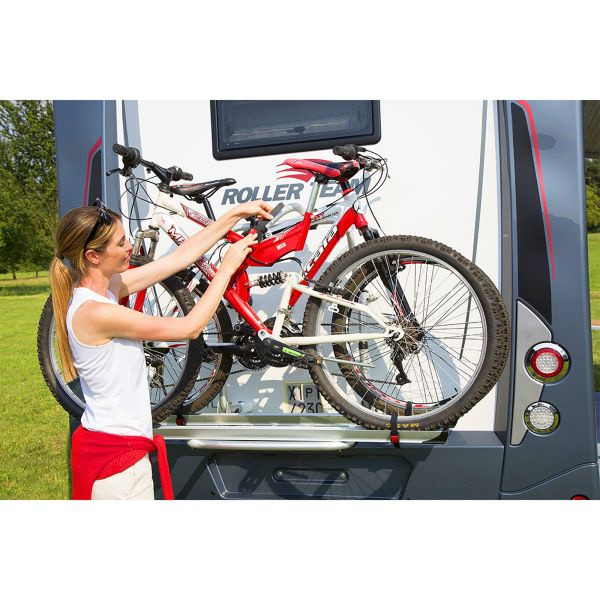

- Fiamma Carry-Bike Pro C bike rack mounted below the rear window of a motorhome. 2 bikes as standard, up to 4 with extra rails, max 2 e-bikes. Load capacity 60 kg, weight 9 kg.

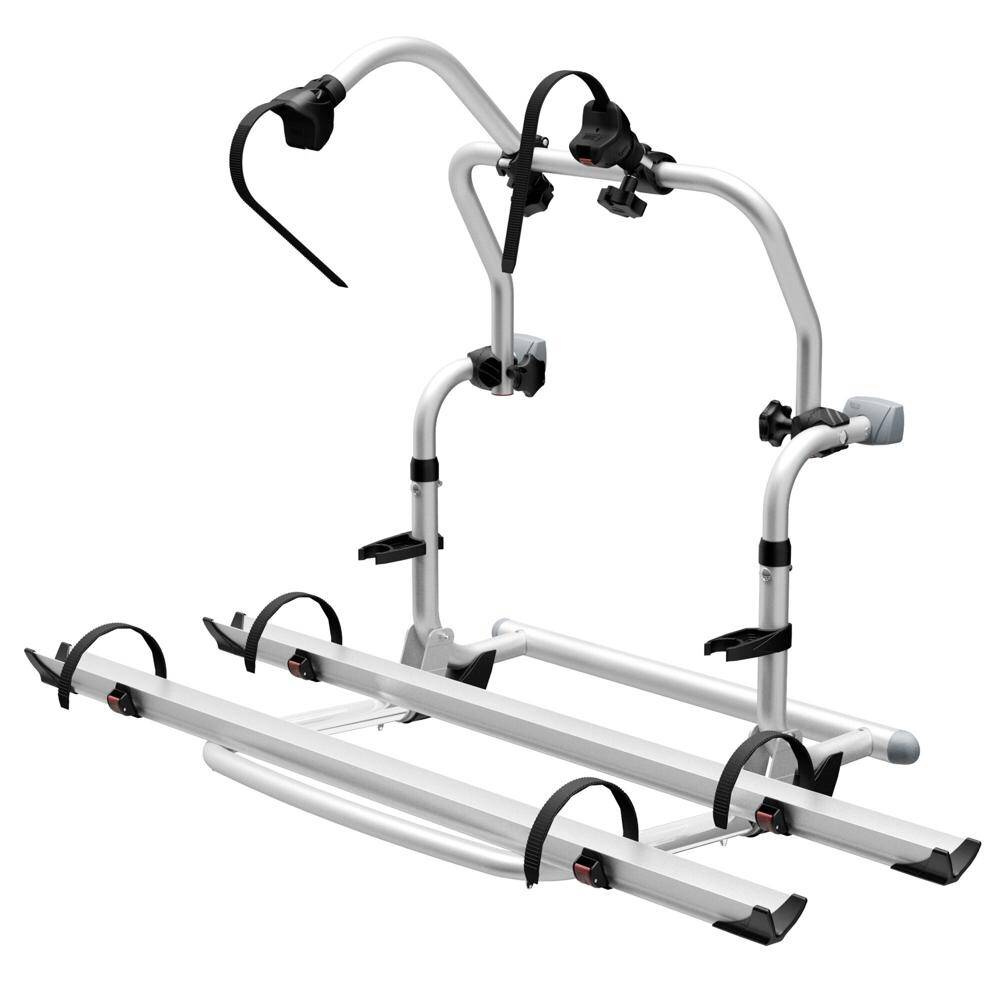

Fiamma Carry-Bike Pro C is a rear wall bike rack for motorhomes, mounted below the rear window. As standard it carries 2 bikes, and with extra Rail Plus rails up to 4 bikes, including max 2 e-bikes. Load capacity is 60 kg, and the oval 6060 aluminium frame weighs 9 kg.
Key features
- fits on the motorhome rear wall below the window
- 2 bikes as standard, max 4 with extra Rail Plus rails
- max 2 e-bikes
- load capacity 60 kg
- oval 6060 aluminium tubes
- telescopic rail support base with block
- Rail Plus rails 15 cm apart
- bikes locked with Bike-Block Pro S holders
- TÜV tested
Load distribution
With 2 or 3 bikes a single rail carries max 30 kg. With 4 bikes Fiamma specifies 20, 17, 12 and 11 kg, counting from the rail nearest the wall. Place the heaviest bike nearest the vehicle.
Safety
- before fitting, check the wall strength and the permitted axle loads of the vehicle
- remove the batteries from e-bikes
- check the rack and bike fastening periodically
- reduce speed in strong wind
Photos
Related products
- Fiamma Rail Plus bike rail 128 cm, silver
- Fiamma Bike-Block Pro S1 bike holder, silver
- Fiamma Bike-Block Pro S3 bike holder, silver
- Rail Plus rail cover
Technical data
| Parameter | Value |
|---|---|
| Brand | Fiamma |
| Model | Carry-Bike Pro C |
| Fiamma code | 02096-10- |
| Colour | silver |
| Mounting | motorhome rear wall, below the window |
| Number of bikes | 2 standard, max 4 |
| E-bikes | max 2 |
| Load capacity | 60 kg |
| Weight | 9 kg |

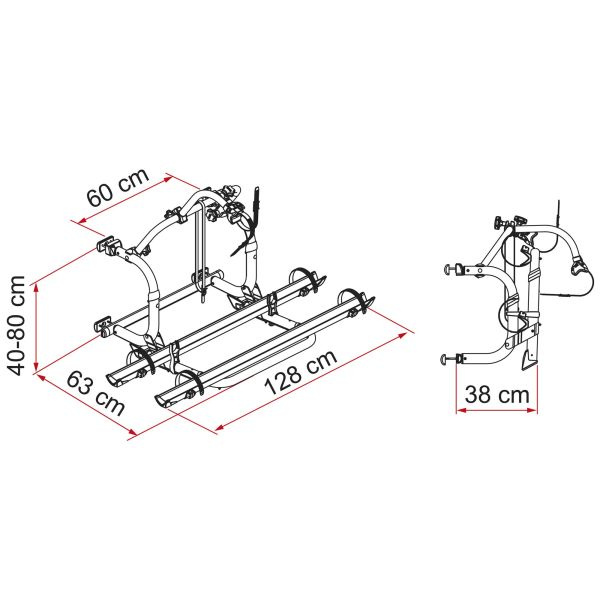

| Dimensions | 128 x 63 x 40 cm |
| Vertical mounting distance | 40-80 cm |
| Horizontal mounting distance | 60 cm |
| Rail spacing | 15 cm |
| Material | aluminium 6060 |
| Bike fastening | Bike-Block Pro S |
| Approval | TÜV |
Questions and answers
How many bikes can it carry?
2 as standard, up to 4 with extra Rail Plus rails and Bike-Block Pro holders.
Can I carry e-bikes?
Yes, max 2, with batteries removed and within the 60 kg capacity.
Where is the rack fitted?
On the motorhome rear wall, below the rear window.
How much can one rail carry?
With 2 or 3 bikes max 30 kg per rail.
Manufacturer
Fiamma S.p.A., Via San Rocco 56, 21010 Cardano al Campo (VA), Italy.
