Fiamma Kit Turbo-Vent F 07501A01 - 12 V 36 W fan kit for Vent F Pro rooflight, Polar Control thermostat, 35 m³/min
ID produktu: 43029
- Fiamma Kit Turbo-Vent F 07501A01: 12 V fan kit for the Vent F Pro rooflight. 36 W, up to 35 m³/min, extraction and intake, variable speed, Polar Control thermostat. 35 x 35 x 7.3 cm, 2 kg.

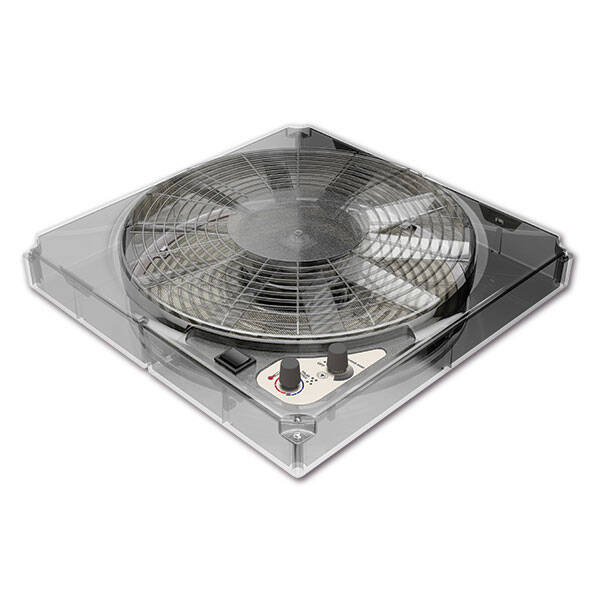

The Fiamma Kit Turbo-Vent F (07501A01) is a 12 V fan kit installed in the Fiamma Vent F Pro 40 x 40 cm rooflight. Once fitted, the rooflight works as a roof fan: it extracts warm, humid air from the motorhome or caravan or draws in fresh air from outside. This is the standard version with knob control and Polar Control thermostat.
How it works
- 30 cm fan, air flow up to 35 m³/min
- extraction (OUT) or intake (IN) mode
- variable speed from OFF to MAX with a knob
- the Polar Control thermostat switches the ventilation on automatically depending on the set temperature and the outdoor temperature
- 36 W at 12 V, current draw up to 3 A

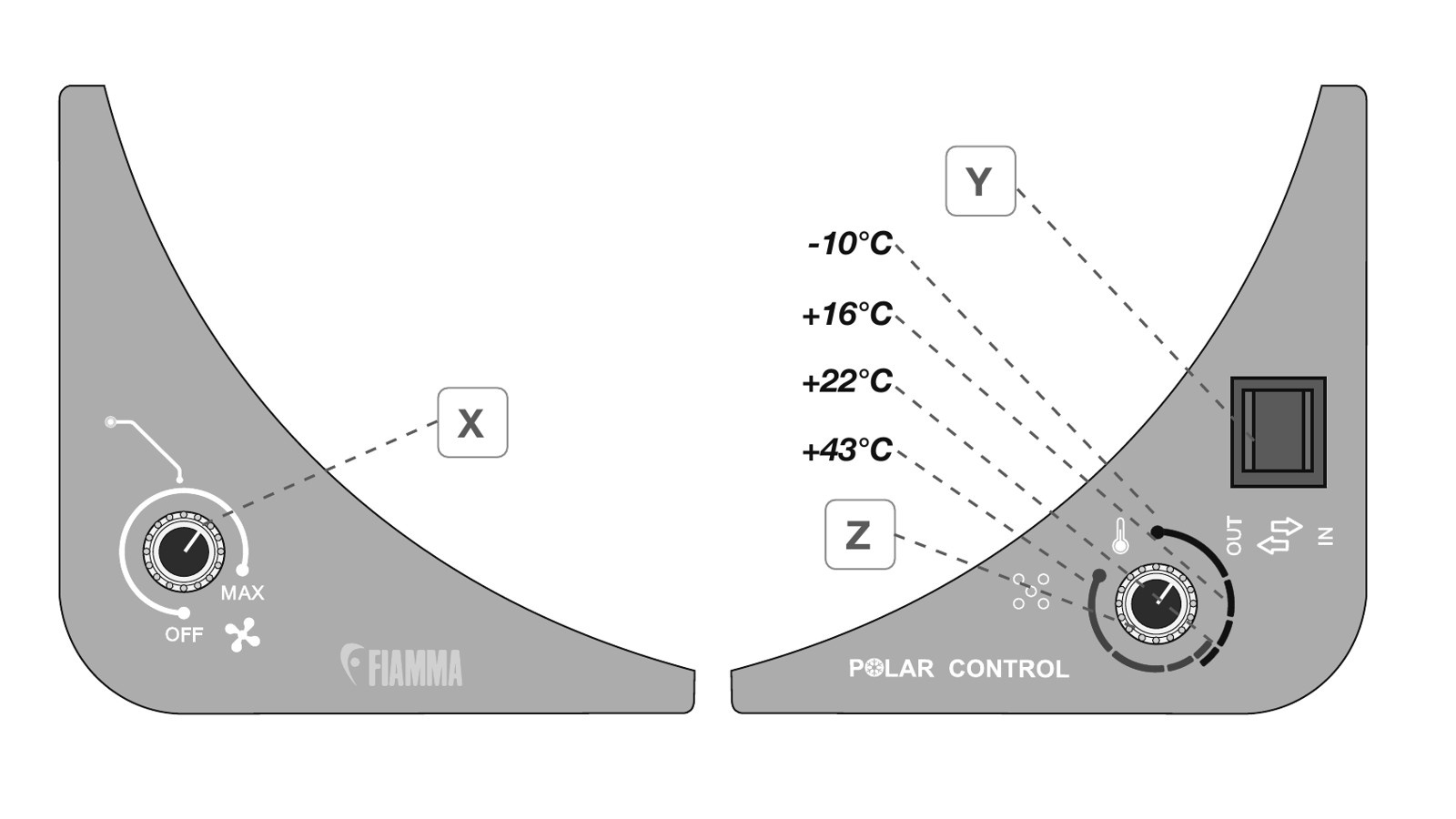

Control panel
- fan speed knob (OFF - MAX)
- direction switch: extraction OUT or intake IN
- Polar Control knob with a scale from about -10 °C to +43 °C to set the approximate required temperature

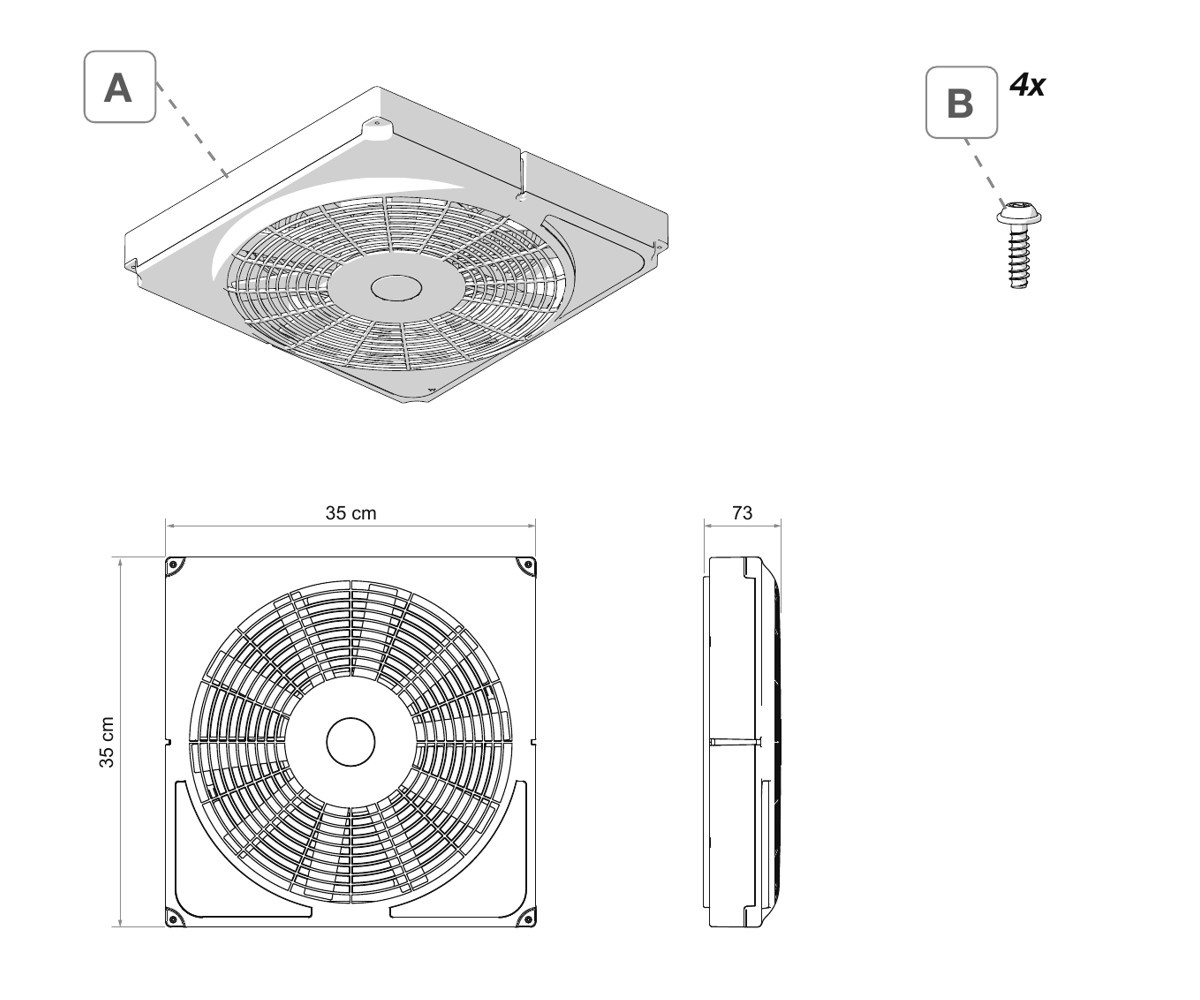

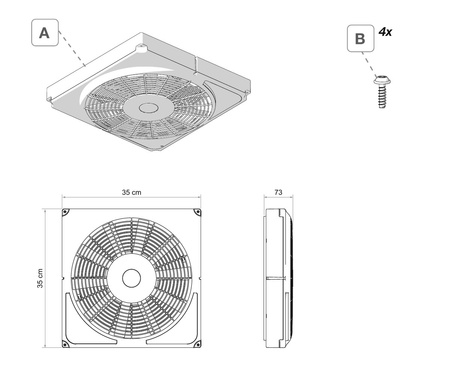

Dimensions and installation
- kit dimensions: 35 x 35 x 7.3 cm
- installed in the Fiamma Vent F Pro rooflight, 4 screws included, tightening torque max. 1.5 Nm
- 12 V supply taken directly from the battery, do not connect to 230 V
- check the polarity when connecting
- wire section 1 mm² (17 AWG), auto-resettable 5 A fuse
Use
- check that the rooflight is closed before driving, do not open it while driving, in strong wind or rain
- check the screws from time to time, especially after the first kilometres after installation
- clean with a mild detergent and a soft cloth, no alcohol, solvents or abrasives
Rooflight and other versions
- Fiamma Vent F Pro 40 x 40 cm Crystal rooflight (07380-02) that the kit fits
- Kit Turbo-Vent F Premium (07501-01) - version with touch control and Polar Control thermostat
- replacement Crystal cover for Vent F Pro
Technical data
| Parameter | Value |
|---|---|
| Brand | Fiamma |
| Model | Kit Turbo-Vent F |
| Item number | 07501A01 |
| EAN | 8004815350970 |
| Type | fan kit for rooflight |
| Fits | Fiamma Vent F Pro |
| Supply voltage | 12 V (8-16 V) |
| Power | 36 W |
| Max. current | 3 A |
| Max. air flow | 35 m³/min |
| Fan diameter | 30 cm |
| Direction | intake and extraction |
| Control | knobs, direction switch |
| Thermostat | Polar Control |
| Fuse | auto-resettable 5 A |
| Wire section | 1 mm² (17 AWG) |
| Operating temperature | -10 °C to +70 °C |
| Storage temperature | -20 °C to +80 °C |
| Dimensions | 35 x 35 x 7.3 cm |
| Weight | 2.0 kg |
| Approval | E24 10R-05 0530, CE, UKCA |
Questions and answers
Which rooflight does the kit fit?
The Fiamma Vent F Pro 40 x 40 cm rooflight.
How is it different from the Kit Turbo-Vent F Premium?
This kit has knobs and the Polar Control thermostat. The Premium version also has a touch control panel.
Can the fan blow air in?
Yes, a switch selects extraction (OUT) or intake (IN).
How is it powered?
With 12 V taken directly from the battery, using 1 mm² wire. Do not connect it to 230 V.
How much current does it draw?
It is rated at 36 W, with a maximum current of 3 A.
Manufacturer
Fiamma S.p.A., Via San Rocco 56, 21010 Cardano al Campo (VA), Italy.
