Fiamma Vent F Pro 40 x 40 cm Crystal rooflight 07380-02 - fly screen, pleated blind, roof 28-55 mm, motorhome and caravan
- Fiamma Vent F Pro Crystal 07380-02: 40 x 40 cm rooflight for motorhomes, caravans and vans. Handwheel opening, fly screen and pleated blind, roof 28-55 mm, 4.7 kg. Can be fitted with the Kit Turbo-Vent F fan.

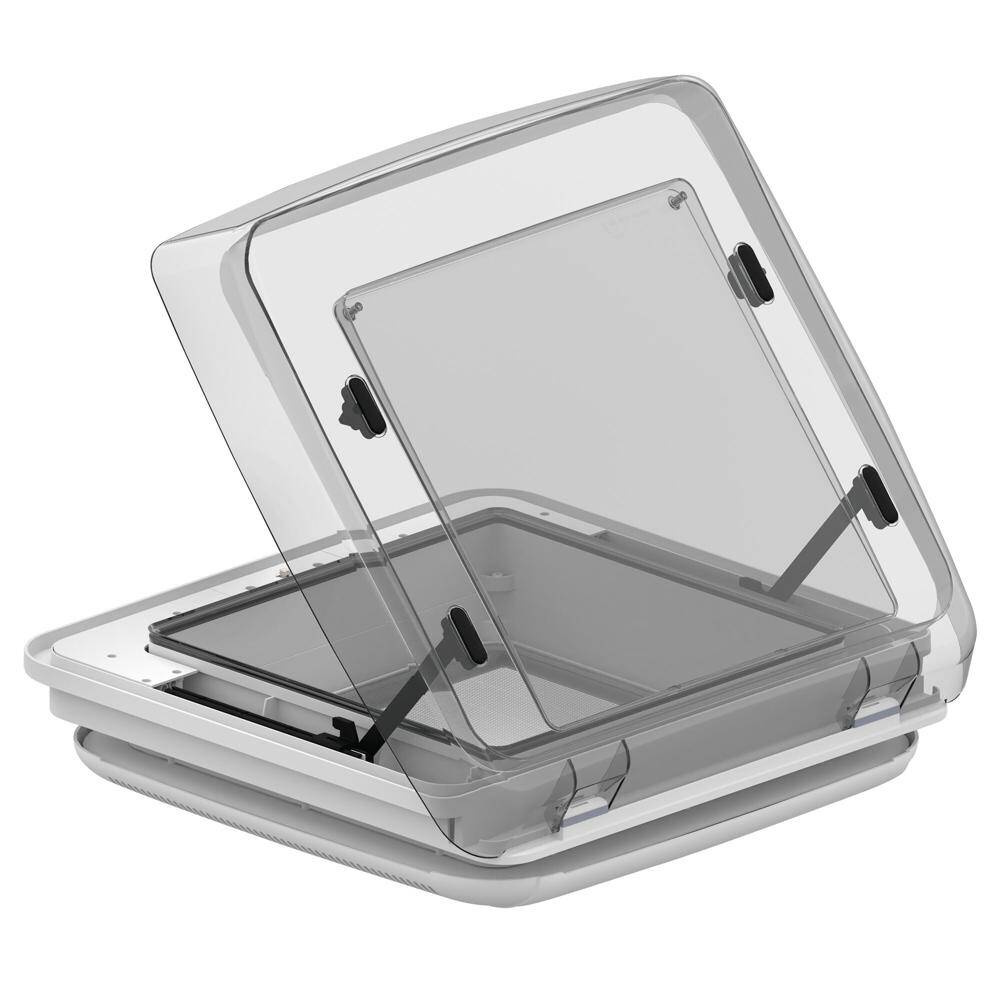

The Fiamma Vent F Pro is a 40 x 40 cm rooflight with a clear Crystal cover for motorhomes, caravans and van conversions. It opens with a handwheel from inside and comes with a removable fly screen and a pleated blackout blind as standard. The inner and outer frames are neutral white. The rooflight has no fan, but it can be upgraded later with a 12 V Kit Turbo-Vent F.
Design and features
- clear Crystal cover, inner and outer frames in white
- aerodynamic shape - according to the manufacturer no spoiler is needed
- double opening arm for a stable cover
- opened and closed with a handwheel, fully open after 7 turns, an audible click confirms it is closed
- removable fly screen and pleated blackout blind
- permanent ventilation of 100 cm², also with the cover closed
- approval E11 43R-01 7019 (ECE R43)

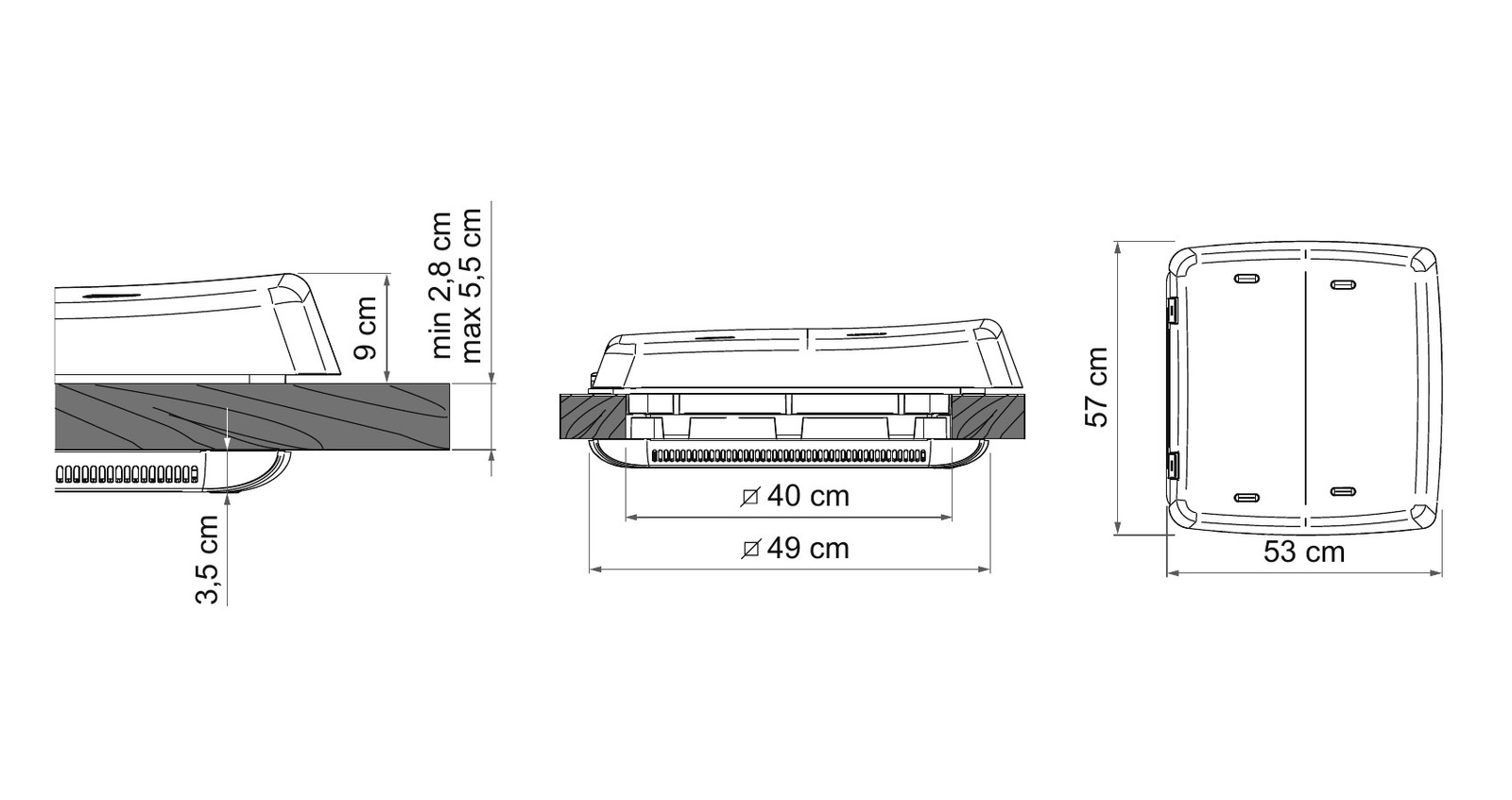

Dimensions and installation
- roof cut-out: 40 x 40 cm square
- roof thickness: 28-55 mm
- outside dimensions: 56.6 x 53.1 x 9.2 cm, height above the roof 9 cm
- inner frame: 49 x 48.6 x 3.5 cm, inside light 34.4 x 34.4 cm
- sandwich installation: outer frame on top, inner frame from inside, no extra holes in the roof
- screws 3.5 x 30 mm for roofs 28-44 mm and 3.5 x 45 mm for roofs 44-55 mm, tightening torque max. 1.5 Nm
- outer frame sealed with a sealant bead at least 10 mm wide, hinges facing the front of the vehicle

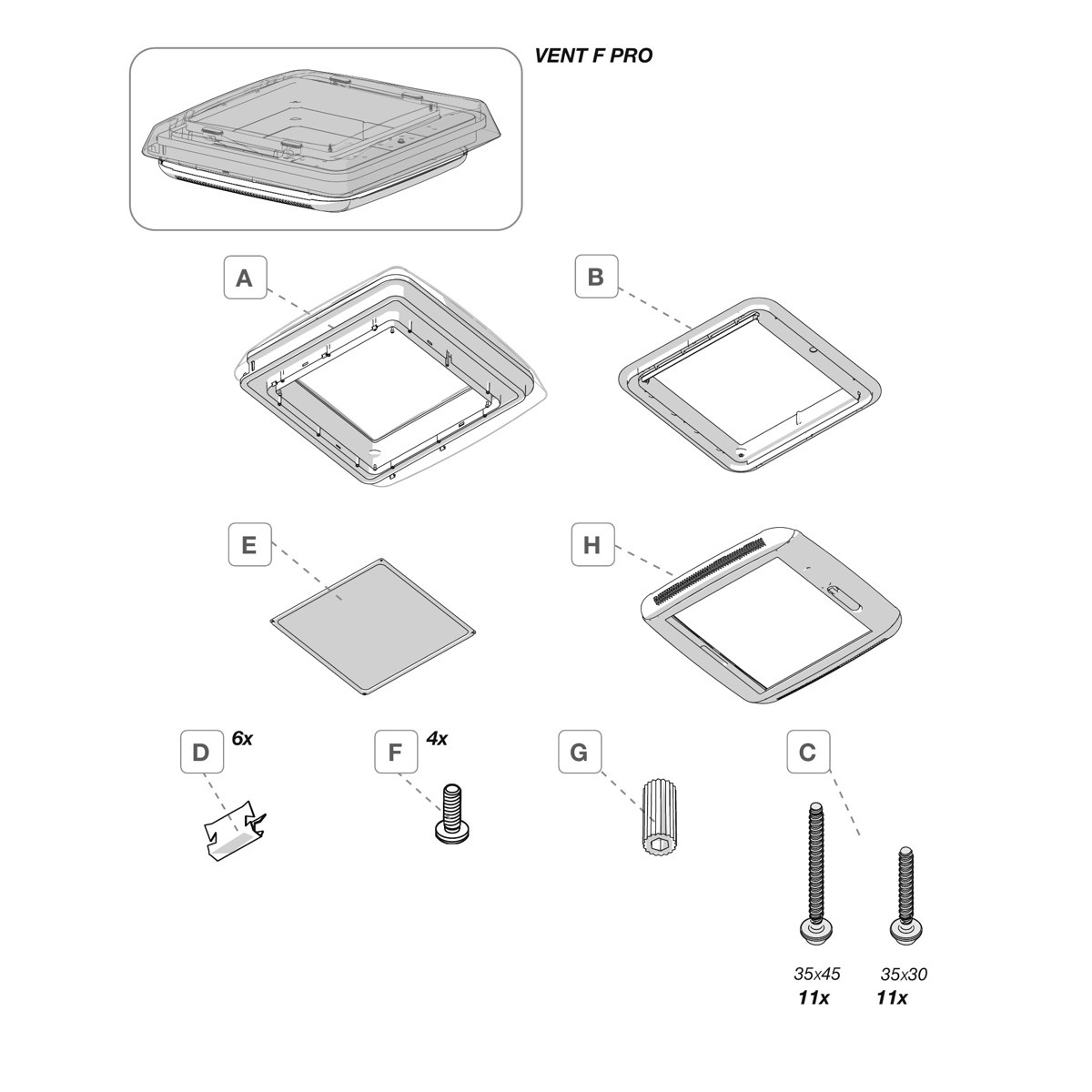

Package contents
- rooflight with outer frame and Crystal cover
- inner frame
- fly screen
- frame with pleated blind
- 6 springs for the blind frame
- 4 M4 x 12 screws for the fly screen
- handwheel joint
- 11 screws 3.5 x 30 mm and 11 screws 3.5 x 45 mm
Use and care
- check that the rooflight is closed before driving, do not open it while driving, in strong wind or rain
- do not walk on the cover, remove snow and ice from it
- in strong sunlight close the blind only two thirds of the way to avoid heat build-up
- clean the Crystal cover with an acrylic glass cleaner and a soft cloth, no alcohol, solvents or abrasives
- wash the fly screen with water and a mild detergent
- check the screws from time to time, especially after the first kilometres after installation
Fan, accessories and parts
- Kit Turbo-Vent F Premium 12 V (07501-01) - 35 m³/min fan with touch control and Polar Control thermostat
- Kit Turbo-Vent F 12 V (07501A01) - fan with Polar Control thermostat
- replacement Crystal cover for Vent F Pro
- outer frame for Vent F Pro in ivory
- inner frame with blind for Vent F Pro in ivory
- Spoiler 40 for 40 x 40 cm rooflights
- Spoiler Universal 28-110 cm
- other Fiamma 40 x 40 cm rooflights: Vent 40 Crystal, Turbo-Vent Premium Crystal with fan
Technical data
| Parameter | Value |
|---|---|
| Brand | Fiamma |
| Model | Vent F Pro |
| Item number | 07380-02 |
| EAN | 8004815423193 |
| Type | rooflight without fan |
| Cover | Crystal (clear) |
| Frame colour | white |
| Roof cut-out | 40 x 40 cm |
| Outside dimensions | 56.6 x 53.1 x 9.2 cm |
| Height above roof | 9 cm |
| Inner frame | 49 x 48.6 x 3.5 cm |
| Inside light | 34.4 x 34.4 cm |
| Roof thickness | 28-55 mm |
| Permanent ventilation | 100 cm² |
| Opening | handwheel, 7 turns |
| Equipment | removable fly screen, pleated blackout blind |
| Installation | sandwich, 11 screws |
| Approval | E11 43R-01 7019 (ECE R43) |
| Weight | 4.7 kg |
| Optional fan | Kit Turbo-Vent F or Kit Turbo-Vent F Premium, 12 V |
| Use | motorhome, caravan, van |
Questions and answers
Does the Vent F Pro have a fan?
No, the rooflight is not motorised. It can be upgraded with the 12 V Kit Turbo-Vent F or Kit Turbo-Vent F Premium.
What roof cut-out is needed?
A 40 x 40 cm square cut-out.
What roof thickness does it fit?
Roofs 28-55 mm thick. Use the 3.5 x 30 mm screws up to 44 mm and the 3.5 x 45 mm screws above 44 mm. Both are included.
Do I need a spoiler?
According to the manufacturer the aerodynamic shape means no spoiler is needed. Spoiler 40 and Spoiler Universal are available as accessories.
Does it ventilate when closed?
Yes, it has a permanent ventilation opening of 100 cm².
How do I clean the cover?
With an acrylic glass cleaner and a soft cloth. Do not use alcohol, solvents, glass cleaners or abrasives.
Manufacturer
Fiamma S.p.A., Via San Rocco 56, 21010 Cardano al Campo (VA), Italy.
