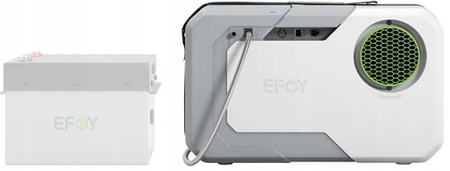

Fuel Cell EFOY 150 BT set 12/24V DC 75W
- Long-term self-sufficiency for professionals
Fuel Cell EFOY 150 BT set 12/24V DC 75W
Already proven in a wide range of stationary and mobile industrial applications – now also for the superior travel experience with high energy demand. With a max. output of 75 W and a max. charging capacity of 60 Ah per day, the EFOY 150 powerfully provides environmentally friendly power.
Enjoy your freedom with the environmentally friendly and quiet power supply for on the road, whether camping, on the boat, at an event, outdoors or on a road trip. With EFOY you are self-sufficient in any weather. Your freedom. Your power.
Your freedom. Your power.
With the EFOY fuel cell you always have your own compact power generator with you and are completely independent off the power grid. The EFOY fully automatically recharges all common 12 or 24 V battery types reliably, quietly and in an environmentally friendly way. Whether in a motor home, on a boat or in a garden shed, or cabin, you decide where the EFOY will be used.
Lots of power in a small space.
Weighing only about 6 kg (13.2 lbs) and 27.5 cm high, the EFOY is a space miracle. Thanks to its compact design, the EFOY can be installed anywhere to save space.
Power in all weathers
No more sweating in the sun. The EFOY Fuel cell always produces power, unlike solar panels or wind generators, which means that even in bad weather, or during long periods of winter, you are always prepared. You can also combine solar with your EFOY Fuel cell for more options.
Completely worry-free!
The EFOY recharges your battery fully automatically and requires no maintenance to do so. It switches on when the battery needs recharging and switches off again when the battery is full, you only have to change the fuel cartridge when it’s empty.
Enjoy the quiet!
The EFOY produces quiet power and is as loud as a laptop’s fan. Noise pollution from noisy diesel generators is a thing of the past.
The fuel
EFOY fuel cells need our EFOY fuel cartridges to generate electricity. They contain high-purity methanol* and are a safety-tested system specially developed for EFOY fuel cells. The EFOY fuel cartridge can be changed in seconds.
For the sake of the environment
The EFOY generates environmentally friendly electricity. In a chemical process; only waste heat and water vapour with a small amount of CO2 are produced in addition to electricity. Therefore, the EFOY can be installed indoors without hesitation.
How to control the EFOY

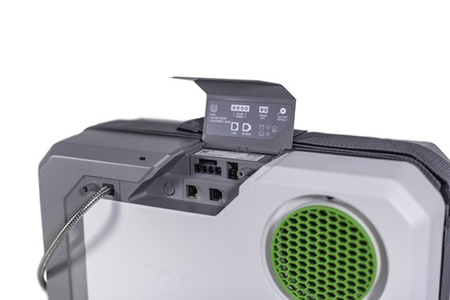

You can control the fuel cell easily with the EFOY app on your smartphone or tablet. All you have to do is plug the Bluetooth adapter into the EFOY. In the app you can see all the information about your fuel cell and battery at a glance. Example: monitor the fill level of your fuel cartridge or the daily consumption by simply downloading the EFOY app from the App Store.

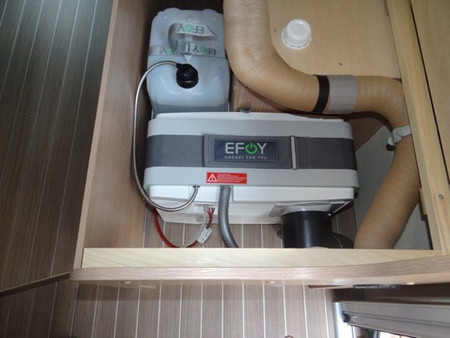

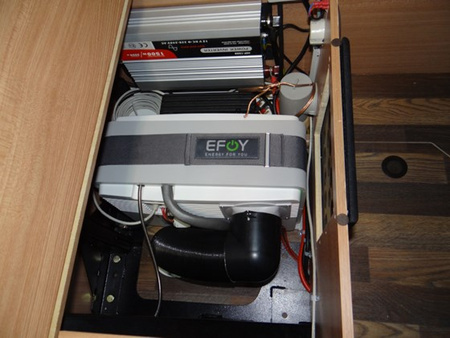

Where can the EFOY be installed?
There’s always a place for the EFOY. Due to its compact design it takes up little space and is also very light. We’ll show you where the EFOY can be installed in our installation area.
What should you bear in mind?
Place your EFOY as close as possible to the on-board battery to avoid losses due to long cables. The EFOY needs oxygen- leave some space (approx. 10 cm) around it during installation so that the air can circulate.
Use the supplied accessories to conduct the EFOY’s waste heat away from the device or out of the installation space. The waste heat can be conducted into the interior without any concerns, as it does not contain any harmful exhaust fumes. Only the condensation water emitted by the fuel cell should be discharged to the outside.
Scope of delivery of the EFOY fuel cell in BT set
Bluetooth Adapter BT2
The EFOY Bluetooth adapter allows you to control the fuel cell with the free EFOY app via smartphone or tablet. In addition to operation, you’ll find out many interesting statistics about the operation of your EFOY.
Charging cable CL5
The three-metre-long charging cable connects your EFOY fuel cell to the battery and continuously measures the battery voltage (fuse set included).
Sling swivels
To ensure that your fuel cell stands firmly, you can attach the strap on the EFOY to the two sling swivels supplied.
Fuel cartridge holder + strap
Simply attach the EFOY fuel cartridges to the holder with the strap.
Waste heat arc
You can easily dissipate the waste heat of the fuel cell via the waste heat arc.
Waste heat pipe
With the waste heat pipe, you can extend the waste heat arc to lead the heat outside.
Outer panel
The outer panel is attached to the waste heat pipe as a closure element.
Operating instructions
The operating instructions contain all the information you need about the EFOY fuel cell.
Waste water hose incl. insulation
In addition to electricity, the chemical process also produces some condensation water with a small amount of CO2. This hose should be drained to the outside so that the condensation water can drain off.
Service fluid
The service fluid is only required if your fuel cell explicitly draws attention to it with a note. This can happen, for example, after a long period of non-use of the EFOY.
Technical details:
-
Maximum Power: 75W
- Nominal voltage: 12/24 V DC
- Weight: 6.9kg / 15.2lbs
- Dimensions (L x W x H): 448x198x275
- connectable fuel cartridges / gas cylinders: 1 (up to 8 with EFOY Fuel Manager)
- Operating temperature: -20 ° C to + 40 ° C / -4 ° F to + 104 ° F
- Operating Materials: methanol in EFOY fuel cartridges
