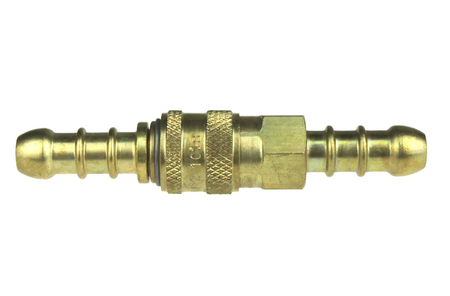

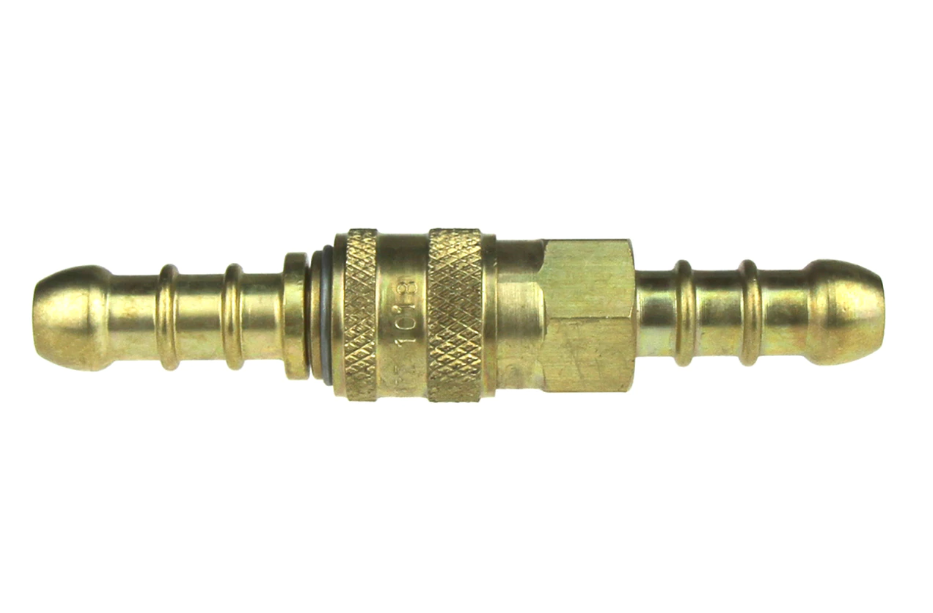

GasBank quick release gas coupling for 8 mm hose - brass, plug and socket with hose nozzles, propane-butane
ID produktu: 687
- Brass GasBank GB-Z-01 quick release coupling for joining two lengths of 8 mm rubber gas hose - plug and socket with knurled collar, for propane-butane.
The GasBank quick release gas coupling (code GB-Z-01) joins two lengths of rubber gas hose with 8 mm inner diameter. It lets you disconnect a BBQ, heater or other gas appliance from the bottle quickly, without undoing any fittings.
Design

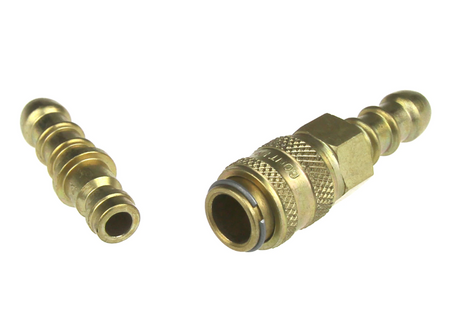

- two brass parts: plug and socket
- both parts have barbed nozzles for 8 mm hose
- the socket has a knurled collar and an O-ring seal
- hose-to-hose connection, no threads
Use
- push the plug into the socket until it locks
- to disconnect, slide back the knurled collar and pull out the plug
- for propane-butane gas, e.g. BBQ, patio heater, camping stove
- close the bottle valve before disconnecting; the coupling is not a shut-off valve
Fitting
- push the nozzles fully into gas hose with 8 mm inner diameter
- secure each hose end with a hose clamp
- check for leaks after fitting and at every connection, e.g. with soapy water
Technical data
| Parameter | Value |
|---|---|
| Brand | GasBank |
| Code | GB-Z-01 |
| Type | hose-to-hose quick release coupling |
| Parts | plug and socket |
| Material | brass |
| Hose | rubber gas hose, 8 mm inner diameter |
| Gas | propane-butane |
Questions and answers
Which hose does it fit?
Rubber gas hose with 8 mm inner diameter.
Are both parts included?
Yes, plug and socket, each with a hose nozzle.
Do I need hose clamps?
Yes, each hose end should be secured with a hose clamp. Clamps are not included.
