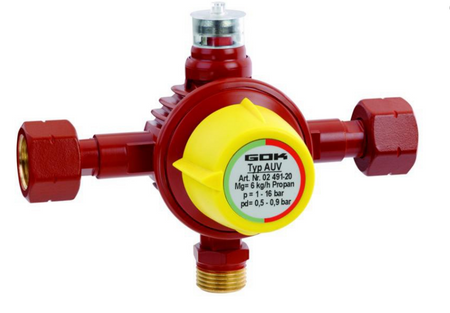

GOK 6-cylinder system 37/50 mbar, 6 kg/h

GOK 6-cylinder system 37/50 mbar, 6 kg/h

Capacity: 6 kg/h

Output pressure: 37/50 mbar

Maximum allowable pressure: PS 16 bar

Output connection: 1/2 L taper or cr. (RST) 12

Advantages and accessories

Cylinder installation with automatic changeover:

•     gas is taken alternately from both sides
•     empty cylinders can be replaced without interrupting operation of the system
•     reliable, no further maintenance required
•     integrated operating/reserve indicator (green/red)
•     optionally with electronic indicator (type AUV only), with electrical cable with a maximum length of 25 m and a cross section of 1.5 mm2

The set comprises:

•     six high-pressure hoses
•     mounting strip,
•     automatic switch,
•     regulator with PRV blow-off safety valve and pressure control,
•     optional on request: remote indicator with display, transformer and surface box
