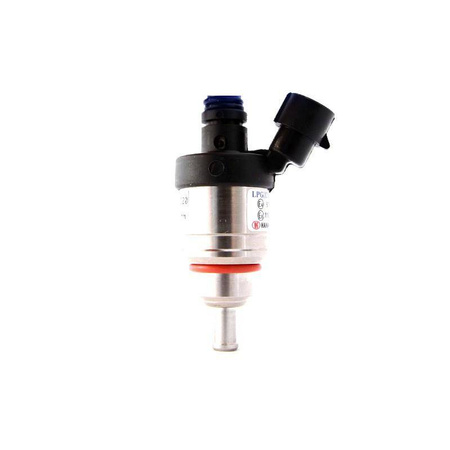

H2001 A+ Blue HANA LPG, CNG Injector - Rail Type
- HANA H2001 A+ Blue LPG, CNG Injector Rail Type
HANA LPG/CNG Injectors with long lifespan (around 500 milion cycles) are one of the best on the market. HANAs are very competitive to and easy swappable with japanese Keihin injectors.
HANA H2001 is the smallest HANA injector dedicated for passenger cars. For easy installation exists as a single type injector (hose type, with gas hose attached directly to the injector nozzle) and rail type injector (mounted at aluminium or plastic rails in a group or 2, 3 or 4 injectors). There are two types of H2001 injectors regarding the gas flow rate: BLUE and GOLD.
- Single and Rail Mount (2, 3, 4 Cylinder Rails) – Top Feed
- up to 60HP per Cylinder
- BLUE and GOLD (with exchangeable nozzles)
HANA Injectors comparison chart:
NEW HANA | Former HANA | Nozzle | Maximum Power (HP) | Mesured with | ||||
HP/Cylinder (±15%) | 4 Cylinders | 6 Cylinders | 8 Cylinders | |||||
Type A+ (BLUE) |
Type A+ (BLUE) |
1.3 Ohm | 40 / 50 / 60 HP | 160 ~ 240 HP | 240 ~ 360 HP | 320 ~ 480 HP | Pressure 0.8/1.0/1.2 bar (with max.load) |
|
Type A (GOLD) |
Type A (GREEN) |
1.9 Ohm | 33 / 42 / 50 HP | 132 ~ 200 HP | 198 ~ 300 HP | 264 ~ 400 HP | ||
Type B (RED) |
2.4mm One stripe | |
1.9 Ohm | 26 / 32 / 39 HP | 104 ~ 156 HP | 156 ~ 234 HP | 208 ~ 312 HP | ||
Type C (BLACK) |
2.1mm Two stripes || |
1.9 Ohm | 20 / 25 / 30 HP | 80 ~ 120 HP | 120 ~ 180 HP | 160 ~ 240 HP | ||
Type D (VIOLET) |
1.9mm Three stripes ||| |
1.9 Ohm | 15 / 19 / 24 HP | 60 ~ 96 HP | 90 ~ 144 HP | 120 ~ 192 HP |
