HABA MC 400 metal door lock for motorhomes and caravans - with inner lock and base plate, cut-out 135 x 63 mm, left-hand door

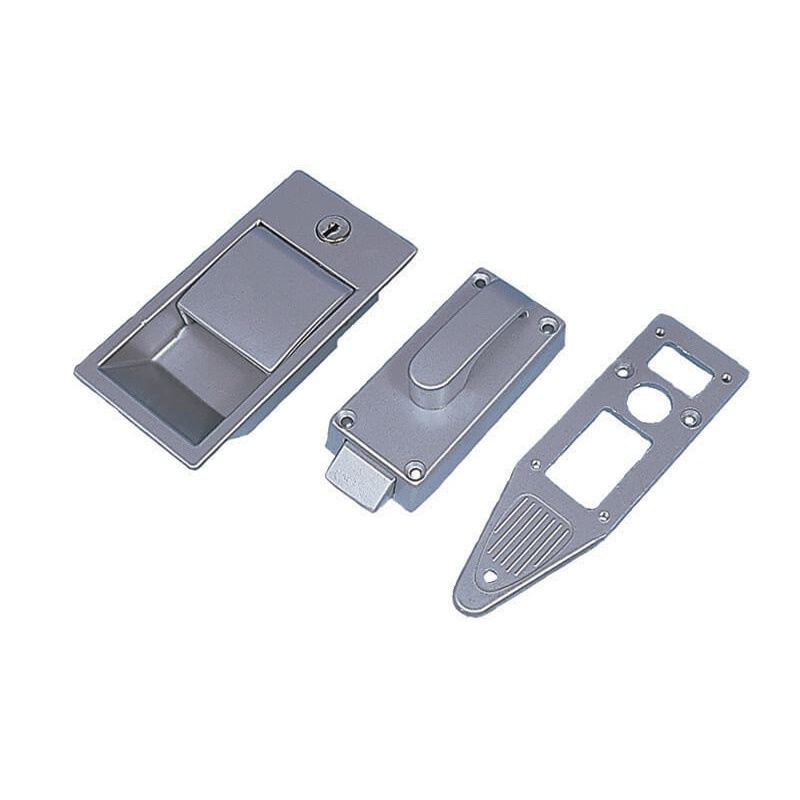

Contents

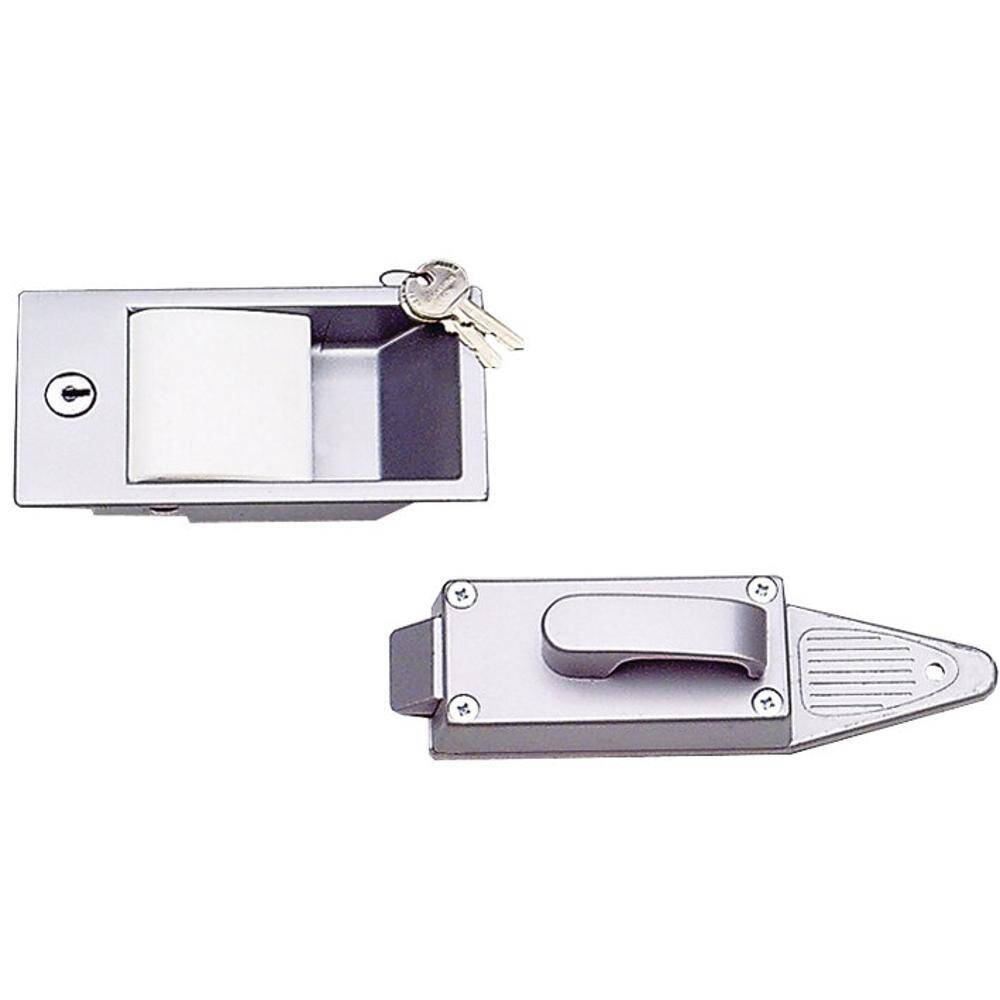

• outer part with handle and lock cylinder
• inner lock with lever
• base plate
• gasket for the outer part
• 2 keys
• mounting screws

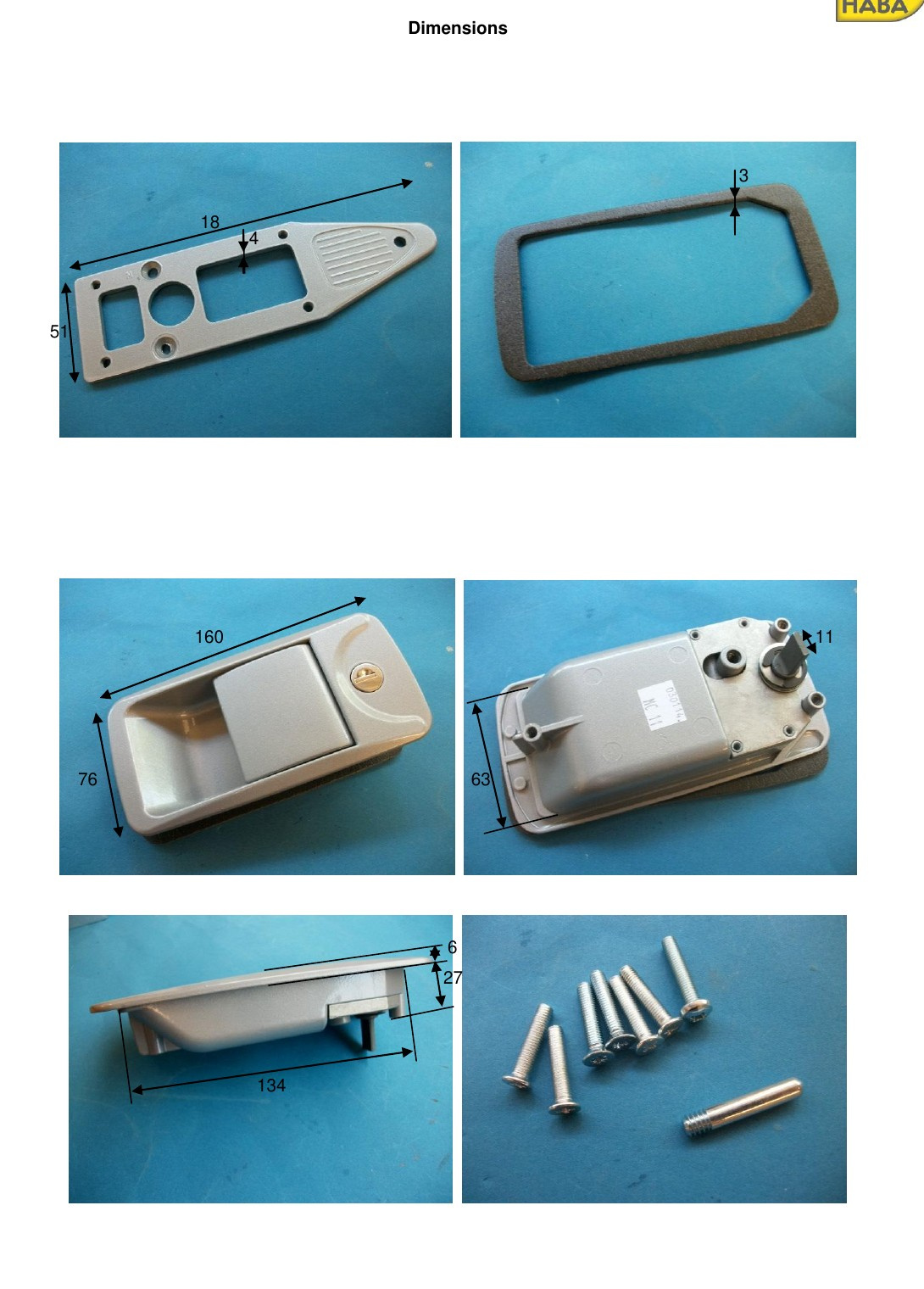

Dimensions from the HABA drawing

• cut-out 135 x 63 mm
• outer part 160 x 76 mm, depth in the door 27 mm

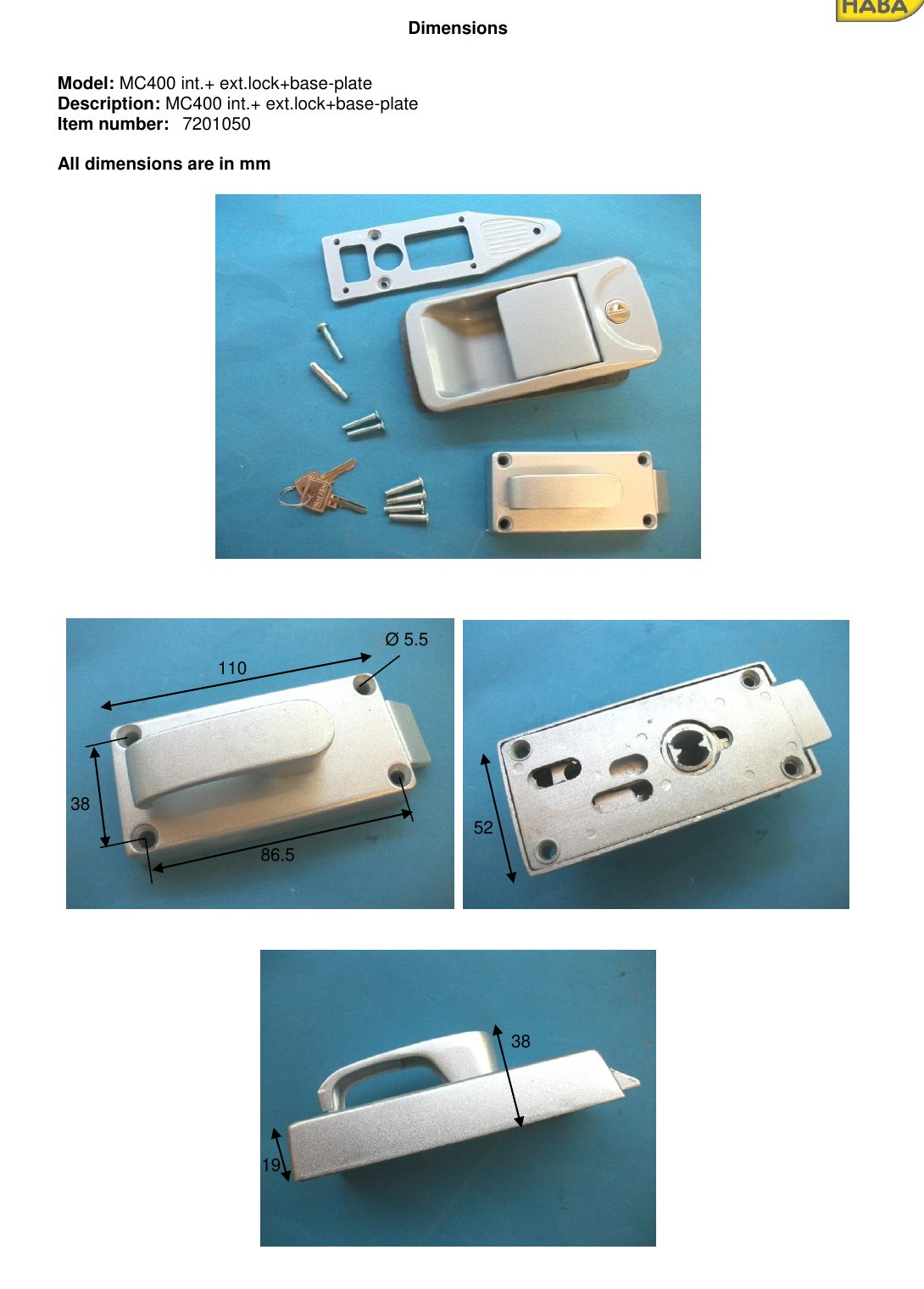

• inner part 110 x 38 mm, hole spacing 86.5 mm, holes 5.5 mm
• gasket thickness 3 mm

Fitting

• for doors 25-35 mm thick
• left-hand door version, check the opening direction of your door before ordering
• compare the dimensions with your old lock before cutting

What is included?

Outer part with handle, inner lock, base plate, gasket, 2 keys and mounting screws.

What cut-out is needed?

The cut-out is 135 x 63 mm.

What door thickness does it fit?

Doors 25-35 mm thick.

Does it fit a right-hand door?

This version is made for a left-hand door. Check which way your door opens before ordering.
