Häfele short arm cabinet hinge for thin doors from 14 mm - 95° opening angle, for motorhomes and caravans
ID produktu: 40358
- Häfele short arm concealed hinge for thin cabinet doors from 14 mm thick. Opening angle 95°, drilling pattern 38/7.5 mm, cup ø 26 mm, without self-closing. Sold individually.
The Häfele short arm hinge is designed for thin cabinet doors from 14 mm thick, typical of motorhome and caravan furniture. It opens the door to 95° and has no self-closing mechanism. The short arm lets the hinge fit in shallow cabinets.
Key features
- for doors from 14 mm thick
- opening angle 95°

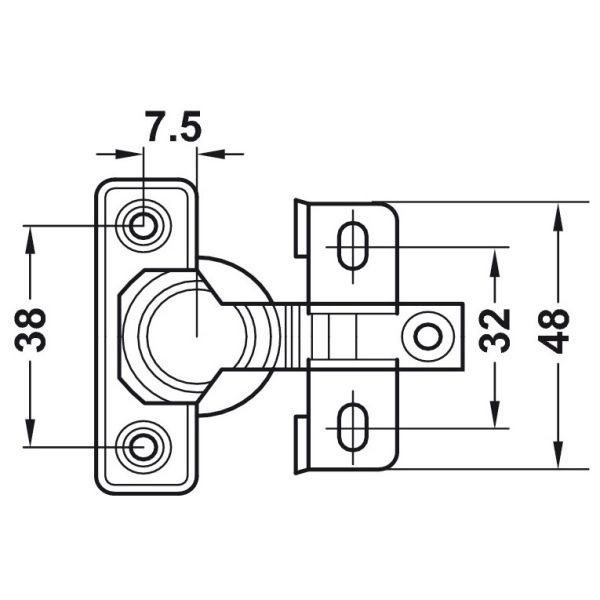

- drilling pattern 38/7.5 mm
- cup ø 26 mm
- without self-closing mechanism
- screw fixing
- height and side adjustment
Installation

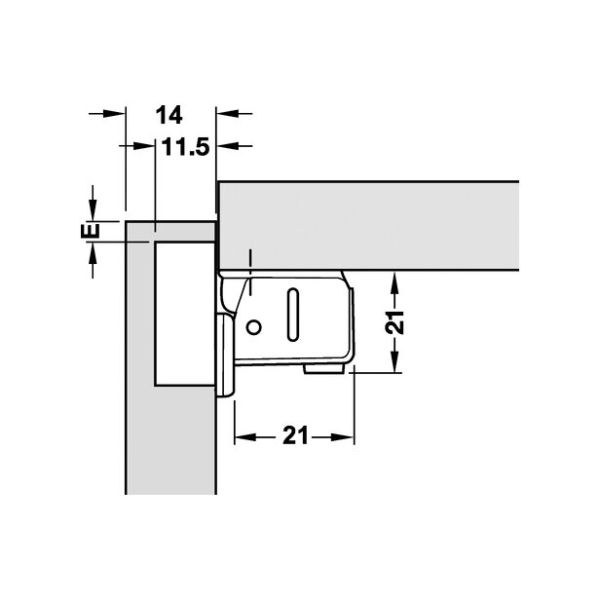

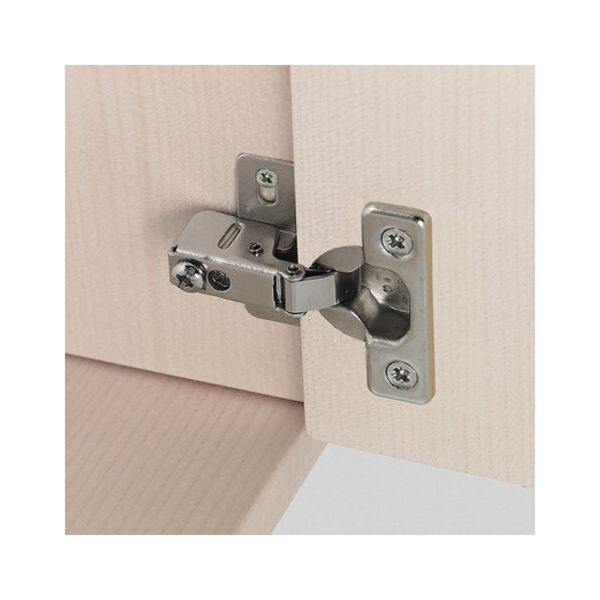

Drill a ø 26 mm cup hole in the door and fix the hinge with screws to the 38/7.5 mm pattern. Screw the mounting plate to the cabinet body. After fitting, align the door with the adjustment screws.

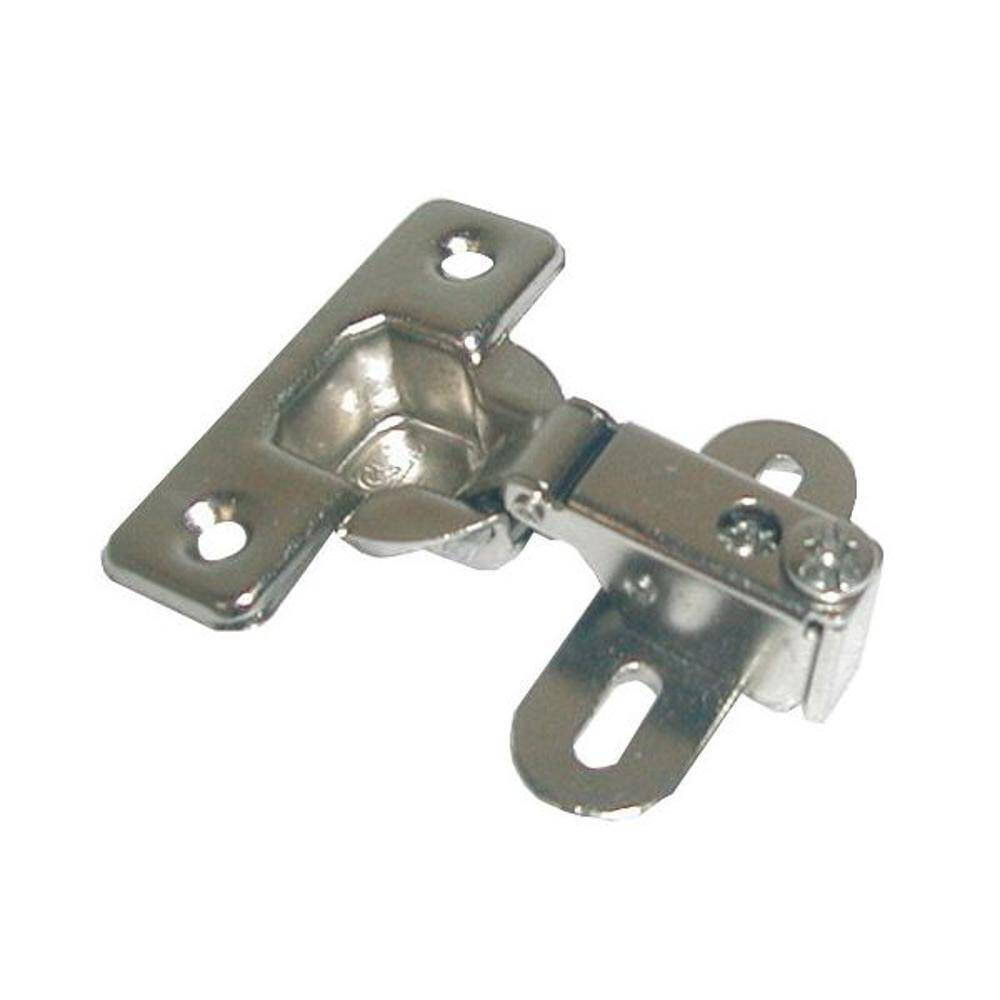

Photos
Related products
- Häfele cabinet hinge, packed
- Häfele Easy Mont flap hinge, 2 pcs
- Häfele Push-Lock latch, matt chrome, ø 34 mm
- Häfele magnetic catch, brown, 2 pcs
Technical data
| Parameter | Value |
|---|---|
| Brand | Häfele |
| Type | short arm concealed hinge |
| Door thickness | from 14 mm |
| Opening angle | 95° |
| Drilling pattern | 38/7.5 mm |
| Cup diameter | 26 mm |
| Self-closing | no |
| Material | nickel-plated steel |
| Quantity | 1 pc |
Questions and answers
What door thickness does it fit?
Doors from 14 mm thick.
Does the hinge close the door by itself?
No, this is the version without self-closing.
What hole is needed?
A ø 26 mm cup hole, with screws to the 38/7.5 mm pattern.
How many hinges are included?
The price is for 1 piece.
Manufacturer
Häfele SE & Co KG, Adolf-Häfele-Str. 1, 72202 Nagold, Germany.
ID produktu
40358
Brand
Material
Aluminum
Gross weight
38 g
Pieces
1.0
Net weight
38 g
Max package dimension
5 cm
Min package dimension
3 cm
Middle package dimension
4 cm
