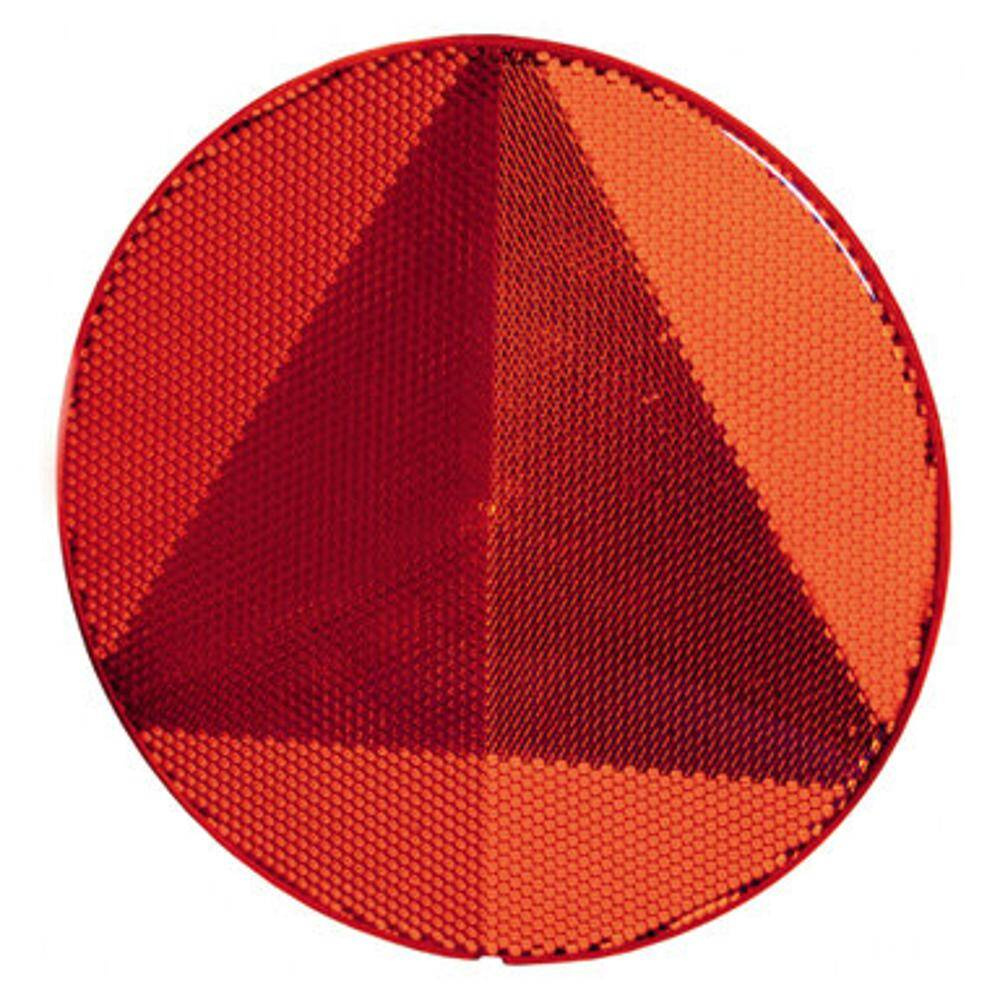

Hella Self-Adhesive Round Red Reflector with Triangle 156 mm ECE R3 - for Caravans and Motorhomes
- Round red Hella reflector with a triangular pattern, 156 mm in diameter and 8 mm thick. It is glued horizontally to the rear of the vehicle. It has ECE R3 approval and a reflective area of 160 cm².
This round red Hella reflector with a clear triangular pattern in the middle is a safety part fitted at the rear of a caravan, motorhome or other vehicle. It reflects the headlights of vehicles behind and helps others see your vehicle after dark, even when its lights are switched off. The reflector is glued on, so no holes need to be drilled in the bodywork. It carries ECE R3 approval with the mark E4 3191, and its effective reflective area is 160 cm².
Key features
- red rear reflector, round with a triangular pattern
- glued fitting, fastening material included
- designed for horizontal fitting at the rear of the vehicle
- dimensions 156 x 155 x 8 mm, weight 90 g
- effective reflective area 160 cm²
- ECE R3 approval, mark E4 3191
- plastic housing
Fitting without drilling
The reflector is self-adhesive, so you need no screws and no holes in the vehicle wall. The manufacturer intends it for horizontal fitting at the rear of the vehicle. The surface should be clean, dry and grease-free so the fastening material holds securely. The manufacturer recommends fitting by qualified staff, because the position of reflectors on a vehicle is set by regulations.
When to choose it
- to replace a cracked, faded or lost rear reflector
- when you do not want to drill into the caravan or motorhome wall
- when you need a reflector with ECE R3 approval
- when you want a flat reflector that sticks out only 8 mm
Matching products
- Hella triangular reflector 155.8 mm - screw-on version
- Hella rear stop light with reflector
Technical data
| Feature | Value |
|---|---|
| Manufacturer | Hella |
| Manufacturer part number | 8RA 343 220-007 |
| Type | rear reflector |
| Shape | round with triangular pattern |
| Colour | red |
| Dimensions | 156 x 155 x 8 mm |
| Effective reflective area | 160 cm² |
| Fitting | glued, horizontal |
| Fitting position | rear of vehicle |
| Housing material | plastic |
| Approval | ECE R3, E4 3191 |
| Weight | 90 g |
| Contents | 1 piece with fastening material |
Questions and answers
Do I need to drill holes to fit it?
No. The reflector is self-adhesive and fastening material is included, so you only need to prepare the surface and stick it on.
How many reflectors are included?
The set contains 1 reflector.
Is the reflector approved?
Yes. It has ECE R3 approval with the mark E4 3191.
Where is this reflector fitted?
The manufacturer intends it for horizontal fitting at the rear of the vehicle.
Is there a screw-on version?
Yes. A similar Hella triangular reflector fixed with screws is listed under matching products.
Manufacturer
HELLA GmbH & Co. KGaA, Rixbecker Straße 75, 59552 Lippstadt, Germany.
