HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
+1more
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V
HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V

HELUKABEL H05V-K 1 x 1 mm² red single core wire 29117 - finely stranded copper, PVC insulated, 300/500 V

ID produktu: 84580
  • HELUKABEL H05V-K 1 x 1 mm² single core wire, red insulation, part no. 29117. Finely stranded class 5 copper with PVC insulation, 300/500 V, outer diameter 2.4-2.8 mm. Price per 1 m.
Add to shopping list
0,28 €
incl. VAT / metr
Regular price / metr
Size
uniwersalny
You can also buy using:
Product available, ships within 1 business day
Szczegóły dostawy
14 days for easy returns
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.
Opis produktu

The HELUKABEL H05V-K 1 x 1 mm² is a flexible PVC-insulated single core wire rated 300/500 V. The manufacturer intends it for internal wiring of apparatus, protected installation in lighting, in dry rooms, in switch and distribution boards, in conduits and on or under plaster. Insulation colour: red.

HELUKABEL H05V-K 1 x 1 mm² red

Construction

  • bare copper conductor, finely stranded class 5 to DIN VDE 0295 / IEC 60228
  • PVC insulation (compound type TI1) to DIN VDE 0207-363-3 / DIN EN 50363-3
  • cross-section 1 x 1 mm², outer diameter 2.4-2.8 mm
  • insulation colour: red (RAL 3000)

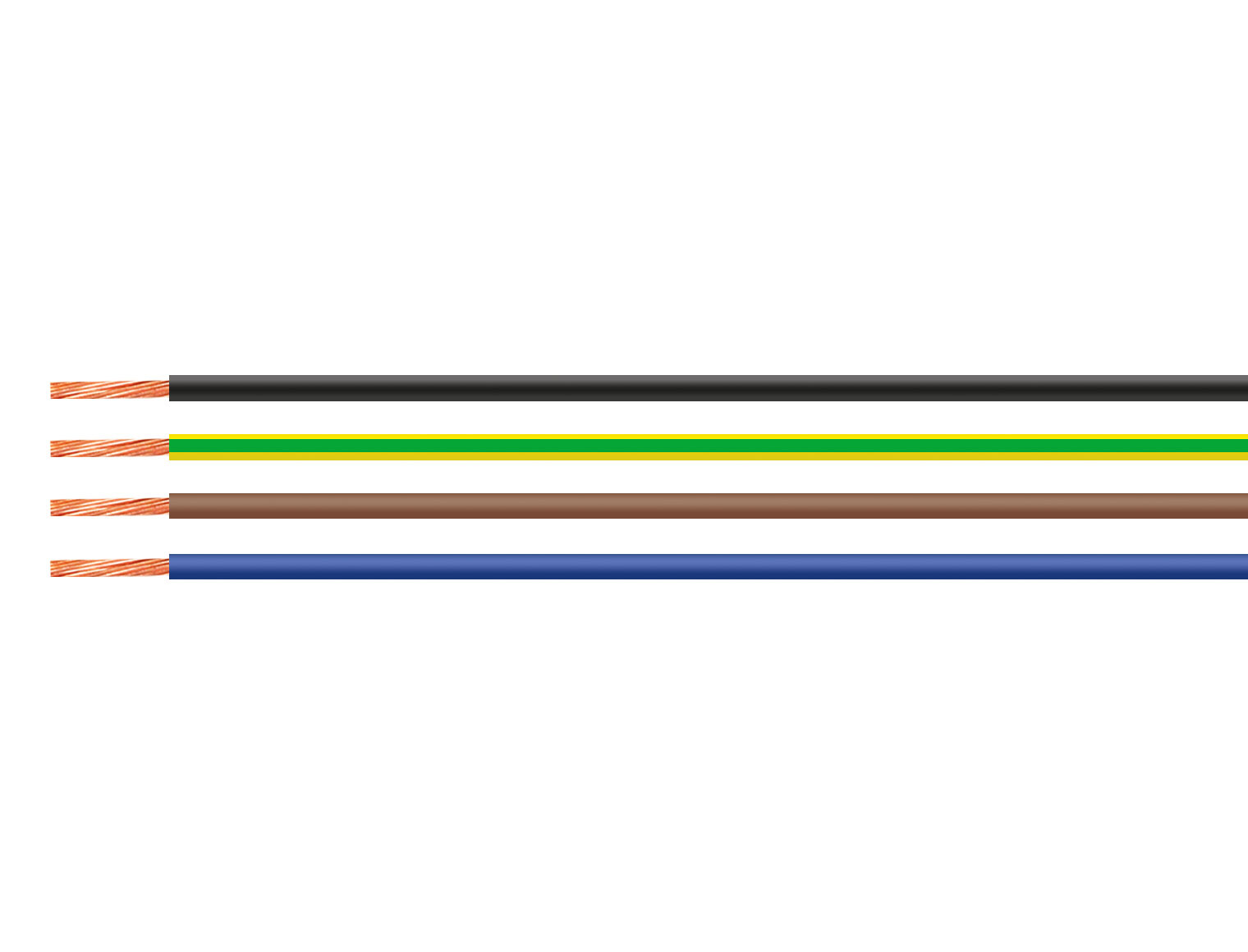

HELUKABEL H05V-K single core wires

Application and properties

  • internal wiring of apparatus, switch and distribution boards
  • installation in conduits and on or under plaster in dry rooms
  • flame-retardant to DIN EN 60332-1-2 / IEC 60332-1-2
  • materials free of cadmium and silicone and of substances harmful to lacquer wetting

Other HELUKABEL wires in our shop

Technical data

ParameterValue
ManufacturerHELUKABEL
SeriesH05V-K
Part number29117
No. of cores x cross-section1 x 1 mm²
AWG (approx.)18
Insulation colourred (RAL 3000)
Outer diameter2.4-2.8 mm
Copper weight9.6 kg/km
Conductorbare copper, class 5 to DIN VDE 0295 / IEC 60228
InsulationPVC compound TI1 to DIN VDE 0207-363-3 / DIN EN 50363-3
Nominal voltage U0/U300/500 V
Test voltage2000 V
Temperature range, flexible-5°C to +70°C
Insulation resistancemin. 10 MOhm x km
Temperature range, fixed-30°C to +80°C
Min. bending radius (fixed)4x outer diameter
StandardDIN VDE 0285-525-2-31 / DIN EN 50525-2-31, IEC 60227-3
Flame behaviourflame-retardant to DIN EN 60332-1-2 / IEC 60332-1-2
Sales unit1 m

Questions and answers

Is the price per metre?

Yes. The price is for 1 m of wire, and the order quantity is the number of metres.

What voltage is it rated for?

Nominal voltage U0/U is 300/500 V, test voltage 2000 V.

What is the outer diameter?

The manufacturer specifies 2.4-2.8 mm.

How does it differ from H07V-K?

H05V-K is rated 300/500 V, H07V-K is rated 450/750 V.

Manufacturer

HELU KABEL GmbH, Schloßhaldenstraße 10, 71282 Hemmingen, Germany.

Specification
ID produktu
84580
Brand
HELUKABEL
Color
Red
Cable cross-section
1 x 1 mm²
Nominal voltage
300/500 V
Outer diameter
2.4-2.8 mm
Material
PVC (polyvinyl chloride)
