HELUKABEL H07V-K 1 x 50 mm² black single core wire 26889 - finely stranded copper, PVC insulated, 450/750 V
- HELUKABEL H07V-K 1 x 50 mm² single core wire, black insulation, part no. 26889. Finely stranded class 5 copper with PVC insulation, 450/750 V, outer diameter 11.5-13.9 mm. Price per 1 m.

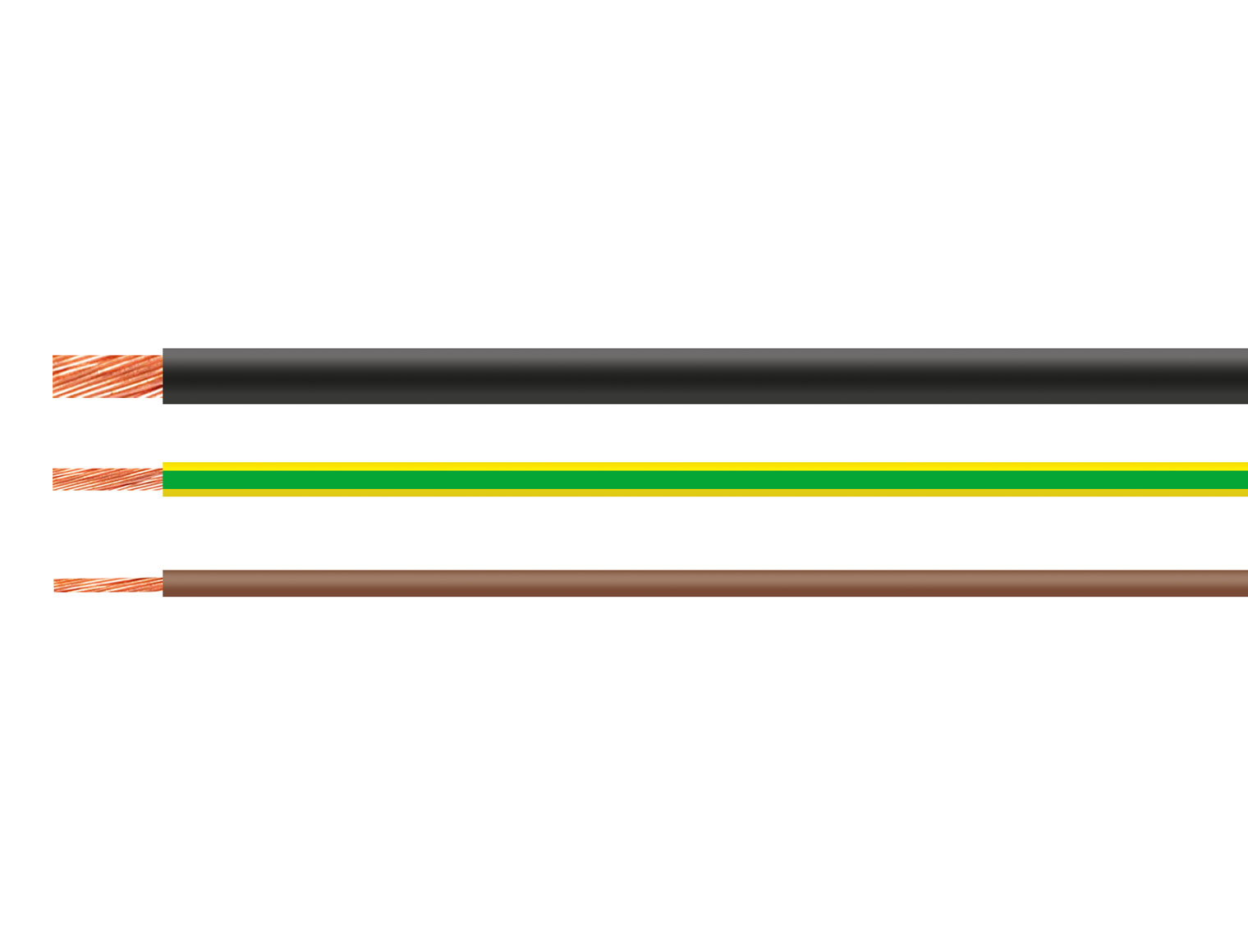

The HELUKABEL H07V-K 1 x 50 mm² is a flexible PVC-insulated single core wire rated 450/750 V. The manufacturer intends it for installation in electrical conduits, on or under plaster or in similar enclosed systems, and for protected fixed installation in lighting and in switching and control devices up to 1000 V AC or 750 V DC against earth. Insulation colour: black.
Construction
- bare copper conductor, finely stranded class 5 to DIN VDE 0295 / IEC 60228
- PVC insulation (compound type TI1) to DIN VDE 0207-363-3 / DIN EN 50363-3
- cross-section 1 x 50 mm², outer diameter 11.5-13.9 mm
- insulation colour: black (RAL 9005)
Application and properties
- installation in electrical conduits, on or under plaster and in enclosed ducts
- protected fixed installation in lighting and switchgear up to 1000 V AC or 750 V DC against earth
- not for direct laying on cable ladders and in cable trays, except as an equipotential bonding conductor
- flame-retardant to DIN EN 60332-1-2 / IEC 60332-1-2
- materials free of cadmium and silicone and of substances harmful to lacquer wetting
Other HELUKABEL wires in our shop
- H07V-K 1 x 2.5 mm² red (29149)
- H07V-K 1 x 2.5 mm² black (29145)
- H07V-K 1 x 16 mm² red (26845)
- H07V-K 1 x 16 mm² black (26841)
- H07V-K 1 x 25 mm² red (26861)
- H07V-K 1 x 25 mm² black (26857)
- H07V-K 1 x 50 mm² red (26893)

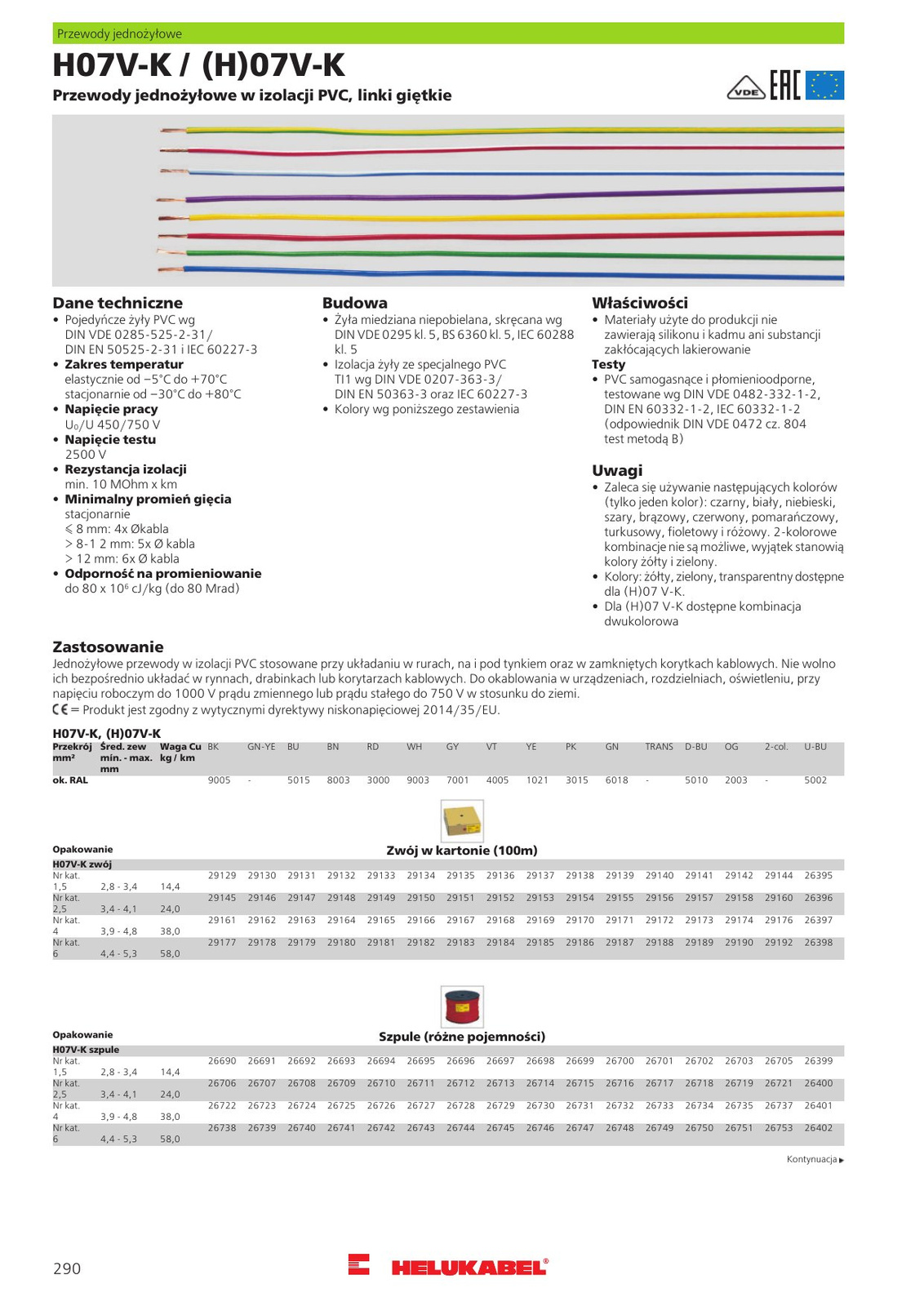

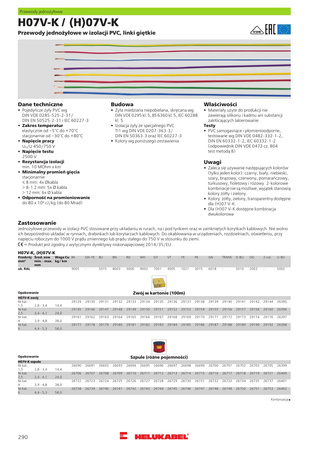

Technical data
| Parameter | Value |
|---|---|
| Manufacturer | HELUKABEL |
| Series | H07V-K |
| Part number | 26889 |
| No. of cores x cross-section | 1 x 50 mm² |
| AWG (approx.) | 1 |
| Insulation colour | black (RAL 9005) |
| Outer diameter | 11.5-13.9 mm |
| Copper weight | 480 kg/km |
| Conductor | bare copper, class 5 to DIN VDE 0295 / IEC 60228 |
| Insulation | PVC compound TI1 to DIN VDE 0207-363-3 / DIN EN 50363-3 |
| Nominal voltage U0/U | 450/750 V |
| Test voltage | 2500 V |
| Temperature range, flexible | +5°C to +70°C |
| Temperature range, fixed | -30°C to +80°C |
| Min. bending radius (fixed) | 4x diameter (up to 8 mm), 5x (8-12 mm), 6x (above 12 mm) |
| Standard | DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, IEC 60227-3 |
| Flame behaviour | flame-retardant to DIN EN 60332-1-2 / IEC 60332-1-2 |
| Sales unit | 1 m |
Questions and answers
Is the price per metre?
Yes. The price is for 1 m of wire, and the order quantity is the number of metres.
What voltage is it rated for?
Nominal voltage U0/U is 450/750 V, test voltage 2500 V.
What is the outer diameter?
The manufacturer specifies 11.5-13.9 mm.
Can it be laid in a cable tray?
The manufacturer does not allow H07V-K to be laid directly on cable ladders or in cable trays, except as an equipotential bonding conductor. It is laid in conduits or enclosed ducts.
