Indel B Cruise 86 - Slim Vertical Compressor Refrigerator with Bottom-Mounted Compressor

Premium 86L Slim Design Refrigerator with 10L Freezer for Boats & Caravans

The Indel B Cruise 86 is a cleverly designed vertical compressor refrigerator featuring 86 liters of total capacity with a dedicated 10-liter freezer compartment. With its innovative bottom-mounted SECOP BD1.4F compressor and ultra-slim profile, this narrow vertical van fridge is engineered to fit in tight spaces while delivering exceptional cooling performance for boats, caravans, and camper vans.

Why Choose Indel B Cruise 86 Slim Refrigerator?

Ultra-Slim Design for Tight Spaces

The Cruise 86 features a remarkably narrow 380mm width combined with vertical 865mm height, making it perfect for:

• Narrow galley spaces in boats
• Compact caravan kitchens
• Slim cabinet installations in camper vans
• Otherwise unusable tight spaces
• Modern minimalist van conversions
• Space-efficient tiny home layouts

Bottom-Mounted Compressor Innovation

Unlike traditional rear-mounted designs, the SECOP BD1.4F compressor positioned at the bottom offers:

• Reduced overall depth - no rear protrusion
• Better space efficiency in shallow cabinets
• Improved heat management with fan-forced cooling
• Lower center of gravity for stability
• Easier access for maintenance
• Cleaner appearance in built-in installations

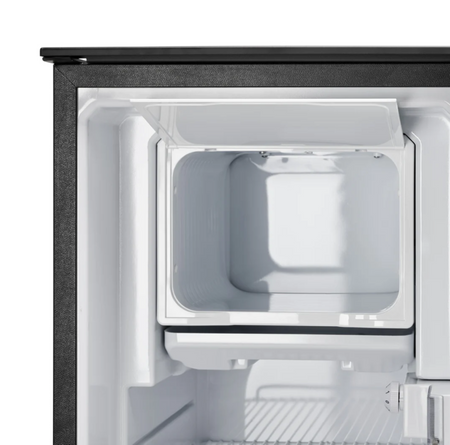

Dedicated 10-Liter Freezer Compartment

The separate 10-liter freezer (150 × 215 × 320 mm) provides:

• Ample space for frozen meals and essentials
• Ice production capability
• Separate frozen storage from fresh food
• Convenient organization for extended trips
• Proper temperature zones for food safety

Marine-Grade Construction for Harsh Conditions

Specifically developed for boats and caravans, the Cruise 86 withstands:

• Constant vibration and movement
• High humidity environments
• Temperature fluctuations
• Rough seas and uneven terrain
• Long periods of non-use
• Demanding off-grid conditions

Intelligent Interior Design

Optimized 86-Liter Storage Layout

The main refrigerator compartment features:

• Two wire shelves for flexible organization
• One partially openable shelf for tall items up to 570mm
• Seamless hard plastic interior with rounded corners for easy cleaning
• Interior dimensions: 300mm wide × 510-570mm high × 430mm deep
• Lower compressor offset: 120mm height, 160mm depth
• Smart space utilization throughout

Three-Tier Door Storage System

The refrigerator door includes three carefully designed shelves (approximately 230mm wide):

• Lower shelf: PET bottles up to 34cm tall and 9cm diameter
• Middle shelf: Three bottles up to 7cm diameter and 27cm tall
• Upper shelf: Small items, condiments, jars
• Maximum accessibility and organization

Partially Openable Shelf Design

The innovative liftable wire shelf allows:

• Standard position for normal storage
• Partial opening for tall bottles, containers, or packages
• Flexibility to accommodate various item sizes
• Quick adjustment without tools
• Maximized vertical space utilization

Professional SECOP BD1.4F Compressor

Bottom-Mounted Cooling Technology

Equipped with the hermetically sealed SECOP BD1.4F compressor, delivering:

• Low power consumption: 50W maximum
• Dual voltage: 12V-24V DC with automatic recognition
• Fan-forced air cooling for optimal heat dissipation
• Whisper-quiet operation for marine and caravan use
• Proven reliability in demanding mobile applications
• Long operational life with sealed construction

Advanced Power Management

The integrated SECOP 12/24 Volt power electronics include:

• Automatic voltage detection
• Battery undervoltage protection to prevent discharge
• Efficient power conversion
• Protection against voltage fluctuations
• Optimized for solar and battery systems

Built-In Installation Features

Customizable Door Panel

Create a seamless look with the removable front door panel:

• Replace gray panel with custom finish matching your kitchen
• Professional integration with surrounding cabinetry
• Cohesive design aesthetic
• Easy panel replacement
• Gray panel included as standard

Reversible Door Opening

The door can be mounted for left or right opening:

• Total installation flexibility
• Adapts to any layout configuration
• Simple reconfiguration with standard tools
• Perfect fit regardless of space constraints

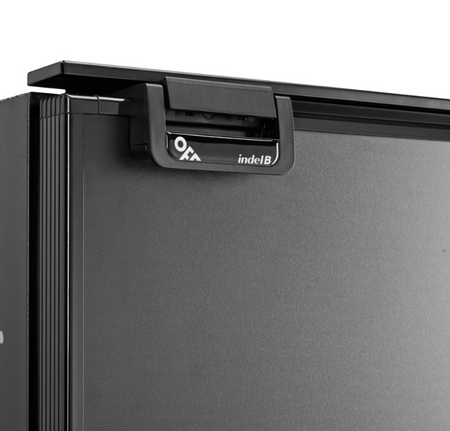

Safety Lock & Magnetic Seal

Professional features ensure security and efficiency:

• Safety lock keeps door secure during travel
• Magnetic rubber seal for airtight closure
• Maintains optimal cooling efficiency
• Prevents accidental opening
• Food safety assurance

Advanced Features

Mechanical Thermostat Control

Simple, reliable mechanical thermostat provides:

• Precise temperature adjustment
• Easy-to-use control
• No complex electronics to fail
• Proven durability
• Intuitive operation

Interior LED Lighting

Built-in lighting illuminates the interior for:

• Easy visibility in low-light conditions
• Nighttime access without external lights
• Quick item location
• Energy-efficient LED technology
• Enhanced convenience

Easy-Clean Design

The seamless interior with rounded corners ensures:

• Simple, thorough cleaning
• No trapped dirt or bacteria
• Important for seasonal storage
• Prevents mold during non-use periods
• Maintains hygiene standards

Complete Technical Specifications

Capacity & Dimensions:

• Total capacity: 86 liters
• Freezer capacity: 10 liters
• External dimensions: 860.5 × 380 × 510.5 mm (H×W×D)
• Freezer dimensions: 150 × 215 × 320 mm (H×W×D)
• Interior width: 300 mm
• Interior height: 510 mm (under drip tray), 570 mm (under freezer)
• Interior depth: 430 mm
• Compressor offset: 120 mm height, 160 mm depth
• Weight: 16 kg

Cooling Performance:

• Technology: Bottom-mounted compressor refrigeration
• Compressor: SECOP BD1.4F (hermetically sealed, fan-cooled)
• Voltage: 12V-24V DC with automatic recognition
• Maximum power consumption: 50W
• Climate class: ST (Subtropical) - operates +16°C to +38°C
• Cooling type: Forced air circulation with fan

Interior Features:

• Two wire shelves (one partially openable)
• 10-liter separate freezer compartment
• Interior LED lighting
• Mechanical thermostat control
• Seamless hard plastic interior with rounded corners
• Three-tier door storage system

Door Features:

• Reversible opening (left/right)
• Customizable front panel (gray panel included)
• Safety lock mechanism
• Magnetic rubber seal
• Three storage shelves in door

Power Protection:

• Battery undervoltage protection system
• SECOP 12/24V power electronics
• Automatic voltage detection

Quality Certifications:

• CE certified
• EMC compliant
• Homologation approved for mobile applications

Manufacturer:

• Brand: Indel B (Italy)
• Model: Cruise 86

Ideal Applications:

• Sailboats and yachts with narrow galley spaces
• Motorboats requiring slim marine refrigeration
• Caravans and travel trailers with compact kitchens
• Camper vans with limited width availability
• Narrow van conversions maximizing space
• Tiny homes on wheels prioritizing slim appliances
• Expedition vehicles needing vertical storage
• Small motorhomes with space constraints

Perfect for Marine & Caravan Use

The Cruise 86 is specifically engineered for demanding mobile environments:

✓ Ultra-slim 380mm width fits narrow spaces
✓ Bottom-mounted compressor saves depth
✓ Marine-grade construction withstands harsh conditions
✓ 10L dedicated freezer for frozen essentials
✓ Fan-forced cooling for consistent performance
✓ Battery protection prevents over-discharge
✓ Easy-clean interior for seasonal storage
✓ Customizable door panel for seamless integration
✓ Reversible door for any configuration
✓ Quiet operation for comfortable living

Slim Profile Advantages

The narrow 380mm width offers unique benefits:

• Fits where standard fridges cannot
• Creates more usable floor space
• Ideal for corridor-style galleys
• Perfect for side-wall installations
• Maximizes living area in small spaces
• Modern, sleek appearance

Bottom-Mounted Compressor Benefits

Unlike rear-mounted designs, the bottom compressor provides:

• Shallower installation depth - critical in boats
• Better weight distribution - lower center of gravity
• Improved stability - especially on water
• Easier maintenance access - compressor easily reached
• More efficient cooling - heat rises naturally away
• Cleaner built-in look - no rear protrusion

Compressor Technology for Boats & Caravans

Compared to absorption refrigerators common in caravans:

• 70-80% more energy efficient - critical for limited power
• Works at any angle - essential for boats at sea
• Consistent cooling in extreme temperatures
• Much quieter operation than gas absorption
• No propane required - safer on boats
• Better temperature control for food safety
• Faster cooling after provisioning
• Lower operating costs over time

Special Features for Long-Term Storage

Designed for seasonal use common in boats and caravans:

• Seamless interior prevents mold growth
• Rounded corners eliminate cleaning dead spots
• Easy wipe-down for seasonal prep
• Safety lock prevents accidental opening during storage
• Removable door panel facilitates deep cleaning

Energy Efficiency for Off-Grid Use

With 50W maximum consumption, the Cruise 86:

• Operates efficiently on modest solar systems
• Works with typical marine and caravan batteries
• Minimal drain on power reserves
• Suitable for extended off-grid periods
• Battery protection prevents unexpected discharge
• Compatible with most inverter systems

Door Storage Optimization

The three-tier door system maximizes accessibility:

• Large PET bottles (up to 1.5L) in lower shelf
• Standard bottles and cans in middle shelf
• Frequently used small items in upper shelf
• Everything within easy reach
• Reduces need to open entire fridge
• Improves energy efficiency

Installation Considerations

Ventilation requirements:

• Bottom-mounted compressor requires clearance
• Fan-cooled design needs air circulation
• Ensure proper ventilation in cabinetry
• Follow manufacturer's installation guidelines

Mounting:

• Designed for built-in installation
• Secure mounting recommended for mobile use
• Consider vibration and movement
• Professional installation advised for marine applications

Investment in Slim, Reliable Refrigeration

The Indel B Cruise 86 combines Italian engineering with practical design specifically for narrow-space installations in boats and caravans. With its bottom-mounted compressor, dedicated freezer, and ultra-slim profile, this refrigerator delivers professional performance where space is at an absolute premium.

Transform your narrow galley or compact caravan kitchen with intelligent refrigeration that fits where others can't - slim design, full capacity, uncompromising performance.

---

Product: Cruise 86
Brand: Indel B (Italy)
Model: Cruise 86
Total Capacity: 86 liters (76L fridge + 10L freezer)
Width: 380mm (ultra-slim)
Category: Slim vertical compressor refrigerators with bottom-mounted compressor
