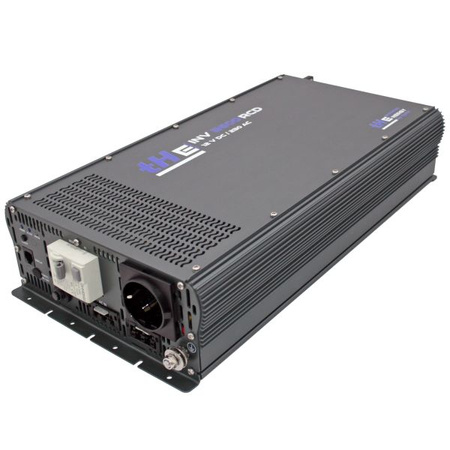

Inverter with Mains Priority Switching Function and RCD, tHENERGY INV 3600

Energy transfer for 230 V socket consumers

The inverters of the INV series from ten Haaft Energy provide a reliable power supply for all 230 V consumers in your motorhome – with maximum efficiency, high safety and a hum-free operation. Thanks to their pure sine wave output, they guarantee safe and stable operation of sensitive devices with a power rating of up to 3600 W. The specially designed, compact construction allows space-saving installation even in limited installation spaces and simultaneously reduces weight – ideal for mobile applications.

Mains priority switching

All inverters feature a mains priority switching function that automatically switches to supply from the external power grid as soon as it is available, and only supplies power from the battery when no external mains supply is present.

Advantages of the INV Series at a glance:

• Pure sine wave with stable frequency and voltage for sensitive consumers such as laptops, coffee machines, TVs, etc.
• High performance: operation of devices up to 3600 W (depending on model)
• Wide temperature range: operational from -20 °C to +45 °C
• Compact, lightweight design – saves space and weight
• Hum-free operation – ideal for indoor use
• Modern HF technology – reduces the size of the required transformers
• Electrical isolation of input and output – protects the onboard network from faults
• Mains priority switching – automatic switching to shore power when available
• Multiple protection functions: overload, undervoltage, short circuit and overvoltage protection
• Interface – for communication with ten Haaft Energy systems
• Remote ON/OFF function for connection to automated or higher-level control systems (e-bike charging while driving)
• Standby function automatically detects whether a consumer is connected to the inverter

RCD (residual current device in the device)

As a special further development, the versions with RCD already offer the necessary integrated protective device for professional, plug-in installation. The plug connections used are reverse polarity-proof and vibration-proof with a locking mechanism.

Scope of delivery:

• Sine wave inverter (depending on model)
• Control unit with connection cable (integrated in the INV 1000)
• Grounding cable
• Remote connection cable
• AC-IN cable, WAGO, open end, 1 m
• AC-OUT cable, WAGO, Schuko coupling, 1.5 m (not included with INV 1000)
• Temperature sensor cable, including battery temperature sensor
• Protective caps for the battery connection cables

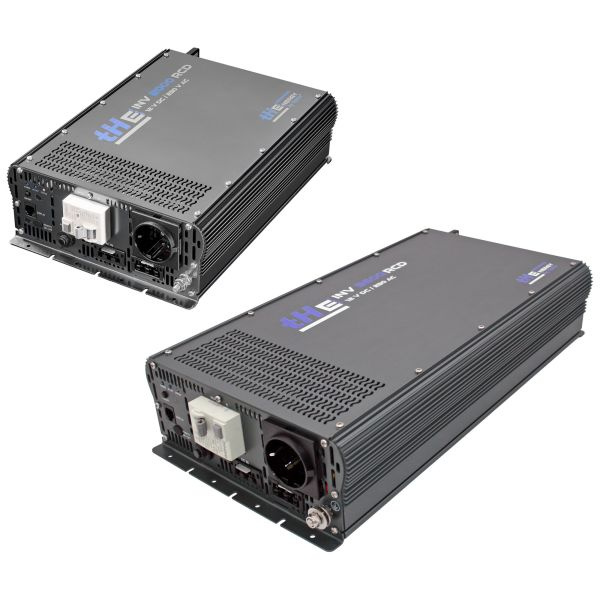

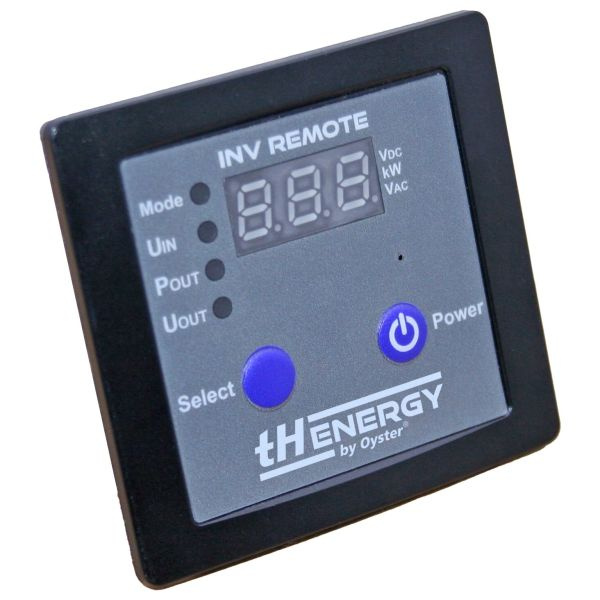

The inverters of the INV series feature a unique housing height of 90 mm as well as a remote control or remote display with a 5 m connection cable included. Five models are available, optionally with residual current device (RCD) integrated in the unit.
