Jokon SPL 2011 double-sided LED end-outline marker light - black housing, white and red lens, IP67, 124 x 39 x 32 mm, for trailers and motorhomes
Jokon SPL 2011 double-sided LED end-outline marker light - black housing, white and red lens, IP67, 124 x 39 x 32 mm, for trailers and motorhomes
Jokon SPL 2011 double-sided LED end-outline marker light - black housing, white and red lens, IP67, 124 x 39 x 32 mm, for trailers and motorhomes
Jokon SPL 2011 double-sided LED end-outline marker light - black housing, white and red lens, IP67, 124 x 39 x 32 mm, for trailers and motorhomes

Jokon SPL 2011 double-sided LED end-outline marker light - black housing, white and red lens, IP67, 124 x 39 x 32 mm, for trailers and motorhomes

ID produktu: 44902
  • Jokon SPL 2011 double-sided LED end-outline marker light with black housing: white lens at the front, red at the rear. 1 W, IP67, 500 mm cable, approval E2-06078. Dimensions 124 x 39 x 32 mm, hole spacing 83 mm.
Add to shopping list
21,95 €
incl. VAT / szt.
Regular price / szt.
Size
uniwersalny
You can also buy using:
Product currently unavailable 3 business days
Szczegóły dostawy
14 days for easy returns
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.
Opis produktu

The Jokon SPL 2011 is a double-sided LED end-outline marker light with a black housing. It shows white to the front and red to the rear, so it marks the outline of a trailer, motorhome or body from both directions. The light has a 500 mm connection cable and is surface mounted with two screws at 83 mm spacing. The manufacturer now offers it as SPL 2016b.

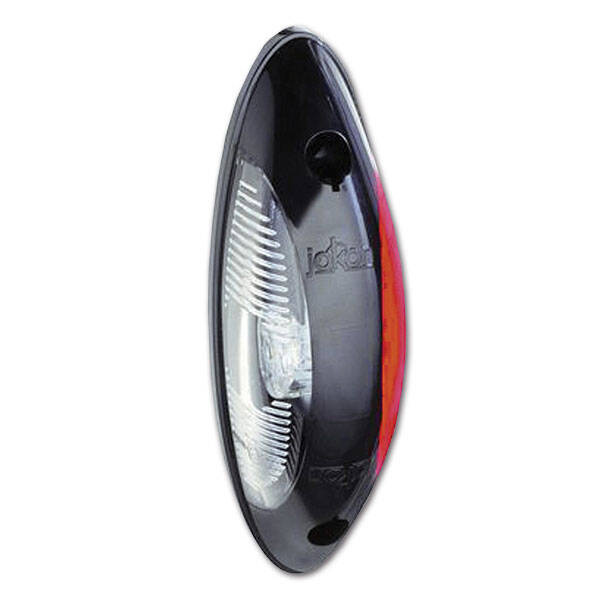

Jokon SPL 2011 double-sided LED marker light with black housing

Design

  • black ABS housing
  • PMMA lenses: white at the front, red at the rear
  • LED light source, 1 W
  • protection class IP67
  • 500 mm connection cable, no plug

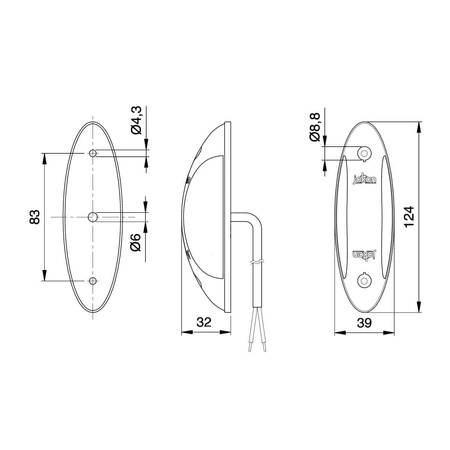

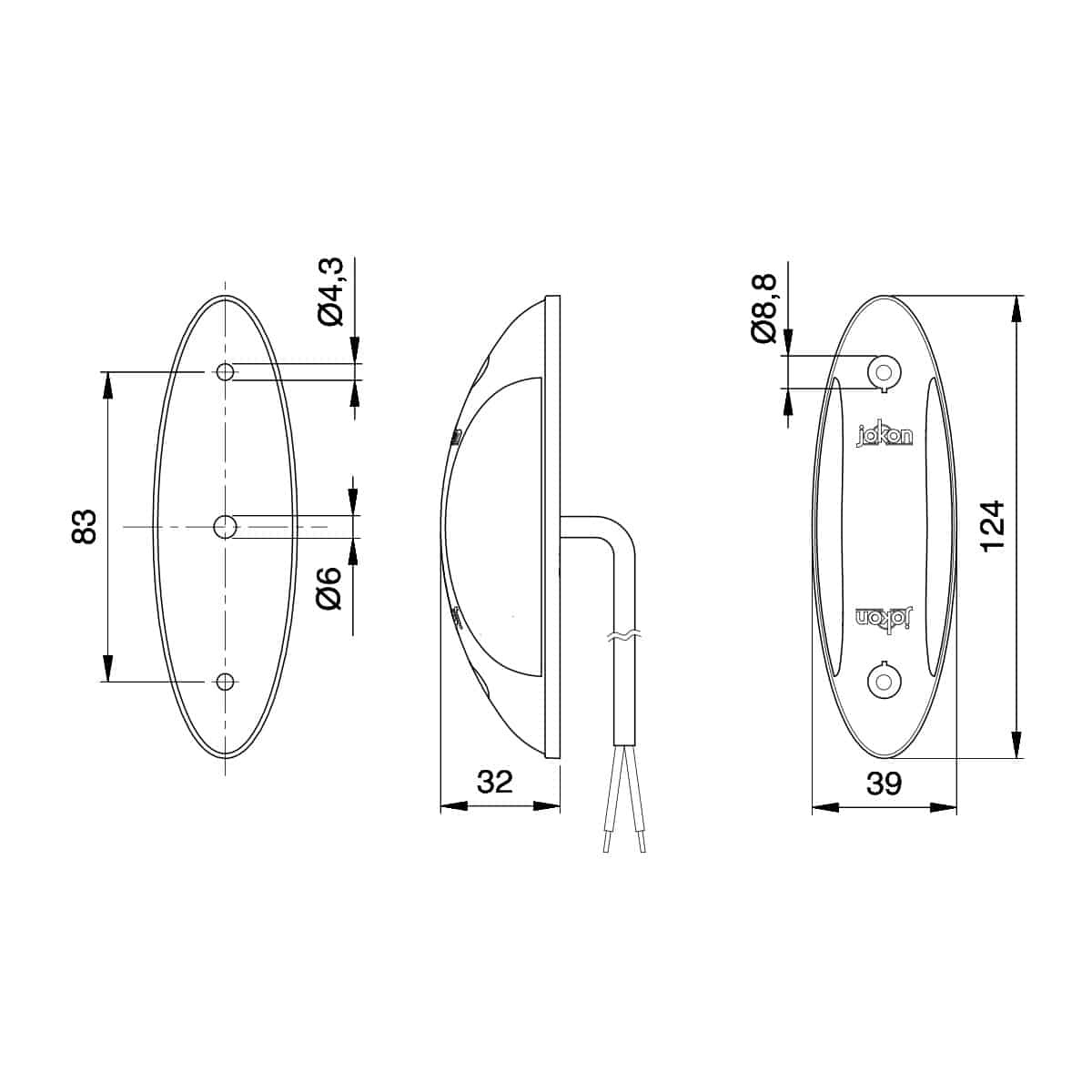

Jokon SPL 2011 dimension drawing: 124 x 39 x 32 mm, hole spacing 83 mm

Mounting

  • surface mounting with two screws
  • mounting hole spacing 83 mm
  • mounting holes Ø 4.3 mm, cable hole Ø 6 mm
  • dimensions 124 x 39 x 32 mm

Other marker lights in our shop

Technical data

ParameterValue
ManufacturerJokon
ModelSPL 2011 (now SPL 2016b)
Typedouble-sided LED end-outline marker light
Light colourwhite at the front, red at the rear
HousingABS, black
LensPMMA
Power1 W
Protection classIP67
Cable500 mm, no plug
ApprovalE2-06078
Dimensions124 x 39 x 32 mm
Hole spacing83 mm
Mounting hole diameter4.3 mm

Questions and answers

What voltage is the light for?

The manufacturer offers the SPL 2011 series in 12 V, 24 V and 12/24 V versions. If you need a specific voltage, ask us before ordering.

What is the mounting hole spacing?

83 mm, the holes are 4.3 mm in diameter.

Does the light have a plug?

No, it has a 500 mm connection cable without a plug.

Manufacturer

Jokon GmbH, Rosenbach 42, 53229 Bonn, Germany.
