Jokon ZHBL 25 LED high level stop light 12 V, red, 361 mm - 11 LEDs, IP67, for motorhomes and caravans
ID produktu: 38119
- Jokon ZHBL 25 is a flat LED high level stop light for surface mounting with screws. 11 LEDs, 12 V / 1.6 W, red lens with clear glass optics, IP67, 250 mm cable. Dimensions 361 x 52 x 15.2 mm.

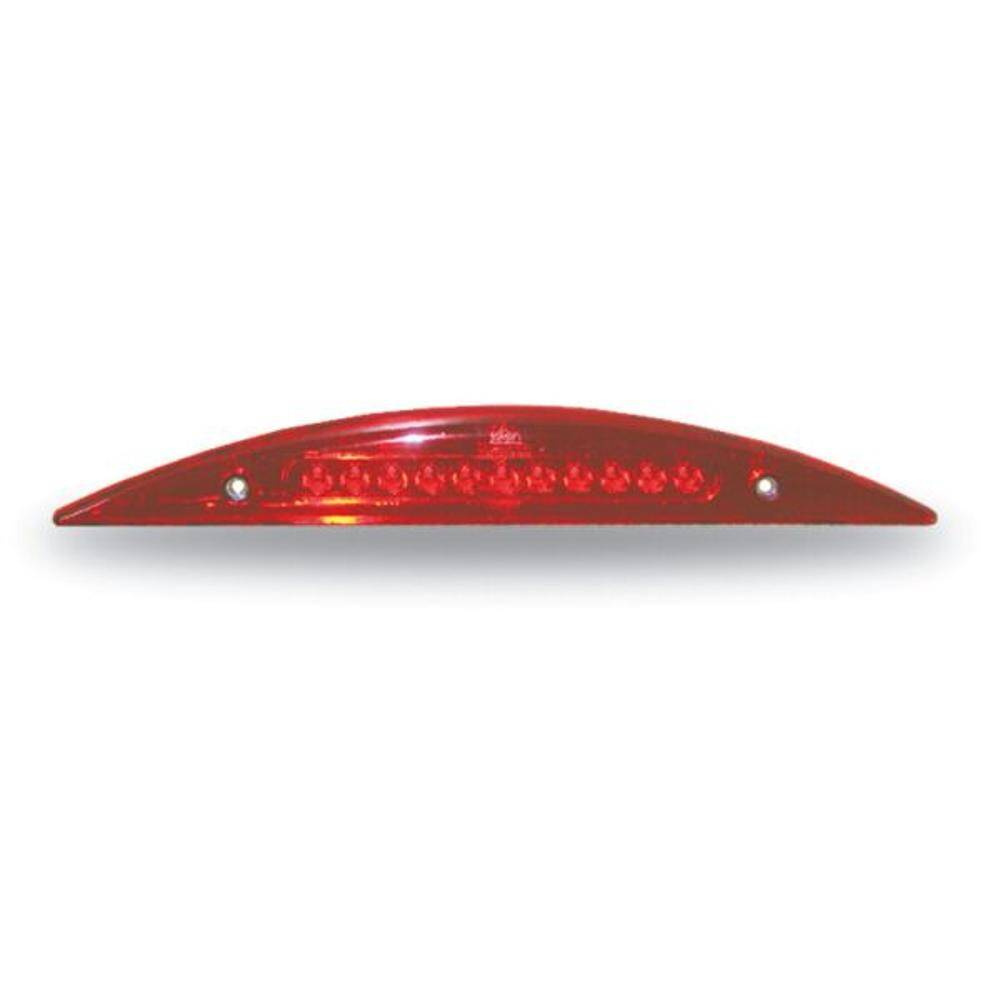

Jokon ZHBL 25 is an additional (third) LED brake light for motorhomes, caravans and vans. The light has a low, flat profile and 11 LEDs behind a red lens with clear glass optics. It is surface mounted with 2 screws, and the screw holes are covered by cover caps. The light is sealed in a waterproof manner (IP67) and ready for plug-in with a 250 mm cable.
A clear brake signal
- 11 LEDs in a single row
- red lens with clear glass optics
- power consumption only 1.6 W at 12 V
- E approval: S3 E2-0205026

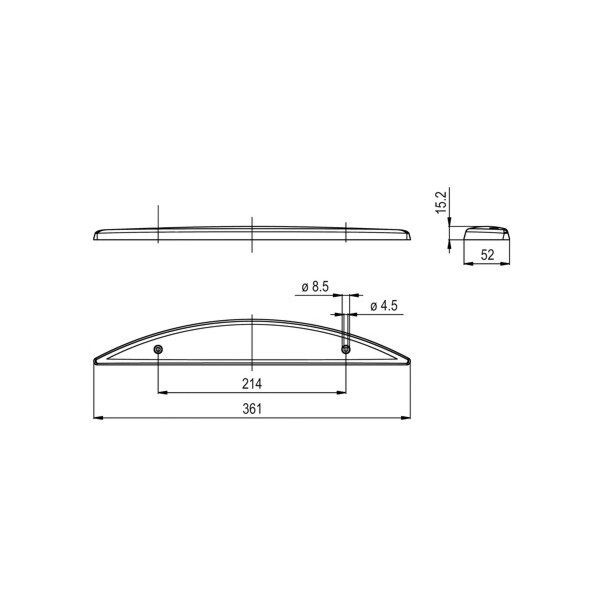

Dimensions and mounting
- dimensions 361 x 52 x 15.2 mm, low profile
- surface mounting with 2 screws, hole spacing 214 mm
- holes ø 4.5 mm with ø 8.5 mm counterbore, covered by cover caps

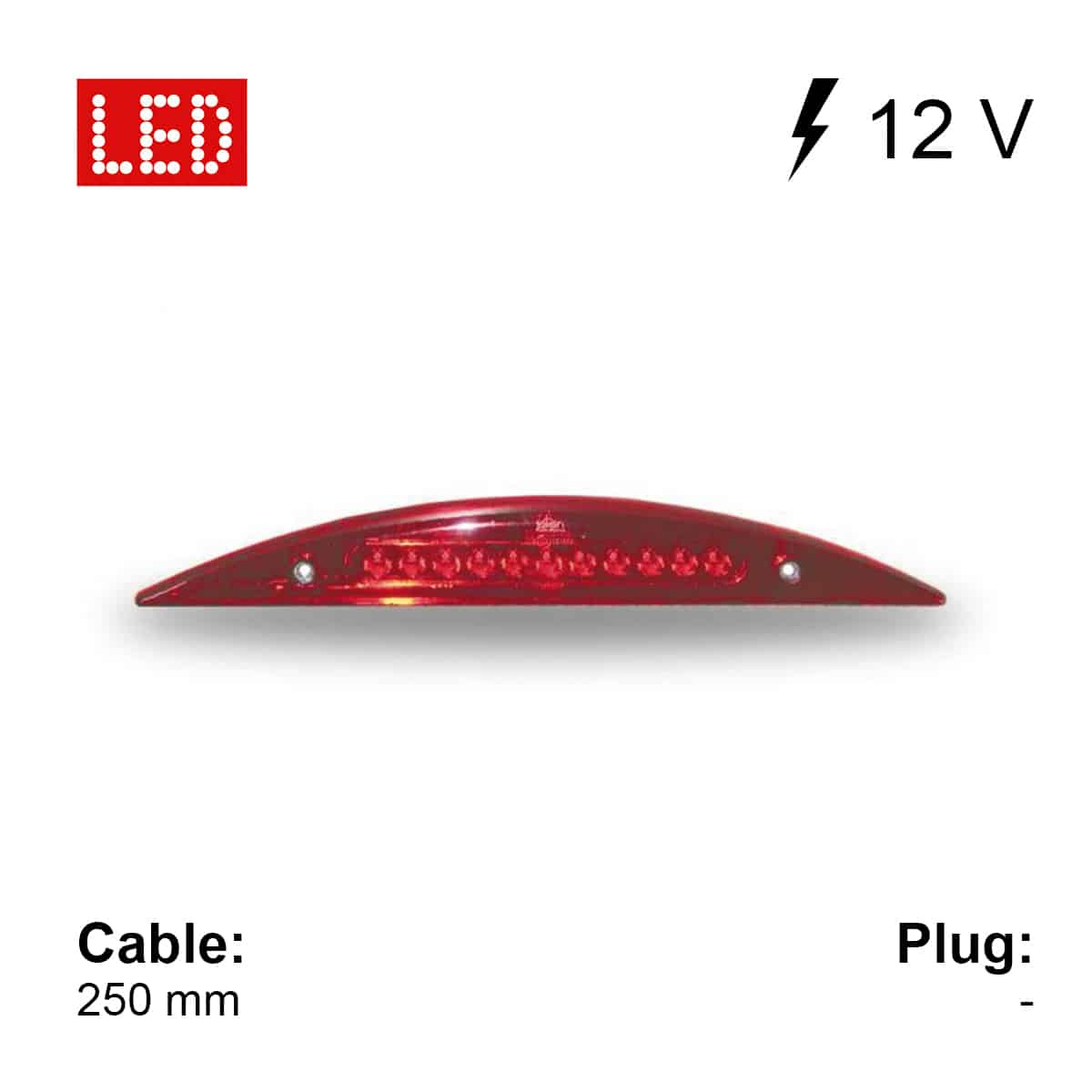

- 250 mm connecting cable
Design
- sealed in a waterproof manner and ready for plug-in
- protection class IP67
- PMMA lens, ABS housing
- weight approx. 0.11 kg
Connection
- 12 V version for 12 V systems
- connect the cable to the vehicle brake light circuit
- the manufacturer also offers a 24 V version and a version with a clear lens
Other Jokon high level stop lights
- Jokon ZHBL 03 - LED high level stop light 12 V
- Jokon ZHBL 40L - LED high level stop light
- Jokon ZHBL - LED high level stop light 310 mm, red
- Jokon ZHBL - LED high level stop light 310 mm, white
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Jokon |
| Model | ZHBL 25/12 |
| Manufacturer part number | 15.0025.002 |
| Light type | high level stop light |
| Light source | 11 LEDs |
| Voltage | 12 V |
| Power | 1.6 W |
| Lens colour | red (clear glass optics) |
| Material | PMMA / ABS |
| Protection class | IP67 |
| Approval | S3 E2-0205026 |
| Cable | 250 mm |
| Mounting | surface mounted, 2 screws |
| Hole spacing | 214 mm |
| Dimensions (L x W x H) | 361 x 52 x 15.2 mm |
| Weight | approx. 0.11 kg |
Questions and answers
Can the light be used on 24 V?
No. This version is for 12 V. The manufacturer offers a separate ZHBL 25 version for 24 V.
How is the light mounted?
Surface mounted with 2 screws at 214 mm spacing. Cover caps hide the screw holes, and the light comes with a 250 mm cable.
Is the light waterproof?
Yes. It is sealed and rated IP67.
Is the light approved?
Yes, it has E approval S3 E2-0205026.
How much power does it draw?
Power consumption is 1.6 W at 12 V.
Manufacturer
Jokon GmbH, Rosenbach 42, 53229 Bonn, Germany.
ID produktu
38119
Brand
Product length in centimeters
36
Product height in centimeters
1.6
Product width in centimeters
5
Color
Red
Gross weight
130 g
Height
52
LED
Tak
Width
361
Depth
1.52 cm
Nominal voltage
12 V
Net weight
120 g
Max package dimension
36 cm
Min package dimension
1.6 cm
Middle package dimension
5 cm
Power consumption
1.6 W
IP protection rating
IP67
Cable length
25 cm
Material
PMMA, ABS
Model
ZHBL 25/12
