Kathrein CAP Converter V2 204500001 - control unit for CAP 650/750/850 GPS, CAP 550M plus and HDS 166 plus automatic satellite systems, 12 V
- Kathrein control unit for CAP 650, 750 and 850 GPS, CAP 550M plus and HDS 166 plus. It controls the antenna from a receiver or a TV with a satellite tuner. With the UFZ 132 adapter and the CAPcontrol app it streams live TV and radio. Supply 10.5-30 V.

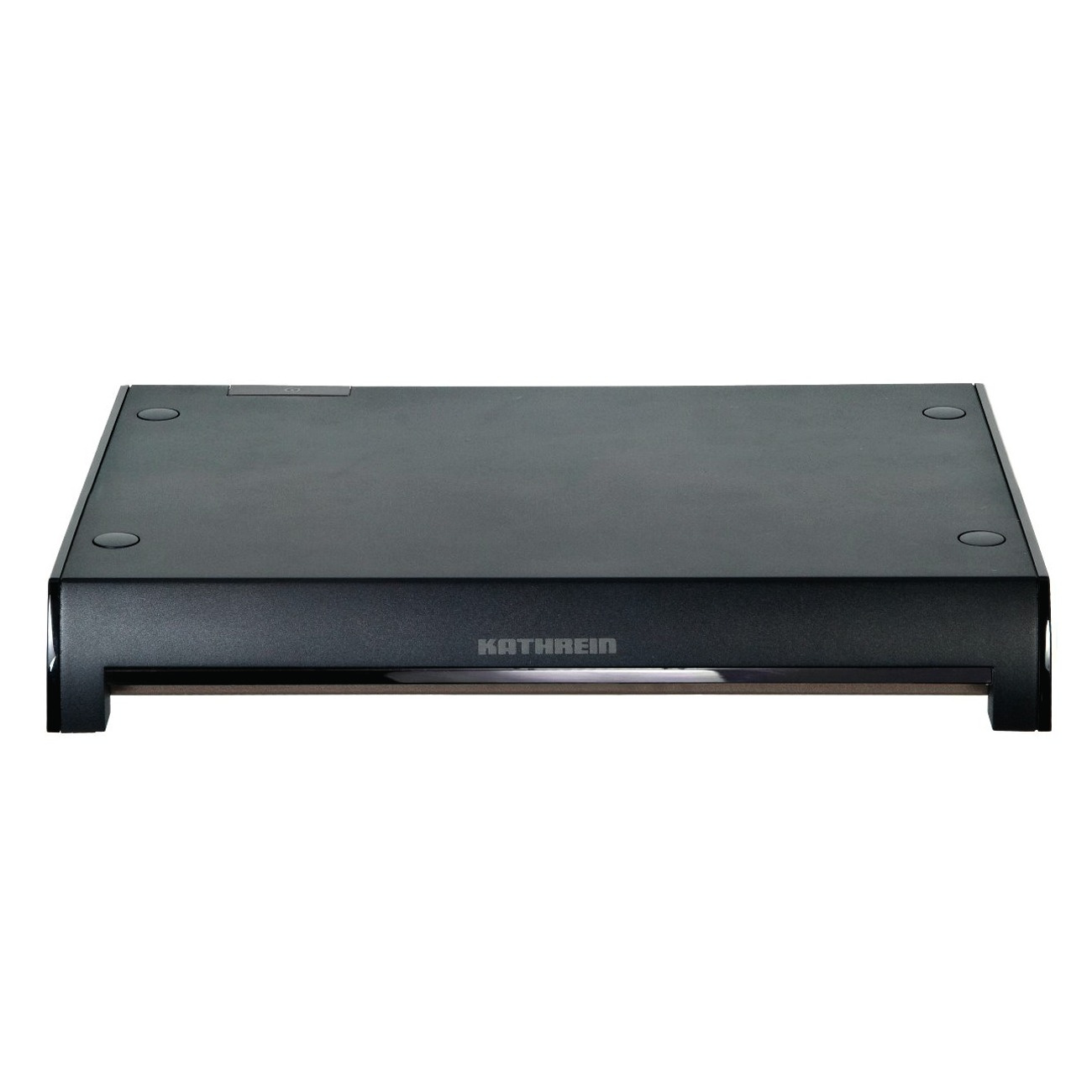

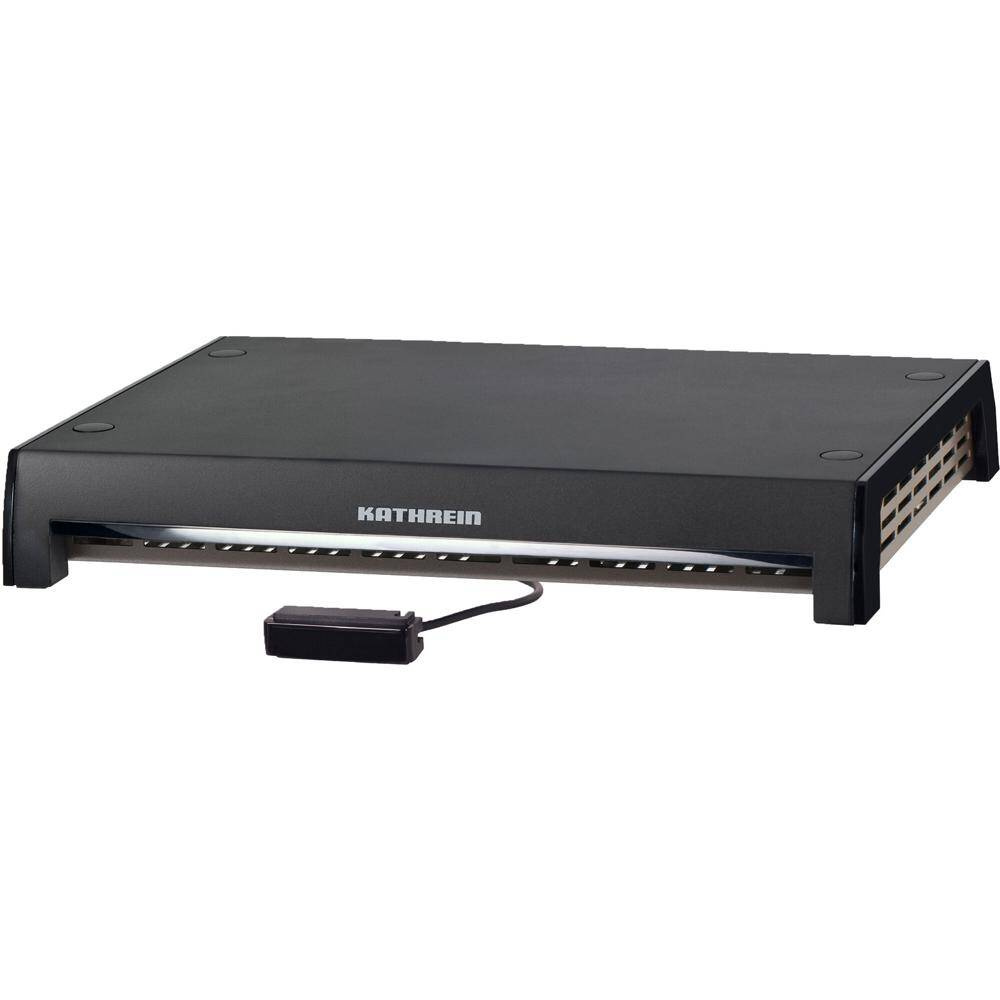

The CAP Converter V2 is the Kathrein control unit for the fully automatic CAP 650 GPS, CAP 750 GPS, CAP 850 GPS and CAP 550M plus satellite systems and the semi-automatic HDS 166 plus set. It connects the antenna to a TV with a satellite tuner or to a receiver and controls it with DiSEqC 1.0 or 22 kHz signals. With the UFZ 132 WLAN adapter and the free CAPcontrol app for Android and iOS you can control the antenna from your smartphone and stream live TV. The converter is intended for stationary motorhomes and caravans.
What it does
- controls the fully automatic CAP 650 GPS, CAP 750 GPS, CAP 850 GPS and CAP 550M plus
- controls the semi-automatic HDS 166 plus set
- replaces the receiver on older fully automatic Kathrein systems; the CAP outdoor unit then needs a firmware update at a Kathrein service point
- for the CAP 550M plus a software update of the converter is required out of the box
- 4 satellite positions selectable from the receiver or TV, factory set to Astra 19.2°E, Hotbird 13°E, Astra 23.5°E and Astra 28.2°E

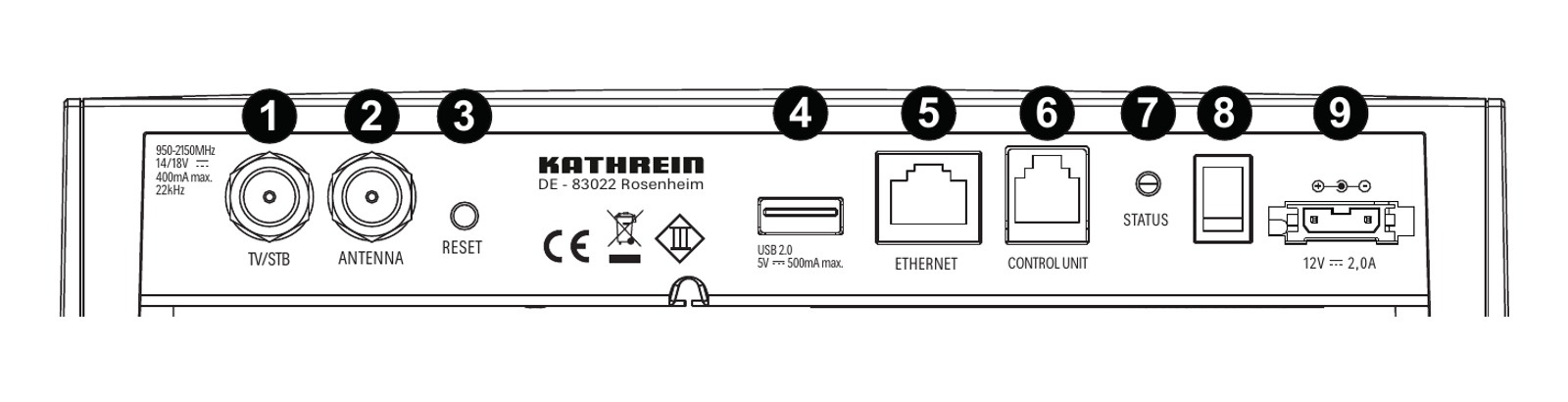

Rear panel connections
- TV/STB - satellite signal output to the TV or receiver (F socket)
- ANTENNA - signal input from the CAP or HDS antenna (F socket)
- USB 2.0 type A - software and channel list updates, UFZ 132 adapter
- ETHERNET RJ45 - router connection
- CONTROL UNIT RJ12 - external button or HDS 50/HDS 52 control panel
- STATUS LED, RESET button, power switch and 12 V 2.0 A power socket
Installation and power
- install in a dry interior, e.g. a cupboard or locker, in any position with 4 screws
- keep the rear panel and the side fuse accessible
- free space: 20 cm above and below, 2 cm at the sides, 5 cm front and rear
- 10.5-30 V supply from the vehicle, protected by a 5 A fuse
- in the box: converter, 12 V power cable, button and user manual
Related products
- Kathrein CAP 650 GPS automatic satellite system
- Kathrein CAP 750 GPS automatic satellite system
- Kathrein CAP 850 GPS automatic satellite system
- Kathrein HDS 166 plus mobile antenna set
- Kathrein UFZ 132 USB WLAN adapter
- Kathrein HDS 50 external control panel
- Kathrein HDS 42 Master/Slave switch
- Kathrein EV 06 exterior satellite socket
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Kathrein |
| Model | CAP Converter V2 |
| Manufacturer part no. | 204500001 |
| EAN | 4063242000173 |
| Colour | black |
| Compatible with | CAP 650 GPS, CAP 750 GPS, CAP 850 GPS, CAP 550M plus, HDS 166 plus |
| Satellite IF range | 950-2150 MHz |
| Input level range | 44-83 dBµV |
| Standard | DVB-S/DVB-S2 |
| Input data rate | 2-45 MSymb/s (30 with DVB-S2/8PSK) |
| Control signals | DiSEqC 1.0 / 22 kHz; 14/18 V |
| LNB supply | 14/18 V, max. 400 mA |
| Supply voltage | 10.5-30.0 V |
| Power consumption | max. 14 W, typical 12 W, standby 0.2 W |
| Connections | 2 x F, USB 2.0, RJ45, RJ12 |
| Operating temperature | -10 to +45°C |
| Dimensions | 226.3 x 171.2 x 37.5 mm |
| Weight | 0.5 kg |
| In the box | converter, 12 V power cable, button, user manual |
Questions and answers
Which antennas does it work with?
With the fully automatic Kathrein CAP 650 GPS, CAP 750 GPS, CAP 850 GPS and CAP 550M plus and the semi-automatic HDS 166 plus set.
Can I use it with an older CAP antenna?
Yes, on older fully automatic Kathrein systems it replaces the receiver. The CAP outdoor unit then needs a firmware update at a Kathrein service point.
Can I control the antenna from my smartphone?
Yes, with the UFZ 132 WLAN adapter or a router connected by LAN cable and the free CAPcontrol app for Android and iOS.
What supply voltage does it need?
10.5 to 30 V. The manufacturer recommends a 5 A fuse between the positive cable and the battery.
Does it work while driving?
No. The manufacturer intends it for stationary motorhomes and caravans.
Manufacturer
KATHREIN Digital Systems GmbH, Salinstraße 34, 83022 Rosenheim, Germany.
