LiFePO4 battery 25,6V/100Ah NG New Generation Victron

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with a nominal voltage of 12.8 V, 25.6 V and 51.2 V in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12 V, 24 V or 48 V. The maximum number of batteries in one system is 50, which results in a maximum energy storage of 192 kWh in a 12 V system and up to 384 kWh in a 24 V and 48 V system.

Key features:

Integrated shunt

The battery data (battery voltage, current and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication centre, or to create and issue specific warnings and alarms. Automatic setup, monitoring and control via VictronConnect App or a GX device and the VRM Portal All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication centre or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.

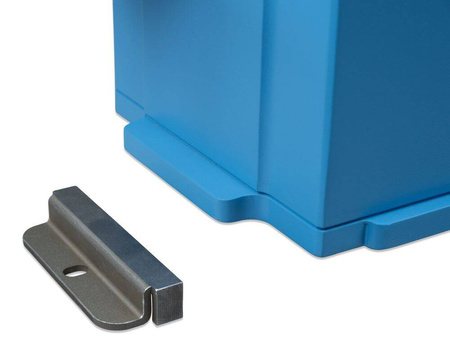

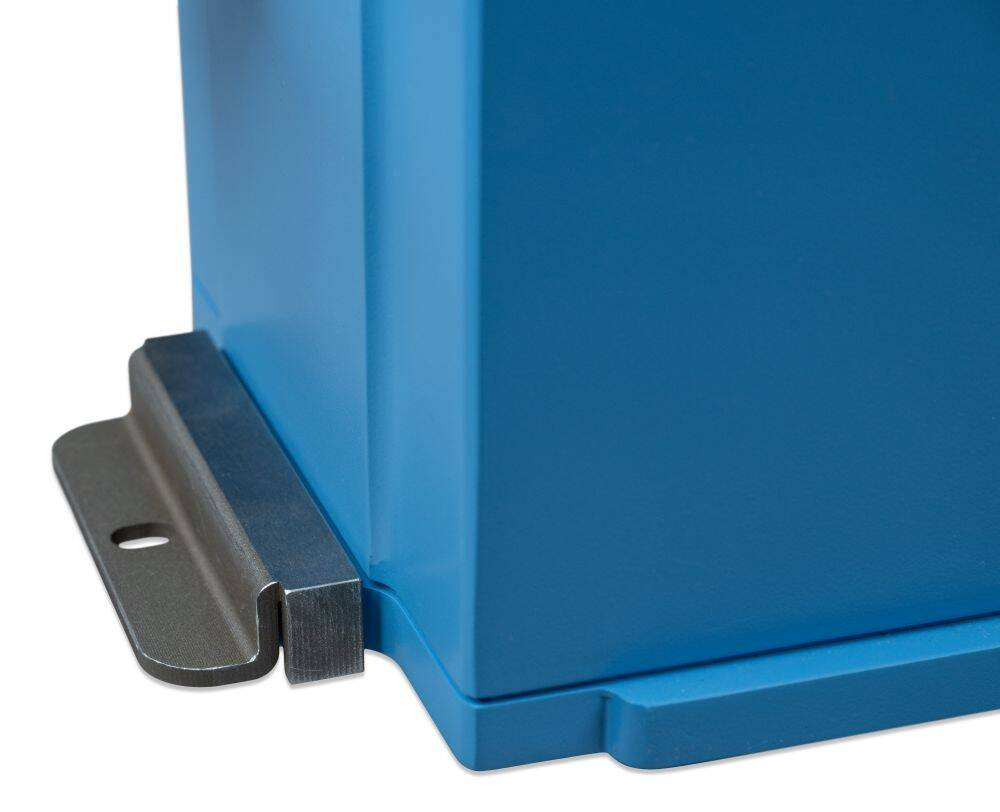

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

Our Lithium NG batteries have integrated cell balancing and cell monitoring. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).

Battery Management System (BMS) The BMS will:

1. Generate a pre-alarm whenever the voltage of a battery cell decreases to less than 3.0 V.

2. Disconnect or shut down the load whenever the voltage of a battery cell decreases to less than 2.8 V.

3. Stop the charging process whenever the voltage of a battery cell increases to more than 3.6 V or when the temperature becomes too high or too low.

See the BMS datasheets for more features.

VOLTAGE AND CAPACITY: LFP- 25,6/100

Nominal voltage: 25,6 V

Nominal capacity @ 25 °C*: 100 Ah

Nominal energy @ 25 °C*: 2560 Wh

Capacity loss: (per 100 cycles, @ 25 °C, 100 % DoD): <1 %

Energy loss: (per 100 cycles, @ 25 °C, 100 % DoD): <1 %

Round trip efficiency: 0.92

80 % DoD: 2500 cycles

70 % DoD: 3000 cycles

50 % DoD: 5000 cycles

Max continuous discharge current (C-rate): 100 A (1C)

Max pulse discharge current 10s (C-rate): 200 A (2C)

End of discharge voltage: 22,4 V

Internal resistance: 4 mΩ

Charge voltage: Between 14 V / 28 V / 56 V and 14,4 V / 28,8 V / 56,8 V

Float voltage: 13,5 V / 27 V 54 V

Max continuous charge current (C-rate): 100 A (1C)

Max pulse charge current 10s (C-rate): 200 A (2C)

BMS-es: Lynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately

Cell measurements: Cell voltages and temperatures, battery current

Battery BMS interface Alarm feature: Male + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters Pre-alarm contact on BMS

Bluetooth: In the BMS

Max batteries per BMS: 50 (384 kWh per BMS 3))

Battery firmware updates: Battery firmware automatically updated by BMS

Repairable: Yes (cover can be removed with screws)

Operating temperature: Discharge: -20 °C to +50 °C | Charge: +5 °C to +50 °C

Storage temperature: -45 °C to +70 °C

Humidity (non-condensing): Max. 95 %

Protection class: IP65

Mounting options: Strap or mounting brackets

Can be placed on their sides: Yes2)

Self-discharge rate: ≤ 3 % per month @ 25 °C

Power connection: M8 (threaded inserts and bolts)

Dimensions (h x w x d) mm: 235 x 341 x 160

Weight (est.): 19 kg

Safety: Cells: UL1973 UL9540A IEC62619

: Battery: IEC 62619 (pending)

EMC: EN 61000-6-3, EN 61000-6-2

Automotive: ECE R10-6 (pending)

Performance: IEC 62620 (pending)
