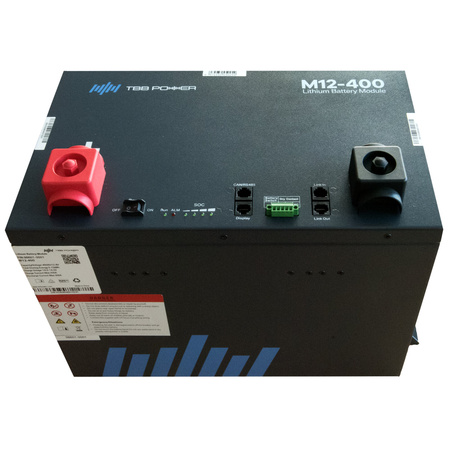

TBB Power M12/H lithium battery with heating – powerful and reliable in extreme temperatures
The TBB Power M12/H is the ideal solution for anyone who needs a reliable power supply even in extreme temperatures. Thanks to the integrated heating element, this lithium iron phosphate battery enables charging even at outside temperatures of up to -30 °C.
Efficient battery management system for maximum performance
The modern battery management system (BMS), specially developed by TBB Power, ensures the most efficient use of the battery. The precisely coordinated control software guarantees a long service life of over 3000 cycles at 100% DoD and 25 °C, while the RS485 and CAN interfaces enable seamless integration into TBB systems.
Modular design for flexible application possibilities
The TBB Power M12/H can be operated as a single battery or in parallel with up to eight batteries. This offers maximum flexibility for a wide range of applications, from stationary systems to mobile applications.
Safe and robust housing for long operation
A particularly sturdy housing, made of either plastic or metal, offers comprehensive protection and ensures safe operation. Thanks to the screwed design, it can be easily repaired in the event of a fault, which also makes the recycling process at the end of the service life much easier.
Intelligent monitoring without Bluetooth
Instead of a Bluetooth module, the TBB Power M12/H has an interface for the MEH-B display. This panel enables central monitoring of all batteries as one system and still offers the option of wireless communication via Bluetooth.
Certified safety according to European standards
The TBB Power M12/H meets the strict European automotive guidelines and is certified according to UN ECE R10.06, making it the safe choice for use in vehicles and other demanding environments.
Powerful highlights of the TBB Power M12/H lithium battery:
- Integrated heater: Safe charging at temperatures down to -30 °C.
- Long cycle life: Over 3000 cycles at 100% DoD and 25 °C.
- High discharge performance: Maximum discharge current of 300 A for up to 10 minutes.
- Modular operation: Supports parallel connection of up to 8 batteries.
- Efficient BMS: Built-in high precision (± 0.1 A) shunt for SoC (state of charge) calculation and significant quiescent current reduction of 90% (<0.1 mA) when the battery is turned off.
- Robust design: Stable for safe operation and easy recycling.
- Practical: supports battery remote switch
- UN ECE R10.06 certification: Complies with all European directives for motor vehicles.
- 5-year manufacturer’s warranty: Long-term safety and protection.
With the TBB Power M12/H you are relying on a battery that delivers its full performance even under the toughest conditions and offers maximum safety and flexibility.

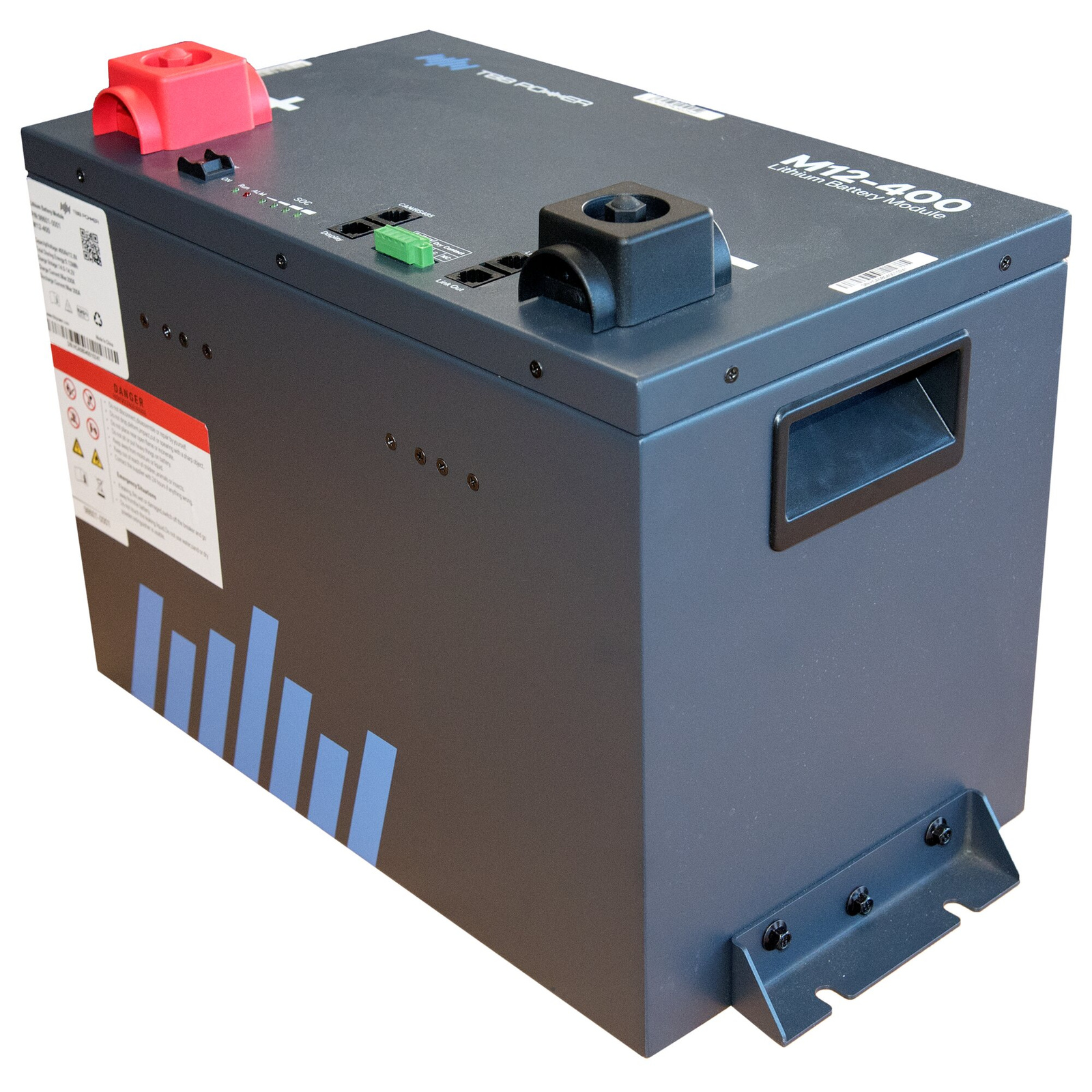

metal housing
Technical data
- Type: M12-400/H
