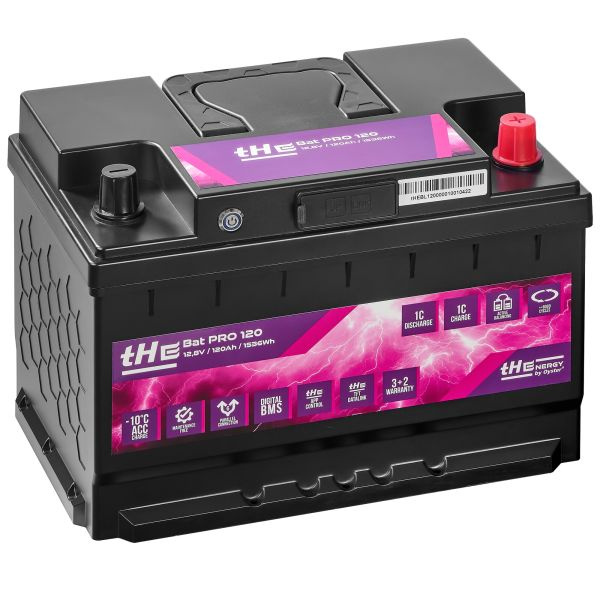

Lithium Battery Premium LiFePO₄ tHE BatPro 120, 12.8 V, 120 Ah
Convenient energy storage
The tHE BatPro Series LiFePO₄ battery offers unlimited comfort. With the tHE BatPro series, you can be maximally self-sufficient while saving electricity. The digital battery management system (BMS) built into every battery ensures that the battery is protected from misuse. For example, it switches the battery off in case of undervoltage or overvoltage and automatically switches it back on once the issue is resolved. Bluetooth and app connectivity, as well as an integrated switching function, enable maximum ease of use. Additionally, the tHE BatPro variant features an integrated CAN/RS485 interface. Thanks to the use of the latest generation of LiFePO₄ battery cells, charging is possible even at temperatures down to -10 °C without preset charge current reduction!
Digital and analogue battery management system!
The tHE battery management systems can be seen as a consistent advancement of the classic protection circuit. In addition to the standard functions of the protection circuit, a BMS provides further relevant data such as the current remaining charge, the status of individual battery segments, the current temperature, the number of charge cycles and numerous other pieces of information for further processing. These data can be read via serial RS485 or CAN bus communication.
Advantages at a glance:
- Automatic charge current adjustment down to -10 °C, max. 1C
- Up to 1C discharge
- Up to 1C charge
- Active cell balancing
- Maintenance-free
- Parallel connection up to max. 6 tHE batteries
- Digital battery management system
- Charge-discharge cycles 8000 (at 55% DOD)
- App monitoring
- tHENERGY TFT monitor data bus
Scope of delivery:
- LiFePO₄ battery (depending on type)
- RJ45 data cable for connection to tHE CS Touch Display with 5 m cable length
- RJ45 data cable for connection to additional BatPro battery in parallel connection of multiple batteries with 0.6 m cable length
- RJ45 data cable with remote ON/OFF push button switch with 2 m cable length
- Operating instructions
