Manoeuvring System Ranger
ID produktu: 36321
Manoeuvring System Ranger
AL-KO quality and design at a good price
The strong starter model for single-axle caravans with up to 1.8 t and tandem caravans with up to 2.5 t. Precise manoeuvring without any outside help. Even on uneven grounds.
Your advantages
- AL-KO quality and design
- Levelling capacity of up to 18 % (long inclines)/more than 18 % (short inclines, e.g. levelling ramps)
- Perfect and tested AL-KO chassis connection of the European market leader for chassis
- Softstart and Softstop

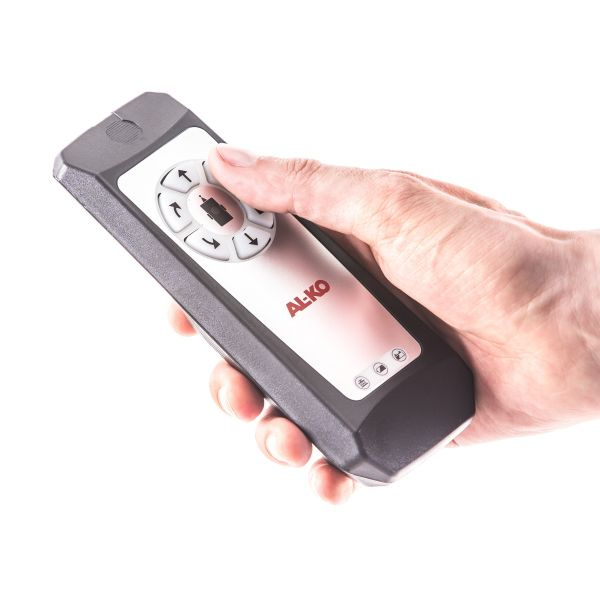

- Ergonomic remote control with lanyard
- Suitable for single- and tandem-axle vehicles
- Protected mechanism
- 5 years warranty
Technical data
- Type: S21
ID produktu
36321
Brand
Product length in centimeters
148
Product height in centimeters
43
Product width in centimeters
44
Axles
Single axle
Gross weight
45000 g
Height
234
Width
370
Depth
217
Nominal voltage
12 V
Rated current
20 A
Net weight
37000 g
Max package dimension
148 cm
Min package dimension
43 cm
Middle package dimension
44 cm
Permissible weight
1500 kg
