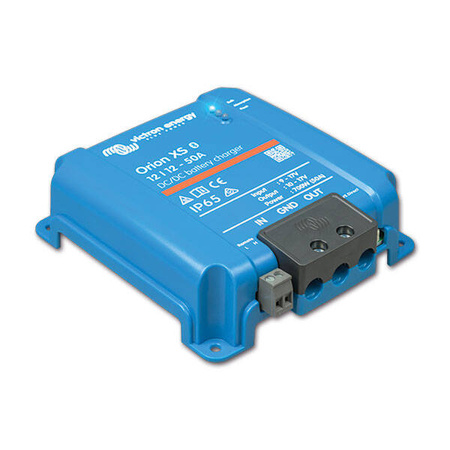

ORION 12/12-50A Victron SMART
Orion
• Smart alternator compatibility:Detects if the engine is running and only activates the charger when the alternator is supplying power. In this way, it only draws energy when needed.• 4-stage charging algorithm: During small discharges, the absorption time is short to avoid overcharging. After a deep discharge, the absorption time is extended to fully charge the battery.• Protections: Orion XS offers protections against overcharge, short circuit and excessive temperatures. It switches off automatically in the event of low temperatures or too low an input voltage.• Remote On/Off: Can be switched on and off remotely via a switch or battery management system.• Connectivity: The unit can be monitored and programmed via Bluetooth by downloading the VicrtonConnect app, or via wired remote control (optional).• Parallel connection: Multiple Orion XS units can be connected in parallel to increase output current.
| Input voltage | 9-17 F |
| Output voltage | 10-17 V |
| Maximum output current | 50 A |
| Continuous output power up to 40 ºC 1) | 700 W |
| Weight | 0.330 kg |
| Dimensions | 137 x 123 x 40 mm |
