PK23-2-SB PICO Standard Set Standalone I Black - Rev23
ID produktu: 49221
Opis produktu
PK23-2-SB PICO Standard Set Standalone I Black - Rev23
PICO One set is perfect for you if you want to monitor 1 main battery or battery bank, 1 additional starter or auxiliary battery, and up to 2 tanks or temperatures.

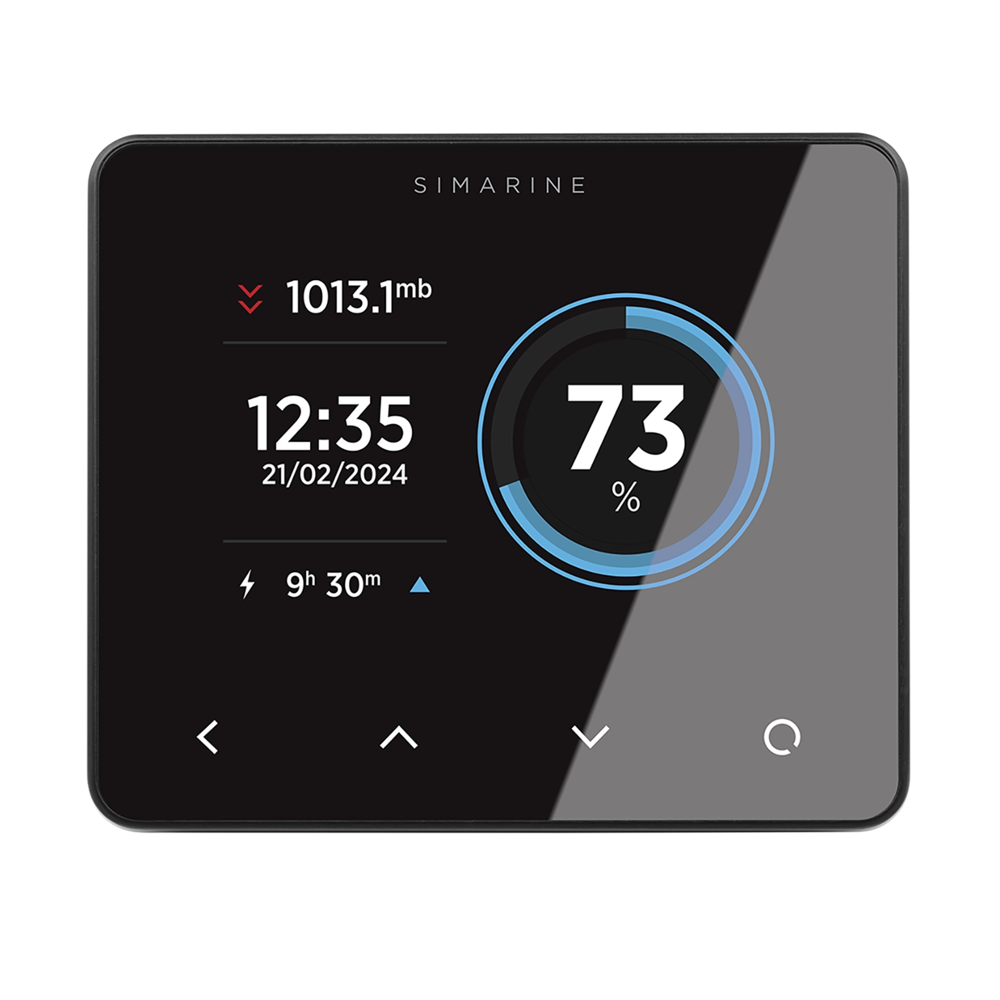

It features two main devices. PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

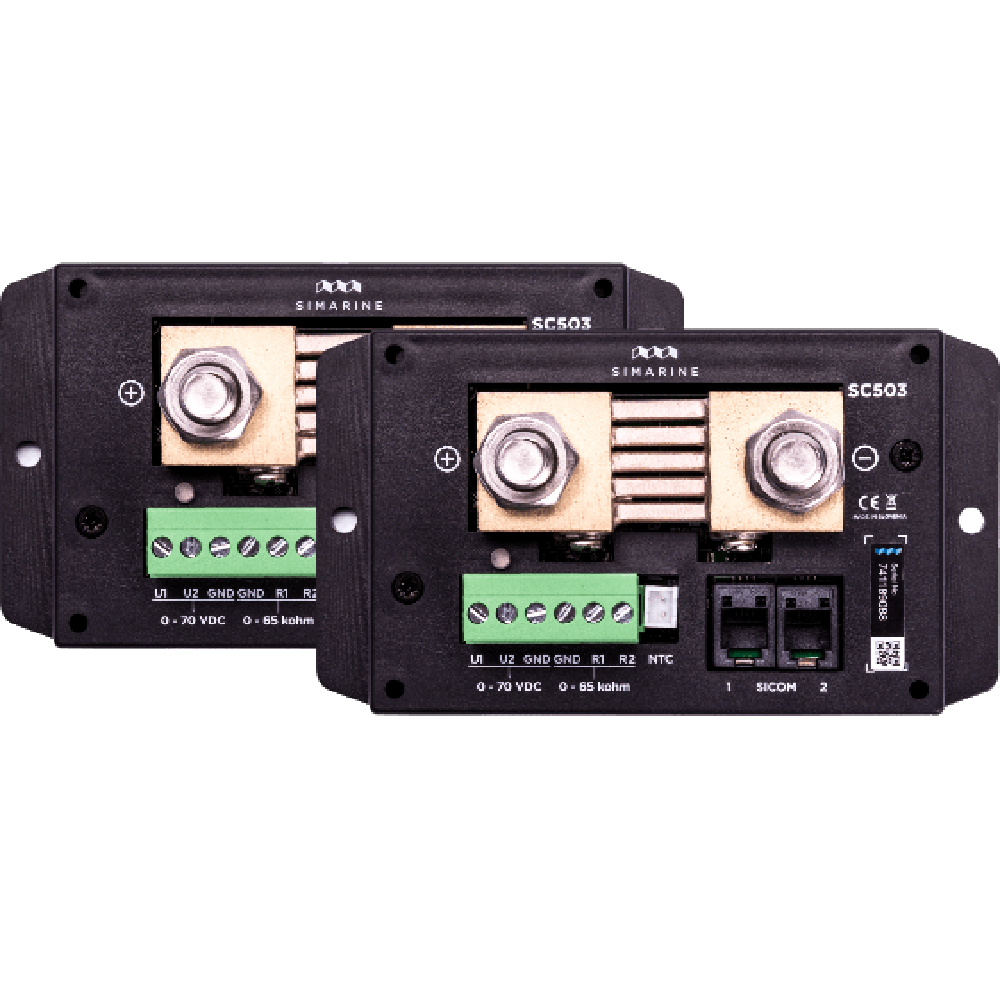

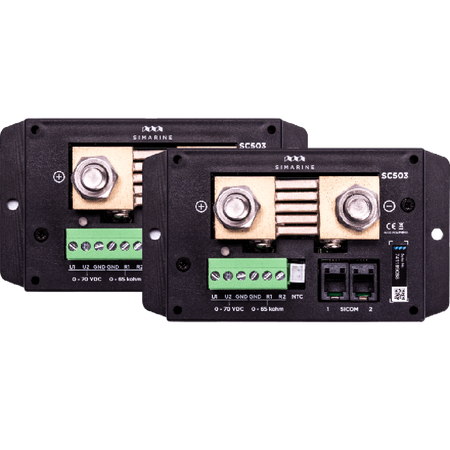

The SC303 shunt, which is included in this set, allows for a continuous current up to 300 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.

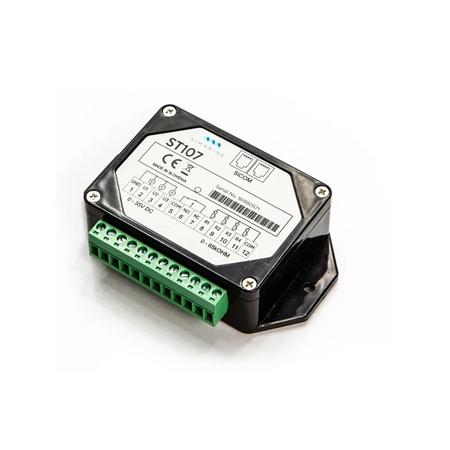

Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.
One of this module’s special features is a built-in, programmable alarm signal relay, which you can configure to output a signal of 1 amp if an alarm is triggered.
Technical charcteristics of individual elements
P201 PICO STANDALONE BLACK - Rev 2.0
Operating Power source voltage range: 6 - 35 VDC
Operating Temperature range: -20°C up to 70°C
Power consumption at 12 V Operating, WiFi On, 100 % illumination: 90 mA
Power consumption at 12 V Operating, WiFi Off, 70% illumination: 35 mA
Power consumption at 12 V Operating, WiFi Off, 0% illumination: 18 mA
Power consumption at 12V Power Off, logger still active: 5 mA
Display capabilities - Current Range: -999.99 to +999.99 A
Display capabilities - Current Resolution: 0.01 A
Display capabilities - Voltage Range: 0 - 75 VDC
Display capabilities - Voltage Resolution: 0.01 V
Display capabilities - Voltage Amp hours (Ah): ±0,1 Ah
Display capabilities - Temperature Range: -40°C up to + 150°C
Display capabilities - Temperature Resolution: 0,1°C
WIFI Radio Frequency Band: 2,4 GHz
Monitoring Capabilities UP TO number of Batteries: 6
Monitoring Capabilities UP TO number of Shunts: 24
Monitoring Capabilities UP TO number of Temperature sensors: 10
Monitoring Capabilities UP TO number of Tank level sensors: 14
Monitoring Capabilities UP TO number of Inclinometer sensors: 2
Length (WITHOUT CONNECTOR), mm: 98
Width (WITHOUT CONNECTOR), mm: 84
Height (WITHOUT CONNECTOR), mm: 10
Colour: Black
SC303 DIGITAL SHUNT 300A
Operating Voltage range: 6 - 35 VDC
Operating Temperature range: From -20°C up to 70°C
Power consumption at 12 V Operating: 1.2 mA
Current measuring Range: 0.01 - 300 A
Current measuring Accuracy: ± 1%
Current measuring Resolution: 0.01 A
Current measuring Sampling rate: 100 ms
Maximal current Continuous: 300 A
Peak current (<5min): 400 A
Peak current (<1min): 700 A
Maximal current Voltage drop at 300A: 37,5 mV
Maximal current Maximal voltage on terminals: 35 V
Voltage Inputs (U1, U2): 2
Voltage Range: 0 - 75 VDC
Voltage Accuracy: ± 0.3 %
Voltage Resolution: 1 mV
Voltage Sampling rate: 100 ms
Resistance Inputs (R1, R2, JST socket): 3
Resistance Range: 0 Ohm–65 kOhm
Resistance Accuracy: ±3 %
Temperature sensor – NTC 10k Range: From –13°C to +80°C
Temperature sensor – NTC 10k Accuracy (from –10 to +60°C): ± 3,0%
Communication: SiCOM
Length, mm: 125
Width, mm: 70
Height, mm: 22
Battery connection: M10 bolts
ST107 TANK MODULE
Operating Voltage range: 6 - 35 VDC
Operating Temperature range: From -20°C up to 70°C
