PlusVent - 50 x 70 cm rooflight for motorhomes and caravans, without LED, double-glazed dome, gas struts, pleated blind and fly screen, roof 25-60 mm
- PlusVent 50 x 70 cm rooflight for motorhomes and caravans, cut-out 502 x 702 mm, Midi Heki replacement. UV-resistant double-layer PMMA dome, gas struts, blind and fly screen. Version without LED. Roof 25-60 mm.

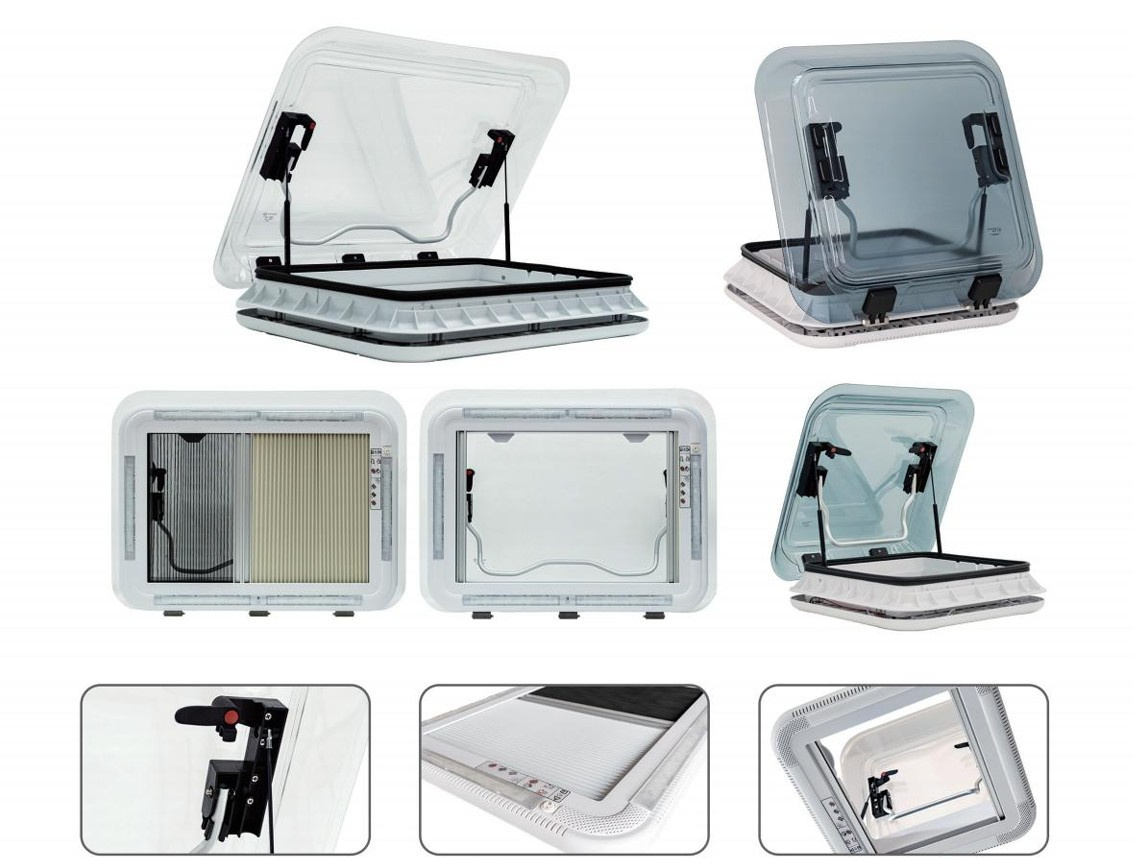

The PlusVent is a 50 x 70 cm rooflight for motorhomes, caravans and van conversions. The double-layer PMMA dome is UV resistant and ECE approved. It opens with an aluminium bar, and gas struts help lift and hold it. The interior frame holds a pleated blackout blind and a fly screen. This is the version without LED lighting. The 502 x 702 mm cut-out is practically the same as the opening of a Midi Heki.

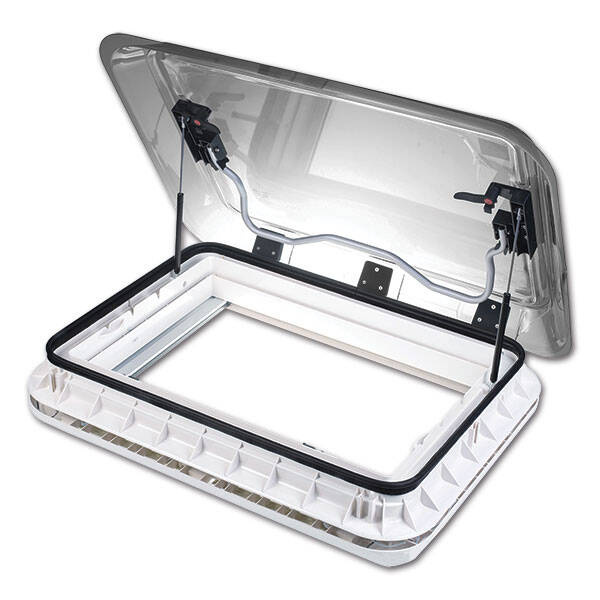

Dome and opening
- double-layer PMMA dome, UV resistant, ECE approved
- opens outwards with an aluminium bar
- gas struts assist lifting the dome
- outer and inner frames injection-moulded from ASA
- dome size 645 x 835 mm
Installation
- roof cut-out 502 x 702 mm, R50 corners
- the cut-out is practically the same as on the Midi Heki (700 x 500 mm), so the PlusVent can replace a Midi Heki in an existing opening
- for roofs from 25 to 60 mm thick
- inner frame size 580 x 780 mm

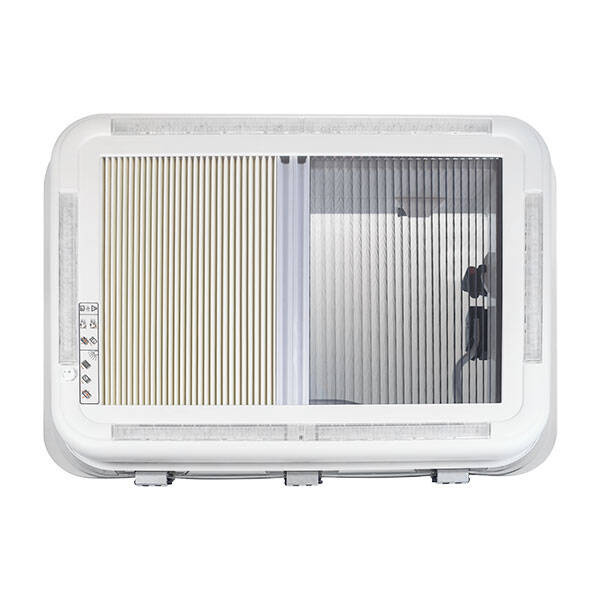

Interior frame
- pleated blackout blind
- pleated fly screen
- a magnet on the bar lets you move the blind and fly screen together or separately
- version without LED lighting
Related products
- ExtraVENT 70 Evo rooflight 70 x 50 cm with LED
- ExtraVENT 100 rooflight 96 x 65.5 cm with LED
- ExtraVENT 40 Evo rooflight 40 x 40 cm
- ExtraVENT 40 rooflight 40 x 40 cm
Technical data
| Parameter | Value |
|---|---|
| Model | PlusVent 50 x 70 cm, without LED |
| Rooflight size | 50 x 70 cm |
| Cut-out | 502 x 702 mm, R50 corners |
| Replacement for | Midi Heki - cut-out 700 x 500 mm, practically the same |
| Roof thickness | 25-60 mm |
| Dome size | 645 x 835 mm |
| Inner frame size | 580 x 780 mm |
| Dome | double-layer PMMA, UV resistant, ECE approved |
| Frame material | ASA |
| Frame colour | white |
| Opening | aluminium bar, gas struts |
| Interior frame | pleated blind and fly screen |
| Lighting | no, version without LED |
Questions and answers
What cut-out is needed in the roof?
The cut-out is 502 x 702 mm with R50 corners.
What roof thickness does it fit?
Roofs from 25 to 60 mm thick.
Will the PlusVent replace a Midi Heki?
Yes, in the existing opening. The PlusVent cut-out is 502 x 702 mm and the Midi Heki cut-out is 700 x 500 mm, practically the same size.
Does the rooflight have lighting?
No. This is the version without LED lighting.
Are the blind and fly screen included?
Yes. The pleated blackout blind and fly screen are part of the interior frame. They can be moved together or separately.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland. PlusVent brand.
