Pressure Compensation Tank

Pressure Compensation Tank

Ensures even water flow in automatic pressure pumps and prevents them from being switched on and off several times during low water withdrawal. Safety-approved for 5 bar overpressure at 60 °C according to TÜV-SW-005-93. With venting screw for draining the system and stable fastening straps on the housing.

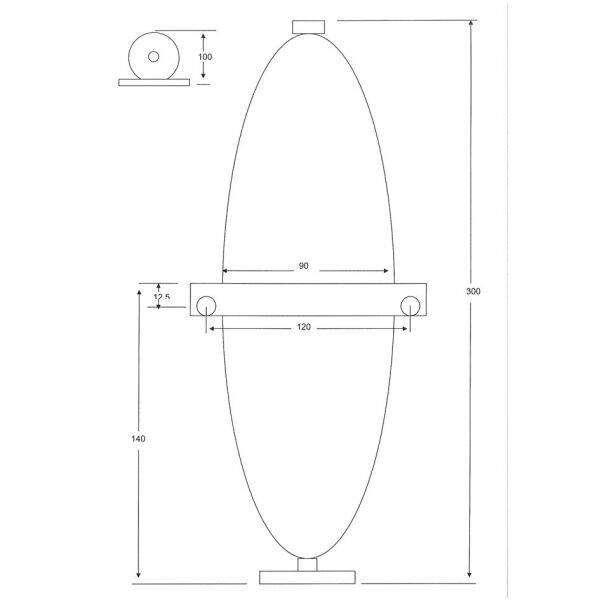

Dimensions: T-Connection ø 10/12.5 mm. Tank H 300 x W 90 mm; tank with brackets H 300 x W 100 mm; hole spacing 120 mm. Grommet W 80 x H 38 mm.
