Quadro hatch lock for motorhomes and caravans, with cylinder and 2 keys, white, 70 x 110 mm
ID produktu: 47948
- White Quadro lock for storage hatches and service doors of motorhomes and caravans. Supplied with cylinder and 2 keys. Turning the handle 180° pulls the hatch onto its seal. Size 70 x 110 mm, for wall thicknesses of 26–45 mm.
Quadro hatch lock for motorhomes and caravans, white
The Quadro lock secures storage hatches, external lockers and service doors on motorhomes and caravans. Turning the handle 180° not only locks the hatch but also pulls it onto its seal, so it sits tightly against the bodywork. The set is complete: it includes the lock, a cylinder and 2 keys.
Key features
- Seal compression – a 180° turn of the handle pulls the hatch 6 mm onto its seal.
- Flush handle – when closed, the handle lies flat in its housing with no protruding edges.
- Weatherproof and corrosion-resistant – suitable for exterior mounting.
- For 26–45 mm walls – fits typical hatches and walls of motorhomes and caravans.

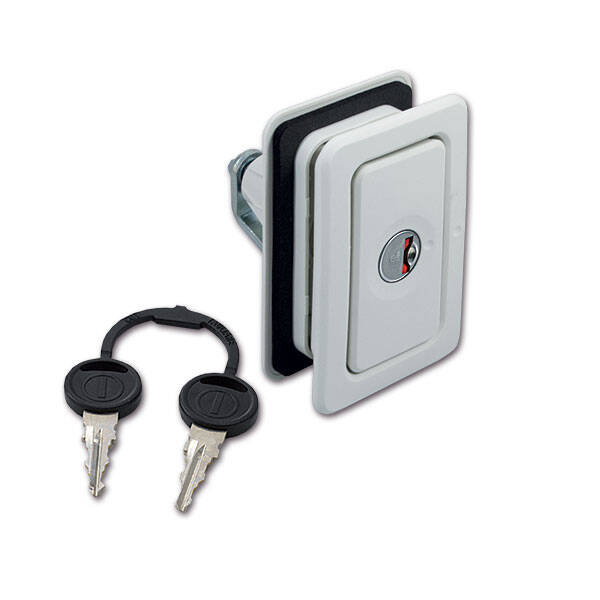

- Supplied with keys – cylinder and 2 keys included, ready to install.
Technical data
| Parameter | Value |
|---|---|
| Product code | SRT2015B |
| Type | compression lock for hatches and service doors |
| Model | Quadro |

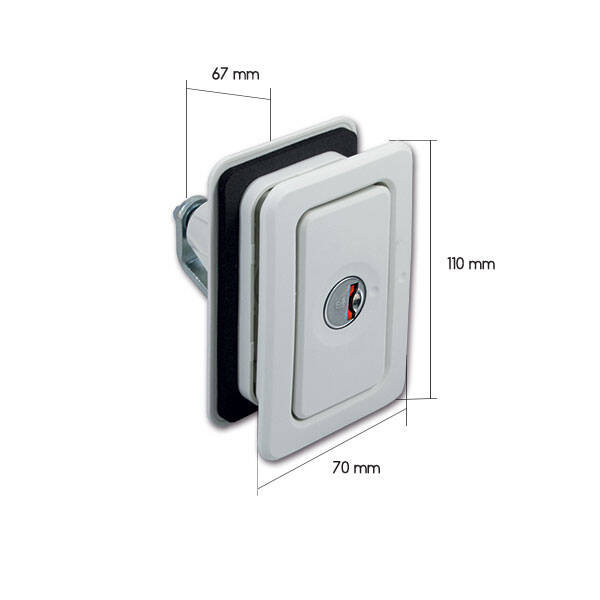

| Front dimensions | 70 x 110 mm |
| Depth | 67 mm |
| Wall thickness | 26–45 mm |
| Seal compression | 6 mm (180° handle turn) |
| Locking | key-operated cylinder |
| Material | plastic, metal |
| Colour | white |
| Package contents | lock, cylinder, 2 keys |
Applications
Quadro-type locks are factory-fitted in motorhomes and caravans from brands such as Challenger, Chausson, Caravelair, Autostar and Benimar. Before ordering, compare the 70 x 110 mm front dimensions and the wall thickness with your existing lock.
Frequently asked questions
Are keys included?
Yes. The set includes the lock, a cylinder and 2 keys.
What hatch thickness does the lock fit?
The lock is designed for walls and hatches from 26 to 45 mm thick.
