RAPTOR Bridge kit Ducato driver's side
In order to achieve maximum performance from the lithium battery, the vehicle system must also be adapted. This is why RAPTOR Bridge was developed, an alternative paralleliser that optimizes the connection between the engine battery and the services battery and brings four key advantages
• it creates a simplified and professional parallel connection between the services battery and the engine battery• it channels the energy generated by the alternator onto a dedicated line, bypassing the motor home's control unit and protecting it from possible overloads• if installed with cables of the correct cross-section, it allows higher currents to flow, shortening charging times by reducing the voltage drop at the battery poles• optimises the work done by a possible booster, even in the presence of a smart alternator

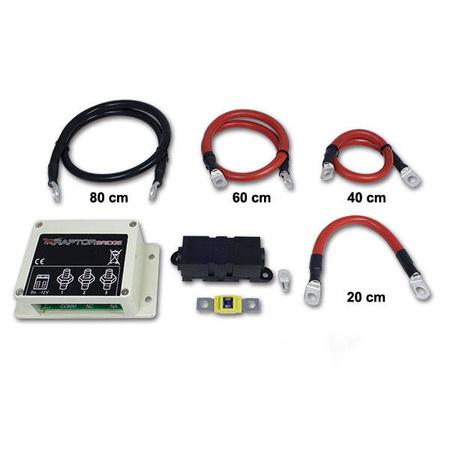

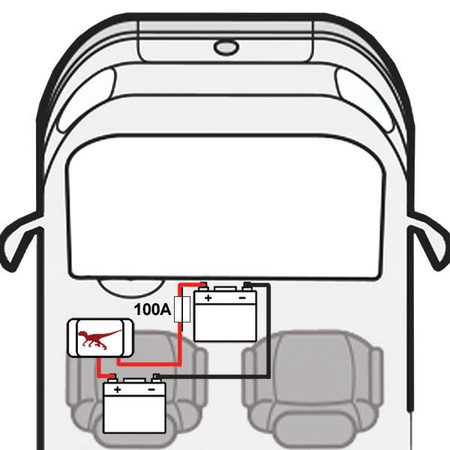

The installation kit for Fiat DUCATO on the driver's side includes everything needed to connect a services battery installed under the driver's seat, and includes
• 1 RAPTOR Bridge• 1 Ø 35 mm red cable 20 cm long with 10 mm eyelets• 1 Ø 35 mm red cable 40 cm long with 10 mm eyelets• 1 red cable Ø 35 mm 60 cm long with 10 mm eyelets• 1 black cable Ø 35 mm long 80 cm end sleeved with 10 mm eyelets• 1 megaval fuse holder with 100 A fuse• 1 cable lug with 10 mm eyelet
